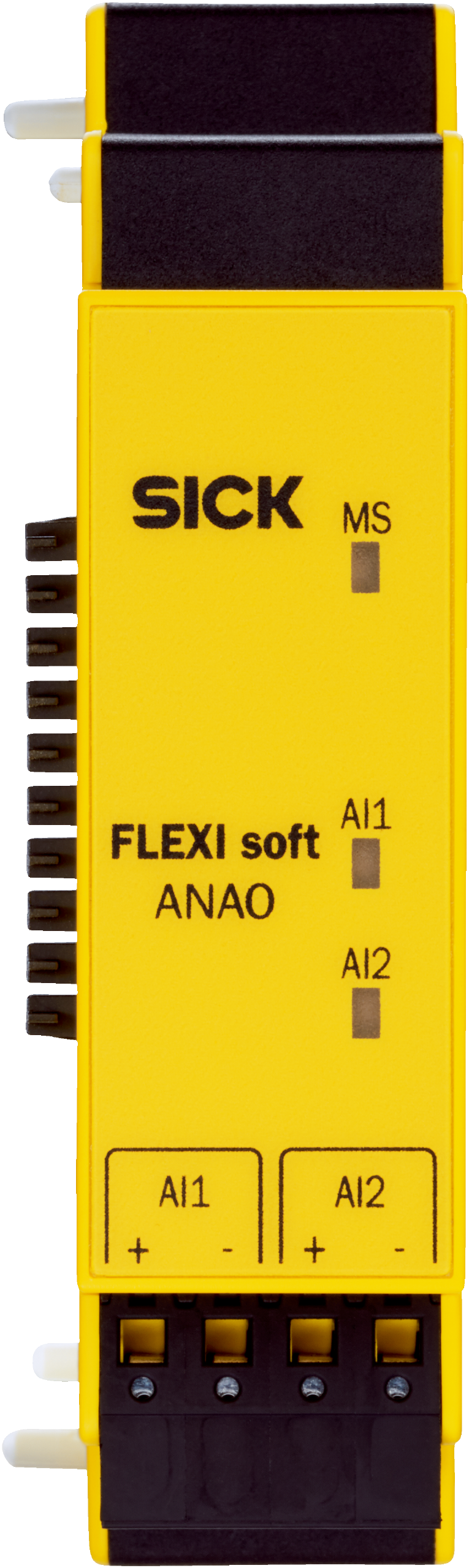

Safety controllers | Flexi Soft | FX3-ANA020002 | Module: Analog input module | Connection type: Plug-in spring terminals | Protective coating for more challenging ambient conditions: no
Module
Analog input module
Configuration method
Via software (Flexi Soft Designer)
Safety integrity level
SIL 3 (IEC 61508)
Category
Category 4 (EN ISO 13849)
Performance level
PL e (EN ISO 13849)
PFHD(mean probability of a dangerous failure per hour)
0.166 x 10-9
TM(mission time)
20 years (EN ISO 13849-1)
Limit value monitoring
✔
Signal range detection
✔
Number of safe analog inputs
2
Connection type
Plug-in spring terminals
Protection class
III (EN 61140)
Voltage supply
Via FLEXBUS+
Internal power consumption
≤ 2 W1)
Input voltage
≤ 30 V DC
Input current
≤ 30 mA
Current measuring range
4 mA ... 20 mA
Current input measuring range
3.5 mA ... 20.5 mA2)3)
Input resistance
50 Ω
Dimensions (W x H x D)
22.5 mm x 96.5 mm x 120.6 mm
Weight
117 g (± 5 %)
Enclosure rating
IP20 (EN 60529)
Ambient operating temperature
–25 °C ... +55 °C
Storage temperature
–25 °C ... +70 °C
Air humidity
≤ 95 %, Non-condensing
ECLASS 5.0
27243001
ECLASS 5.1.4
27243101
ECLASS 6.0
27243101
ECLASS 6.2
27243101
ECLASS 7.0
27243101
ECLASS 8.0
27243101
ECLASS 8.1
27243101
ECLASS 9.0
27243101
ECLASS 10.0
27243101
ECLASS 11.0
27243101
ECLASS 12.0
27243101
ETIM 5.0
EC001449
ETIM 6.0
EC001449
ETIM 7.0
EC001449
ETIM 8.0
EC001449
UNSPSC 16.0901
32151705
EU declaration of conformity
✔
UK declaration of conformity
✔
ACMA declaration of conformity
✔
China RoHS
✔
CCC certificate
✔
UK-Type-Examination approval
✔
cULus certificate
✔
cTUVus certificate
✔
S Mark certificate
✔
EC-Type-Examination approval
✔
