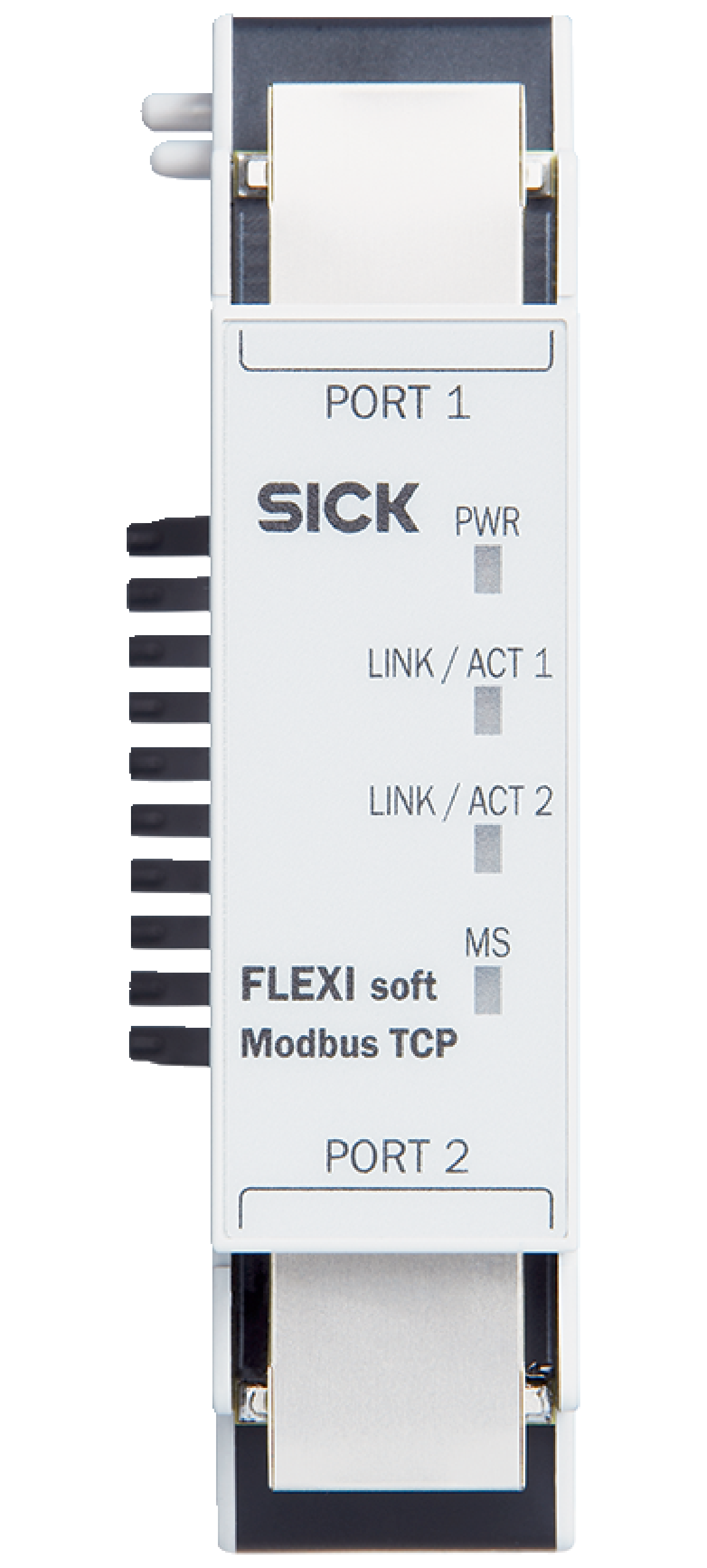

Safety controllers | Flexi Soft | FX0-GMOD00030 | Module: Gateway | Fieldbus, industrial network: Modbus® TCP, TCP/IP sockets | Connection type: 2 × RJ45 socket | Protective coating for more challenging ambient conditions: no | Firmware: V2.11
Module
Gateway
Configuration method
Via software (Flexi Soft Designer, Safe EFI-pro System: Safety Designer)
Specialty
This is a replacement device with an older firmware for replacing the gateway on existing systems. For new systems, please use gateway 1044073.
Firmware
V2.11
Fieldbus, industrial network
Modbus® TCP, TCP/IP sockets
Integrated Ethernet switch
3-port layer-2 managed switch with Auto-MDI-X for automatic detection of crossed Ethernet cable
Data transmission rate
10 Mbit/s, 10Base-T100 Mbit/s, 100Base-Tautosensing
Connection type
2 × RJ45 socket
Protection class
III (EN 61140)
Voltage supply
Via FLEXBUS+
Internal power consumption
≤ 2.4 W1)
Dimensions (W x H x D)
22.5 mm x 96.5 mm x 120.6 mm
Weight
125 g (± 10 %)
Enclosure rating
IP20 (EN 60529)
Ambient operating temperature
–25 °C ... +55 °C
Storage temperature
–25 °C ... +70 °C
Air humidity
≤ 95 %, Non-condensing
ECLASS 5.0
27243001
ECLASS 5.1.4
27243101
ECLASS 6.0
27243101
ECLASS 6.2
27243101
ECLASS 7.0
27243101
ECLASS 8.0
27243101
ECLASS 8.1
27243101
ECLASS 9.0
27243101
ECLASS 10.0
27243101
ECLASS 11.0
27243101
ECLASS 12.0
27243101
ETIM 5.0
EC001449
ETIM 6.0
EC001449
ETIM 7.0
EC001449
ETIM 8.0
EC001449
UNSPSC 16.0901
32151705
EU declaration of conformity
✔
UK declaration of conformity
✔
ACMA declaration of conformity
✔
China RoHS
✔
CCC certificate
✔
cULus certificate
✔
S Mark certificate
✔
Information according to Art. 3 of Data Act (Regulation EU 2023/2854)
✔
