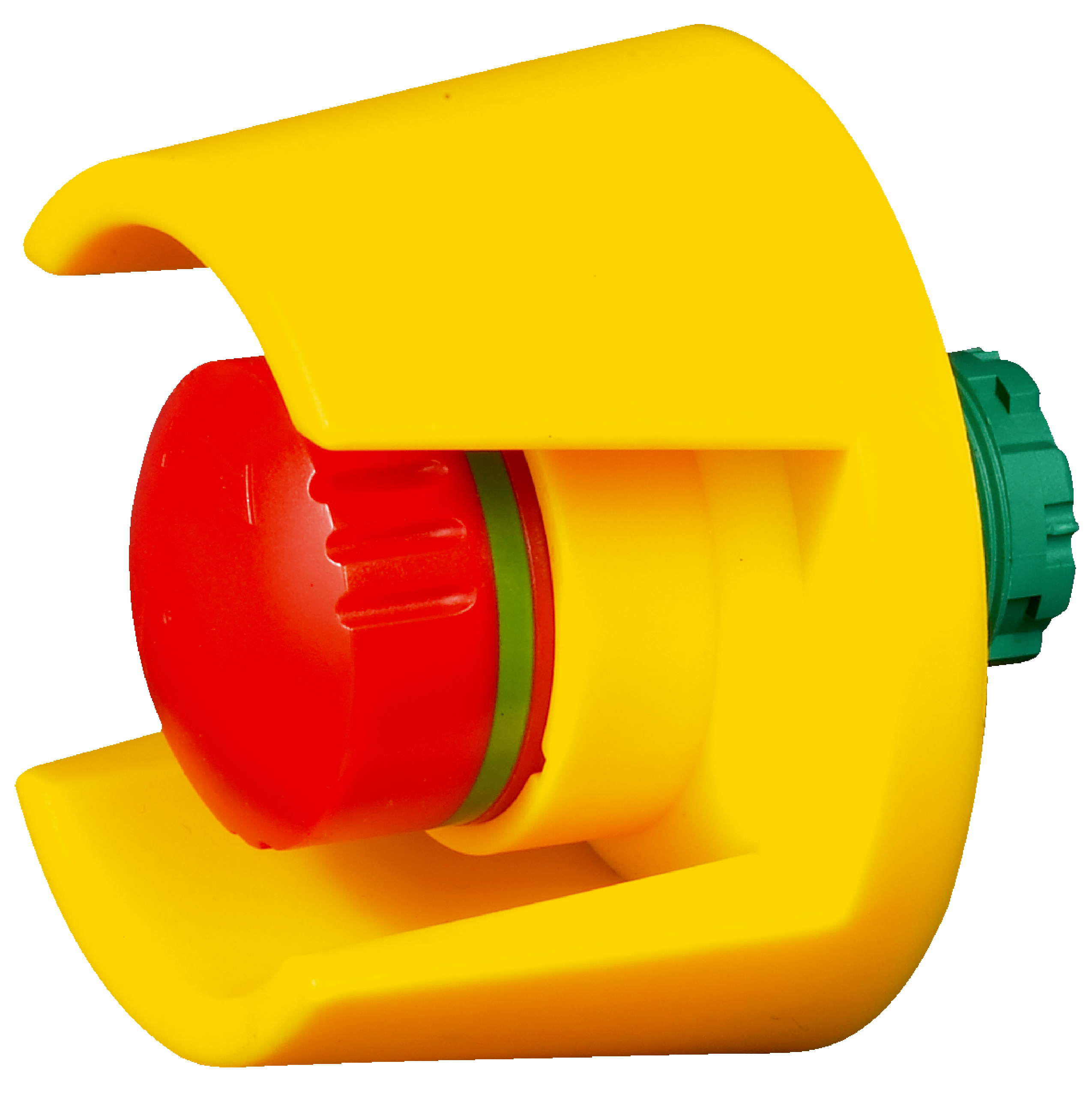

Signal transmitters | Optical signal transmitters | ES21-AT1140 | System part: Pushbutton | Emergency stop pushbutton (illuminable): no | Protective collar: yes | Obstruction protection: yes
Actuation directions
1
Obstruction protection
✔
Release type
Rotary release
Protective collar
✔
Safe series connection
None, only individual wiring (with diagnostics)
Switching principle
Slow action switching element
Dimensions
67 mm x 61 mm
Mounting diameter
22 mm
Poids
80 g
Housing material
Plastic
Mechanical life
50.000 switching cycles
Enclosure rating
IP65 (IEC 60529)
Ambient operating temperature
–30 °C ... +70 °C
Storage temperature
–50 °C ... +85 °C
EU declaration of conformity
✔
UK declaration of conformity
✔
cULus certificate
✔
Third party certificate
✔
ECLASS 5.0
27371228
ECLASS 5.1.4
27371228
ECLASS 6.0
27371244
ECLASS 6.2
27371244
ECLASS 7.0
27371244
ECLASS 8.0
27371244
ECLASS 8.1
27371244
ECLASS 9.0
27371244
ECLASS 10.0
27371291
ECLASS 11.0
27371291
ECLASS 12.0
27371291
ETIM 5.0
EC002034
ETIM 6.0
EC002034
ETIM 7.0
EC002034
ETIM 8.0
EC002034
UNSPSC 16.0901
39121545
