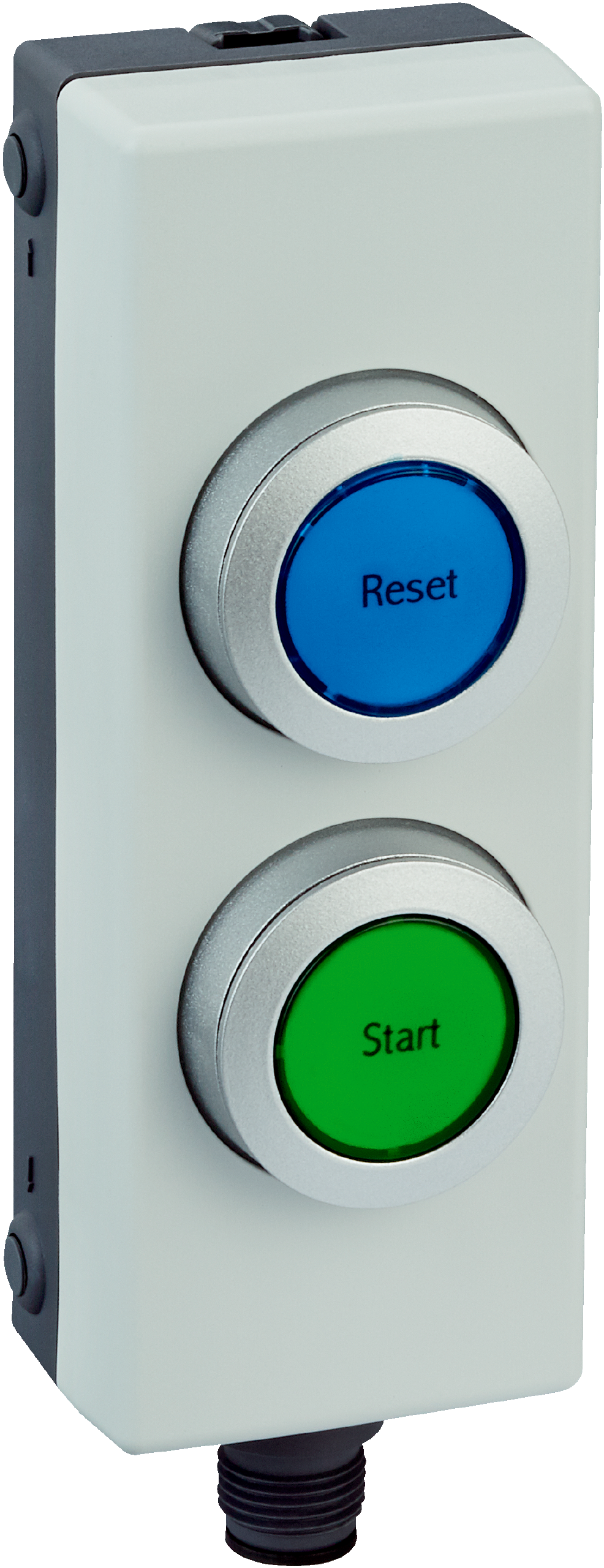

Safety switches | ER12 | ER12-SD5E8 | Switch type: Dual pushbutton | N/O contacts: 2 | Connection type Detail: Plug connector, M12, 8-pin | Suitable for muting applications (with UE403): no | Suitable for reset/override applications (with deTec4): no | Suitable for muting applications (with DMM4): no | Items supplied: Including brackets, 6 cover caps (blue, black, green, yellow, 2x transparent) and 8 labeled uses (START, RESET, ON, LOCK, UNLOCK, RESET/OVERRIDE, OVERRIDE, TEACH)
Pushbuttons (illuminable)
✔
Actuation directions
1
Dimensions (W x H x D)
40 mm x 123 mm x 36 mm
Items supplied
Including brackets, 6 cover caps (blue, black, green, yellow, 2x transparent) and 8 labeled uses (START, RESET, ON, LOCK, UNLOCK, RESET/OVERRIDE, OVERRIDE, TEACH)
B10dparameter
1 x 106switching cycles
Safe series connection
None, only individual wiring (with diagnostics)
Connection type
Plug connector, M12, 8-pin
Coupling nut material
PBT
Protection class
III (EN 61140)
Switching principle
Slow action switching element
N/O contacts
2
Rated operating current (voltage)
5 mA ... 100 mA (5 V ... 30 V)
Contact material
AgNi, 5 µm gold plated
Supply voltage Vs
30 V AC/DC
Power consumption
14 mA (24 V DC)
Dimensions
40 mm x 123 mm x 36 mm
Weight
116 g
Housing material
PBT
Reset pushbutton
1 x 106switching cycles
Enclosure rating
IP65 (EN 60529)
Ambient operating temperature
–25 °C ... +70 °C
Storage temperature
–25 °C ... +80 °C
EU declaration of conformity
✔
UK declaration of conformity
✔
Moroccan declaration of conformity
✔
China RoHS
✔
cULus certificate
✔
ULus approval
✔
ECLASS 5.1.4
27371290
ECLASS 6.0
27371290
ECLASS 7.0
27371290
ECLASS 8.0
27371290
ECLASS 9.0
27371290
ECLASS 10.0
27371246
ECLASS 11.0
27371246
ECLASS 12.0
27371246
ECLASS 13.0
27371246
ECLASS 14.0
27371246
ECLASS 15.0
27371246
ETIM 6.0
EC000029
ETIM 7.0
EC000029
ETIM 8.0
EC000029
ETIM 9.0
EC000029
ETIM 10.0
EC000029
UNSPSC 091201.0
39121500
UNSPSC 100501.0
39121500
UNSPSC 111201.0
39121500
UNSPSC 120901.0
39121500
UNSPSC 131201.0
39122216
UNSPSC 140801.0
39122216
UNSPSC 151101.0
39122216
UNSPSC 160901.0
39122216
UNSPSC 171001.0
39122216
UNSPSC 180801.0
39122216
UNSPSC 190501.0
39122216
UNSPSC 200601.0
39122216
UNSPSC 210901.0
39122216
UNSPSC 220601.0
39122216
UNSPSC 230701.0
39122216
UNSPSC 240301.0
39122216
UNSPSC 250901.0
39122216
UNSPSC 260801.0
39122216
