3× 400 V AC 3× 575 V AC RC For DIN-rail mounting use Art.-No. 20900 adapter feet Suppressors for other voltages, frequencies, and motor ratings available...
Weight
0,040 kg
Country of origin
CZ
Model designation
RC 3 BU/022-575/4
Power frequency
50 ... 60 Hz
Input voltage AC
575 V
Connection cross-section solid max.
0,5 mm²
Length single strands
70 mm
Connection information
Single strands
Flame resistance
flame retardant
Material housing
Plastic
Combustibility class housing (UL94)
V-0
Material potting compound
2-component epoxy

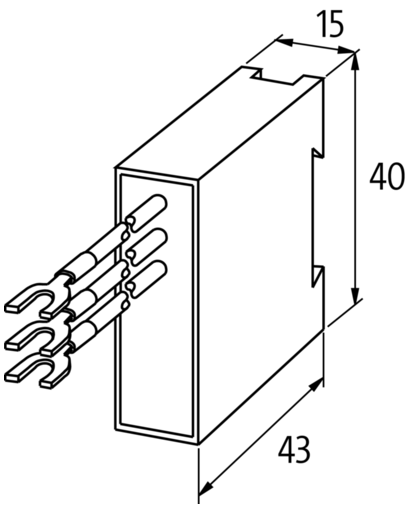

Height
43 mm
Width
15 mm
Depth
40 mm
