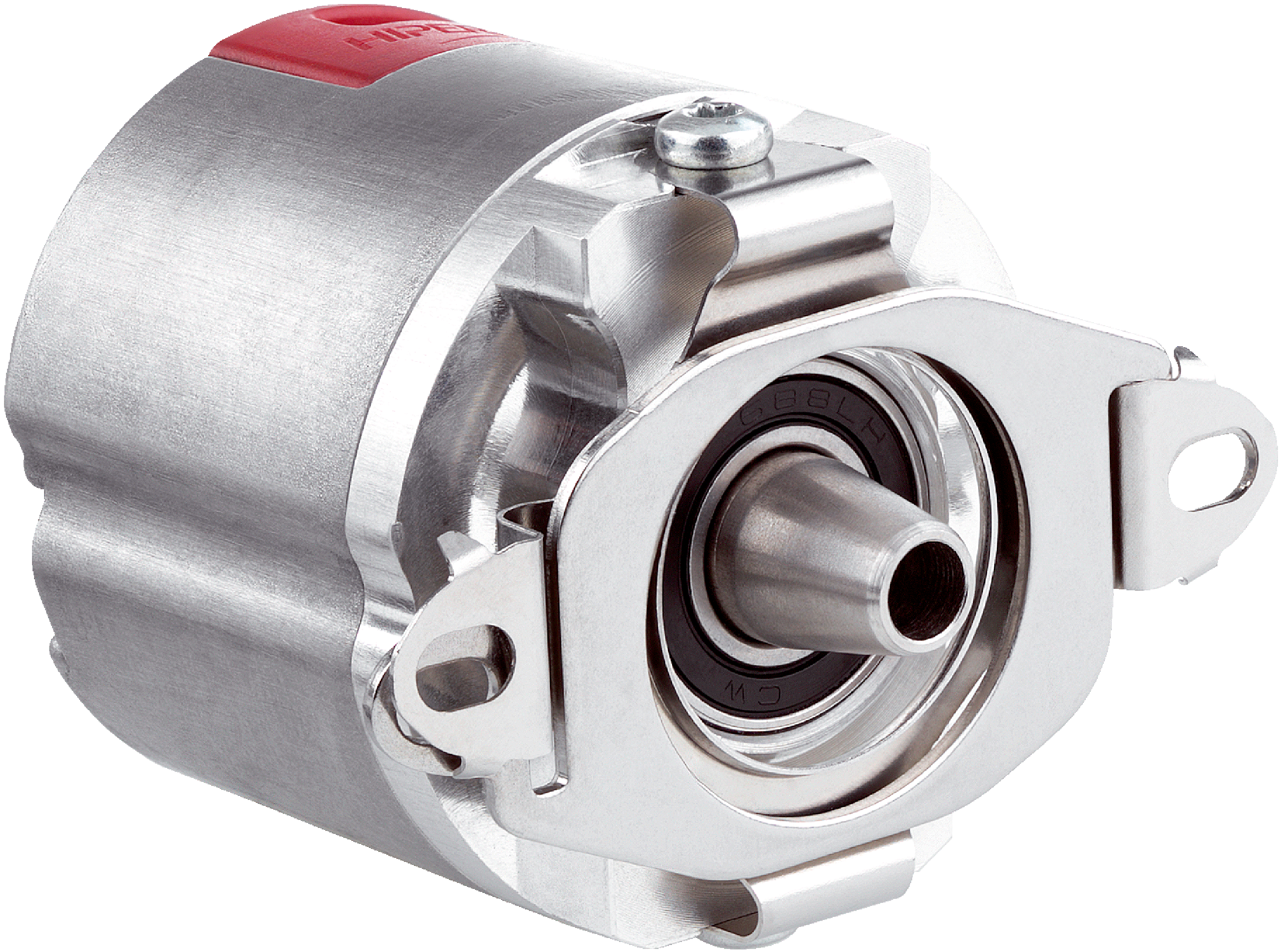

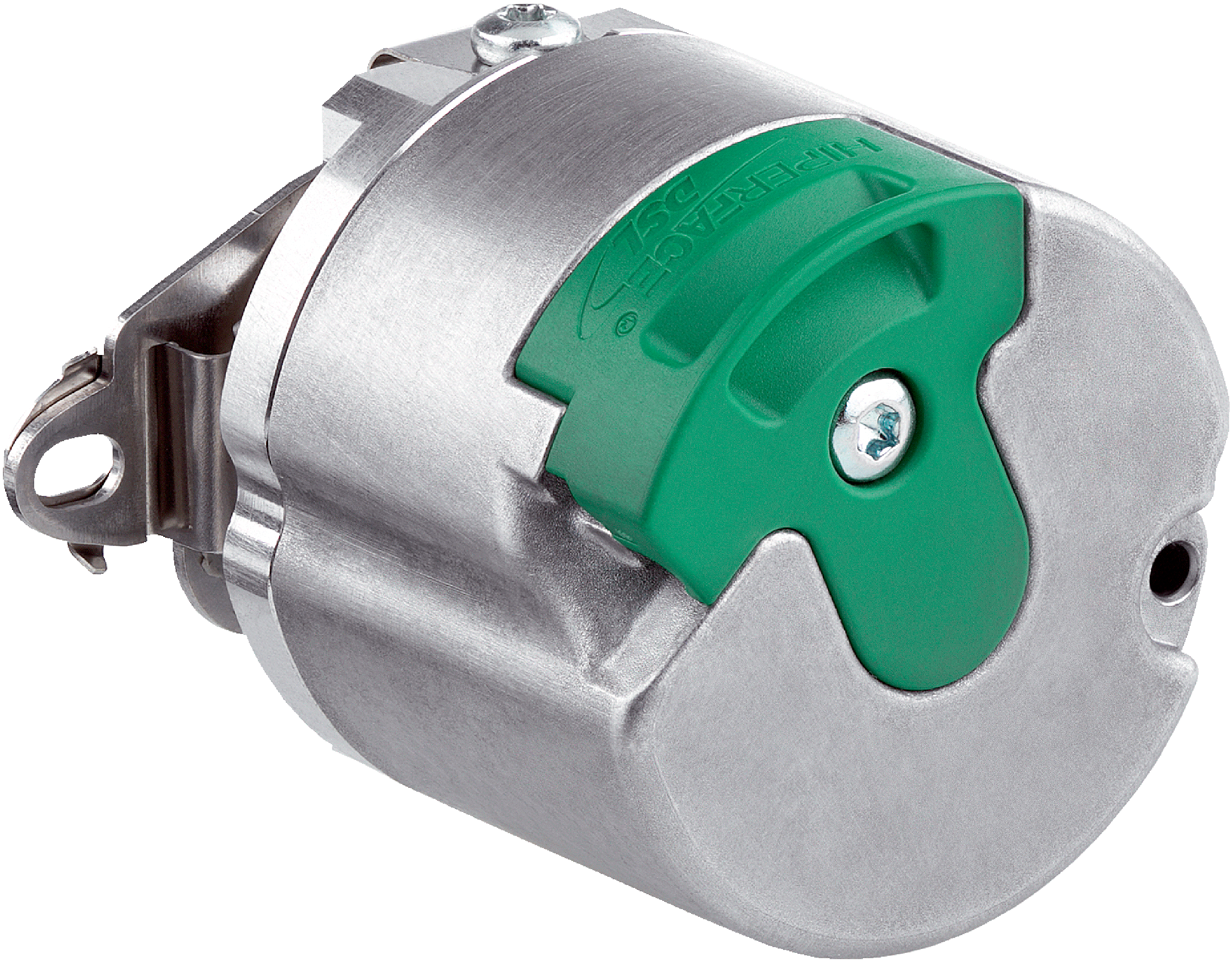

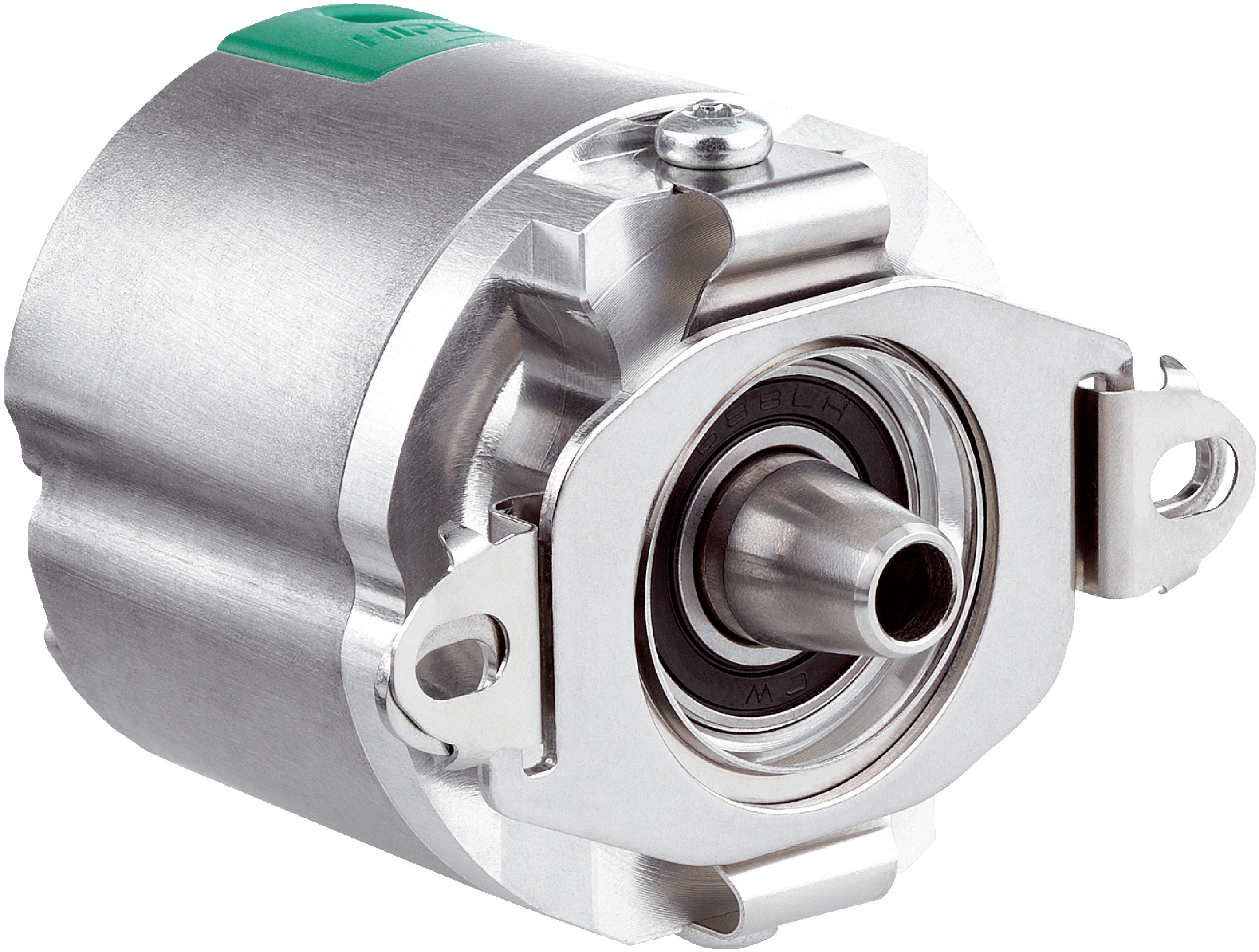

Safe motor feedback systems | EDS/EDM35-S | EDS35-2ZF0A024A | Communication interface: HIPERFACE DSL® | Model: Absolute Singleturn | Type: For integration | Resolution per revolution: 24 bit | Safety system: yes | Mechanical design: Tapered shaft | Connection type: Male connector, 4-pin | Measuring range: ± 50 g | Technology: Optical | Operating temperature range: –40 °C ... +110 °C | Vibration analysis: Attributes Kurtosis, a-RMS, Peak to peak | Measuring range: 0 –100% relative humidity (% RH) | Items supplied: M3 mounting screws for stator coupling not included with delivery. | Specialty: Integrated sHub functionality for vibration and moisture measurement
Specialty
Integrated sHub functionality for vibration and moisture measurement
Items supplied
M3 mounting screws for stator coupling not included with delivery.
Safety integrity level
SIL 2 (IEC 61508), SILCL3 (IEC 62061)1)
Category
3 (EN ISO 13849-1:2015)
Systematic suitability
SC 3 (IEC61508)
Test rate
24 h
Maximum demand rate
216 µs
Performance level
PL d (EN ISO 13849-1:2015)
Basis for safety function
Safe singleturn absolute position
Safety-related resolution
13 bits
Maximum difference between Safe Position 1 and Safe Position 2
3 increments
PFH (mean probability of a dangerous failure per hour)
33 x 10-92)
TM(mission time)
20 years
Safety-related accuracy
0.135°3)
Resolution per revolution
24 bit
System accuracy
± 25 ″1)
Signal noise (σ)
± 1 ″2)
Number of the absolute ascertainable revolutions
1
Available memory area
8,192 Byte
Measurement principle
Optical
Number of axis
2
Bandwidth
Max. 7 kHz
Vibration analysis
Attributes Kurtosis, a-RMS, Peak to peak
Measuring range
0 –100% relative humidity (% RH)
Accuracy
Typ. ± 2 % RH
Temperature
–40 °C ... +125 °C, ± 0.6 °C, typ.
Measuring step
0,1 % RH / digit; 0,01 °C / digit
Code sequence
Increasing, when turning the shaft For clockwise rotation, looking in direction “A” (see dimensional drawing)
Communication interface
HIPERFACE DSL®
Initialization time
≤ 500 ms1)
Measurement external temperature resistance
32-bit value, without prefix (1 Ω) 0 ... 209.600 Ω2)
Connection type
Male connector, 4-pin
Supply voltage
7 V ... 12 V
Warm-up time voltage ramp
Max. 180 ms1)
Current consumption
≤ 150 mA2)
Shaft version
Tapered shaft
Flange type / stator coupling
Stator coupling
Dimensions
See dimensional drawing
Weight
≤ 100 g
Moment of inertia of the rotor
5 gcm²
Operating speed
≤ 12,000 min⁻¹
Angular acceleration
≤ 250,000 rad/s²
Start up torque
≤ 0.4 Ncm, +20 °C
Permissible movement static
± 1 mm, axial1)
Permissible movement dynamic
± 0.025 mm, radial2)
Life of ball bearings
50,000 h at 6,000 min-1(at a flange temperature of 70 °C)
Operating temperature range
–40 °C ... +110 °C1)
Storage temperature range
–40 °C ... +125 °C, without package
Relative humidity/condensation
90 %, Condensation not permitted
Resistance to shocks
100 g, 6 ms (according to EN 60068-2-27)
Frequency range of resistance to vibrations
50 g, 10 Hz ... 2,000 Hz (EN 60068-2-6)
EMC
According to EN 61000-6-2: 2016, EN 61000-6-4: 2006, IEC 6100-6-7: 20142)
Enclosure rating
IP30, When cover is closed and mating connector is attached (IEC 60529-1)3)
Operating height (above sea level)
2,000 m
