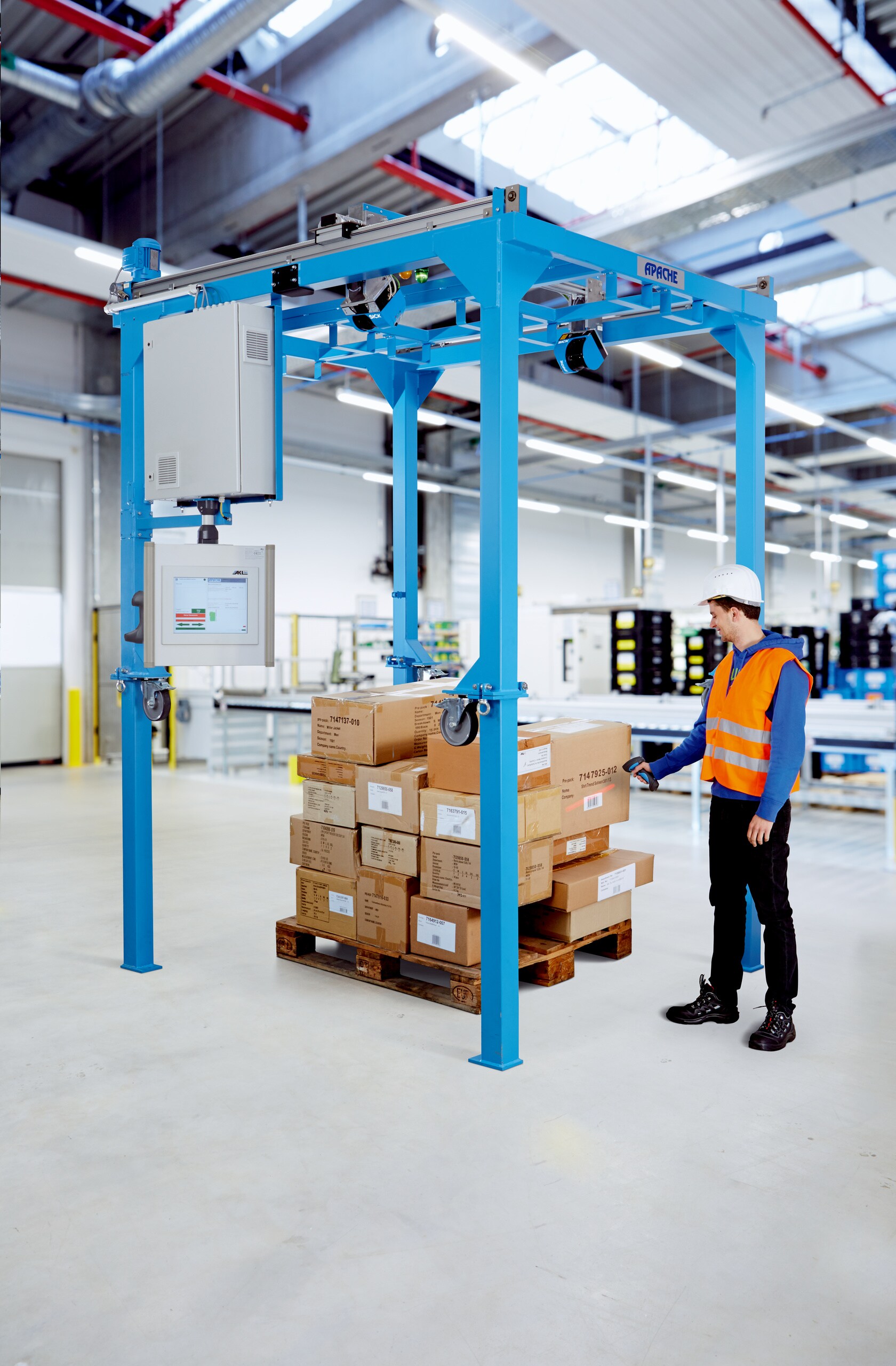

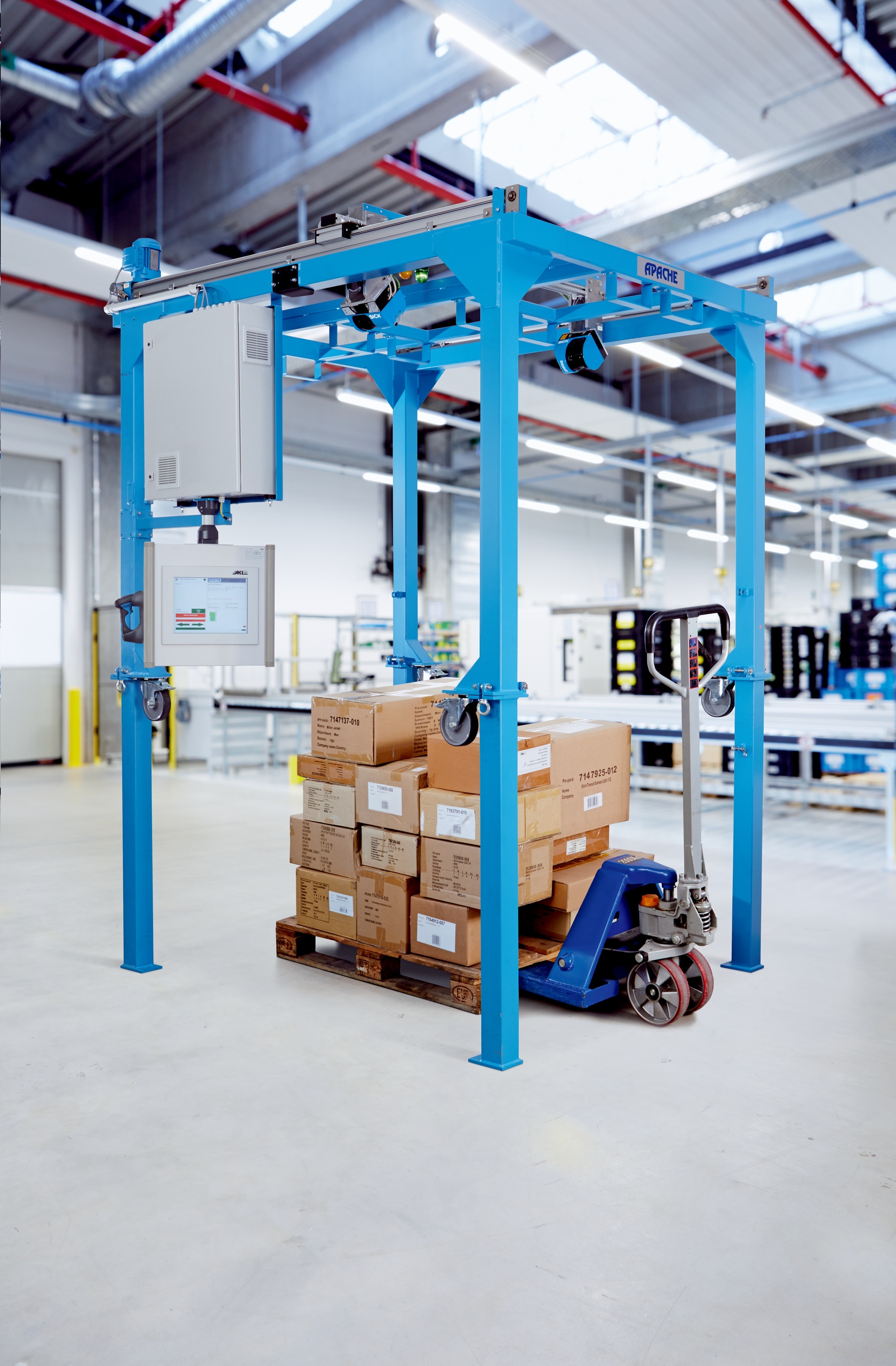

Track and trace systems | DWS Pallet | DWS Pallet | Scope of delivery: DWS Pallet system with frame and SICK sensor package, LMS500 (2 x), DFS60, IME12 (3 x), DOS-2312-G, IDM160BT RS-232 Kit, handheld scanner (optional), platform scale (optional), connection cables and frame options depending on application | Maximum object size: 180 cm x 200 cm x 250 cm | Accuracy of object coverage: ± 2 cm x ± 2 cm x ± 1 cm
Products by tasks
Measuring - Dimension, contour and volumeMeasuring - WeightIdentifying - 1D codeIdentifying - 2D code
Applications
Dimensioning of objects on pallets
MTBF
40,000 h
Exclusios
Measurement of non transparent (opaque) and dimensionally stable objects only
Object infeed and outfeed
Manual
Legal-for-trade
Certified according OIML R 129, MID 009, and NAWI
Dimensions, system (L x W x H)
3.2 m x 2.4 m x 3.35 m
Transport dimensions, system (L x W x H)
3.2 m x 2.4 m x 2.3 m
Measuring height
(≤ 2.5 m)
Measuring area of system
1.8 m x 2 m
Measurement area of platform scale
1.5 m x 1.25 m
Supply voltage
230 Valternative 110 V (typical)
Mains frequency
50 Hzat 230 V60 Hzat 110 V
PC platform
APACHE p8 with Windows XP embedded
Panel PC
Touch panel for data input and visualization of measurement results
Protrusions
Protrusions on the object bigger than 4 cm in length and width, or 1 cm in height are included for the measurement of the smallest enclosing cuboid
Code types
1D2DPDF417Aztec4-stateMaxi-Code
Travel speed of measurement axis
22 m/min
Minimum object size (L/W/H)
20 cm x 20 cm x 10 cm
Maximum object size (L/W/H)
180 cm x 200 cm x 250 cm
Accuracy of object coverage (L/W/H)
± 2 cm x ± 2 cm x ± 1 cm
Accuracy of scale
e = 0.5 kg
Allowed weight for legal-for-trade weighing
10 kg ... 2,000 kg
Certification
MID, OIMLNAWI
Authorizations
OIML R 129MID009NAWILegal-for-trade approvals
Type
RS-232/RS-422
Data transmission rate
10/100/1,000 Mbit/s
Protocol
FTP
Electrical connection
RJ45, D-Sub
Number
1, 1
Optical indicators
Display unit with serial data interface (RS-232, RS-422, RS-485)
Identification
Robust IDM16x handheld barcode scanner fitted with a cable for all standard 1D barcodes, reading distance of up to 800 mm, minimum module width 0.076 mm (other handheld scanner types available upon request)
Ambient operating temperature
32 °F ... +104 °C
Permissible relative humidity
≤ 85 %, Non-condensing
Items supplied
DWS Pallet system with frame and SICK sensor packageLMS500 (2 x)DFS60IME12 (3 x)DOS-2312-GIDM160BT RS-232 KitHandheld scanner (optional)Platform scale (optional)Connection cables and frame options depending on application
ECLASS 5.1.4
27280190
ECLASS 6.0
27280190
ECLASS 7.0
27280190
ECLASS 8.0
27280190
ECLASS 9.0
27280190
ECLASS 10.0
27280190
ECLASS 11.0
27280190
ECLASS 12.0
27280190
ECLASS 13.0
27280190
ECLASS 14.0
27280190
ECLASS 15.0
27280190
ETIM 6.0
EC002550
ETIM 7.0
EC002550
ETIM 8.0
EC002550
ETIM 9.0
EC002550
ETIM 10.0
EC002550
UNSPSC 091201.0
43211701
UNSPSC 100501.0
43211701
UNSPSC 111201.0
43211701
UNSPSC 120901.0
43211701
UNSPSC 131201.0
43211701
UNSPSC 140801.0
43211701
UNSPSC 151101.0
43211701
UNSPSC 160901.0
43211701
UNSPSC 171001.0
43211701
UNSPSC 180801.0
43211701
UNSPSC 190501.0
43211701
UNSPSC 200601.0
43211701
UNSPSC 210901.0
43211701
UNSPSC 220601.0
43211701
UNSPSC 230701.0
43211701
UNSPSC 240301.0
43211701
UNSPSC 250901.0
43211701
UNSPSC 260801.0
43211701
