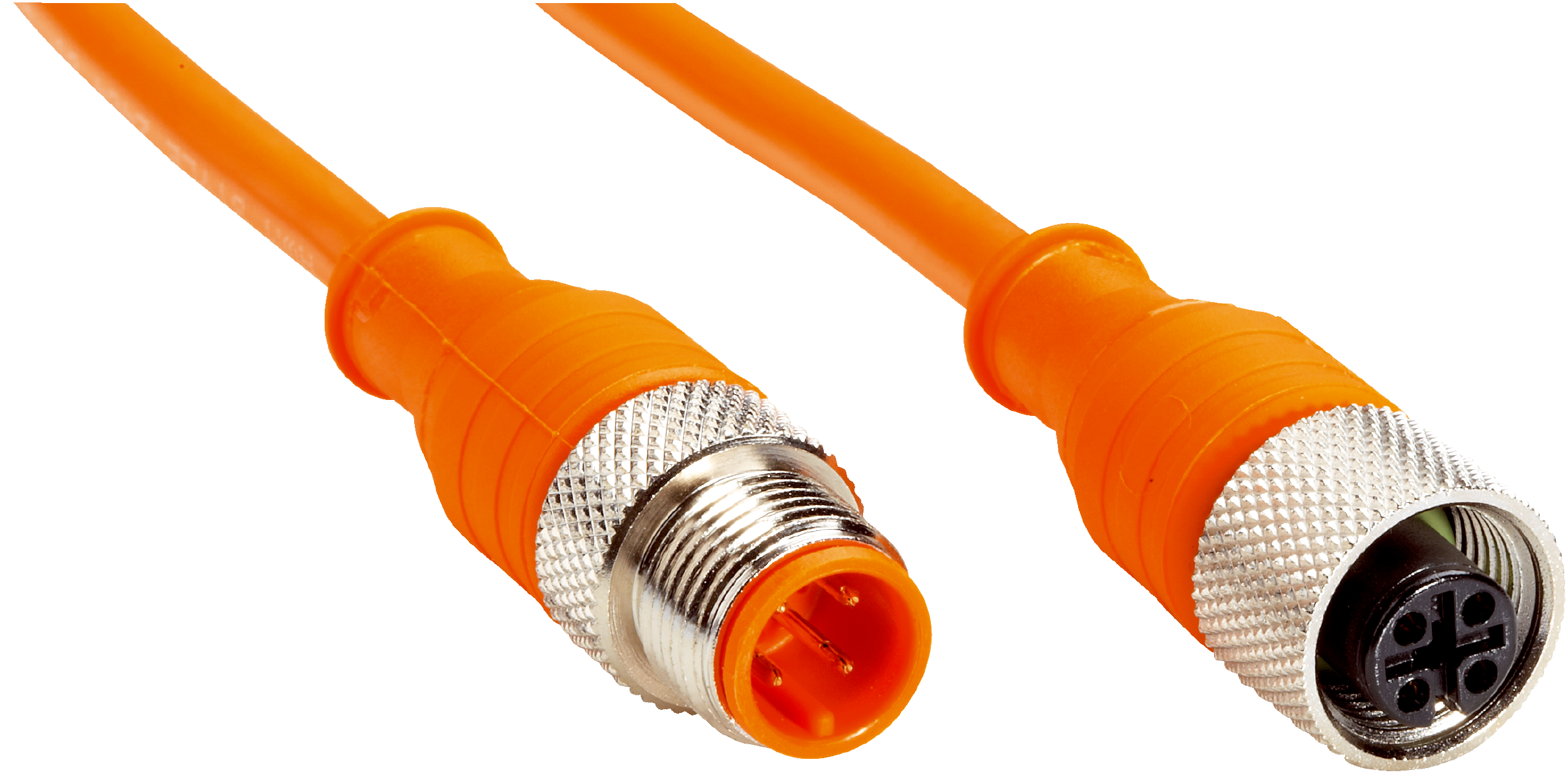

Connectors and cables | Other connectors and cables | DSL-1204-G02M | Description: Unshielded | Connection type head A: Female connector, M12, 4-pin, straight | Connection type head B: Male connector, M12, 4-pin, straight | Cable: 2 m, 4-wire, PVC
Connection type head A
Female connector, M12, 4-pin, straight
Connection type head B
Male connector, M12, 4-pin, straight
Connector material
TPU
Connector color
Orange
Locking nut material
CuZn, nickel-plated brass
Tightening torque
0.5 Nm
Cable
2 m, 4-wire, PVC
Jacket material
PVC
Jacket color
Orange
Cable diameter
5 mm
Conductor cross section
0.25 mm²
Shielding
Unshielded
Current loading
4 A
Enclosure rating
IP67
Flexible use
+5 °C ... +80 °C
Stationary position
–40 °C ... +80 °C
Head
–25 °C ... +80 °C
ECLASS 5.0
19030312
ECLASS 5.1.4
19030312
ECLASS 6.0
27060304
ECLASS 6.2
27060304
ECLASS 7.0
27060304
ECLASS 8.0
27060304
ECLASS 8.1
27060304
ECLASS 9.0
27060304
ECLASS 10.0
27060304
ECLASS 11.0
27060304
ECLASS 12.0
27060304
ETIM 5.0
EC000830
ETIM 6.0
EC000830
ETIM 7.0
EC003249
ETIM 8.0
EC003249
UNSPSC 16.0901
26121604
