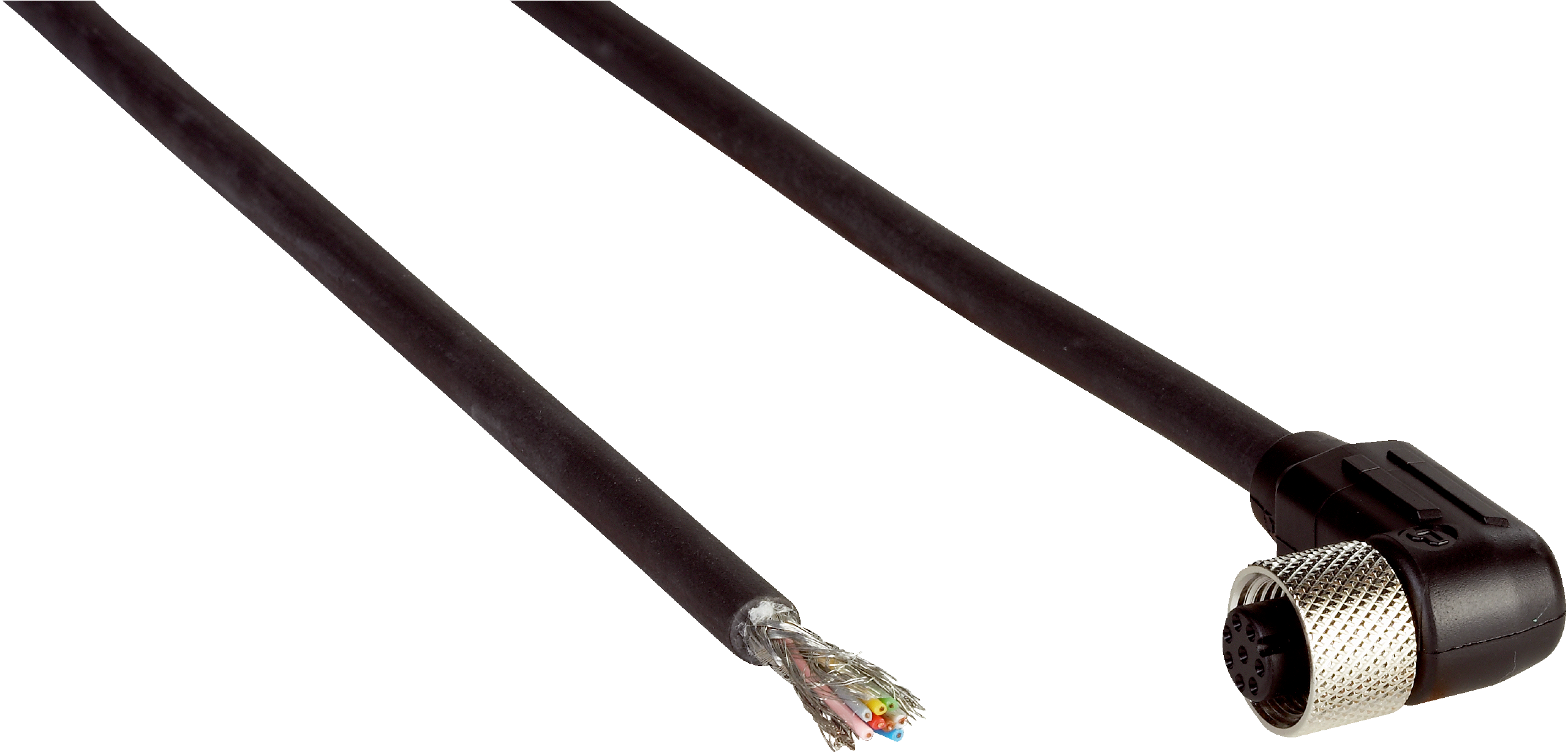

Connectors and cables | Other connectors and cables | DOL-1208-W02MAS01 | Description: Sensor/actuator cable, shielded | Connection type head A: Female connector, M12, 8-pin, angled | Connection type head B: Flying leads | Signal type: Sensor/actuator cable | Cable: 2 m, 8-wire, PUR, halogen-free | Connection systems: Flying leads
Connection type head A
Female connector, M12, 8-pin, angled
Connection type head B
Flying leads
Connection type
Flying leads
Connector material
TPU
Connector color
Black
Locking nut material
Zinc die-cast, nickel-plated
Cable
2 m, 8-wire, PUR, halogen-free
Jacket material
PUR, halogen-free
Jacket color
Black
Conductor cross section
0.25 mm²
Shielding
Shielded
Current loading
1.5 A
Signal type
Sensor/actuator cable
EU declaration of conformity
✔
UK declaration of conformity
✔
China RoHS
✔
ECLASS 5.1.4
27069090
ECLASS 6.0
27069090
ECLASS 7.0
27069090
ECLASS 8.0
27069090
ECLASS 9.0
27069090
ECLASS 10.0
27069090
ECLASS 11.0
27069090
ECLASS 12.0
27069090
ECLASS 13.0
27069090
ECLASS 14.0
27069090
ECLASS 15.0
27069090
ETIM 6.0
EC002584
ETIM 7.0
EC002584
ETIM 8.0
EC002584
ETIM 9.0
EC002584
ETIM 10.0
EC002584
UNSPSC 091201.0
39121421
UNSPSC 100501.0
39121421
UNSPSC 111201.0
39121421
UNSPSC 120901.0
39121421
UNSPSC 131201.0
39121421
UNSPSC 140801.0
39121421
UNSPSC 151101.0
39121421
UNSPSC 160901.0
39121421
UNSPSC 171001.0
39121421
UNSPSC 180801.0
39121421
UNSPSC 190501.0
39121421
UNSPSC 200601.0
39121421
UNSPSC 210901.0
39121421
UNSPSC 220601.0
39121421
UNSPSC 230701.0
39121421
UNSPSC 240301.0
39121421
UNSPSC 250901.0
39121421
UNSPSC 260801.0
39121421
