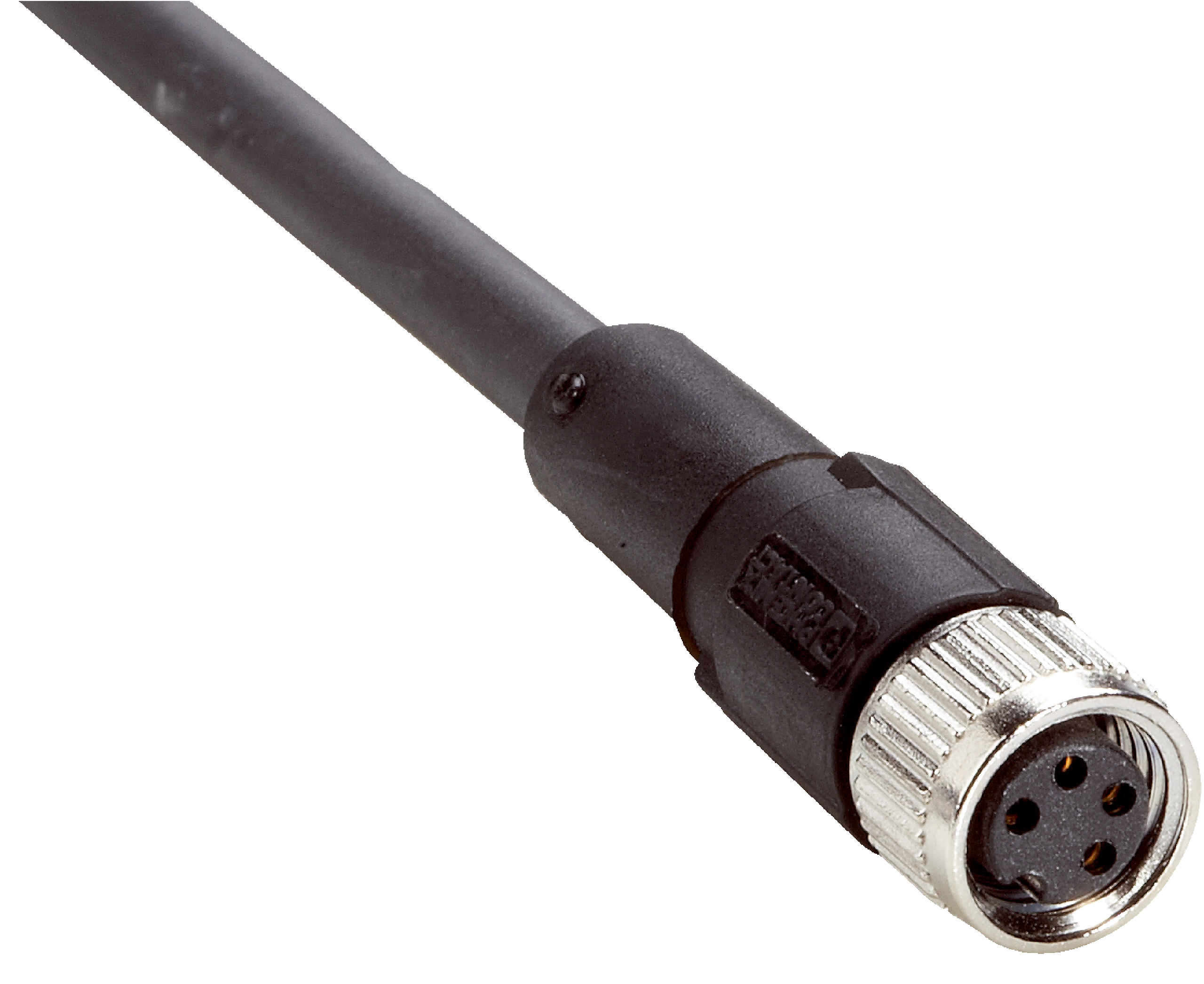

Connectors and cables | Other connectors and cables | DOL-0804-G05MAC | Description: Shielded | Connection type head A: Female connector, M8, 4-pin, straight | Connection type head B: Flying leads | Cable: 5 m, 4-wire, PUR, halogen-free | Connection systems: Flying leads | Application: Zones with oils and lubricants, Drag chain operation
Connection type head A
Female connector, M8, 4-pin, straight
Connection type head B
Flying leads
Connection type
Flying leads
Connector material
TPU
Connector color
Black
Locking nut material
Zinc die-cast, nickel-plated
Tightening torque
0.2 Nm
Cable
5 m, 4-wire, PUR, halogen-free
Jacket material
PUR, halogen-free
Jacket color
Black
Cable diameter
5 mm
Conductor cross section
0.25 mm²
Shielding
Shielded
Bending cycles
≤ 4,000,000
Current loading
4 A
Traversing speed
3 m/s
Travelling distance
10 m
Acceleration
≤ 10 m/s²
Application
Zones with oils and lubricantsDrag chain operation
Enclosure rating
IP65/ IP67
Flexible use
–25 °C ... +80 °C
Stationary position
–40 °C ... +80 °C
Head
–25 °C ... +90 °C
ECLASS 5.0
19030312
ECLASS 5.1.4
19030312
ECLASS 6.0
27060304
ECLASS 6.2
27060304
ECLASS 7.0
27060304
ECLASS 8.0
27060304
ECLASS 8.1
27060304
ECLASS 9.0
27060304
ECLASS 10.0
27060304
ECLASS 11.0
27060304
ECLASS 12.0
27060304
ETIM 5.0
EC000830
ETIM 6.0
EC000830
ETIM 7.0
EC003249
ETIM 8.0
EC003249
UNSPSC 16.0901
26121604
