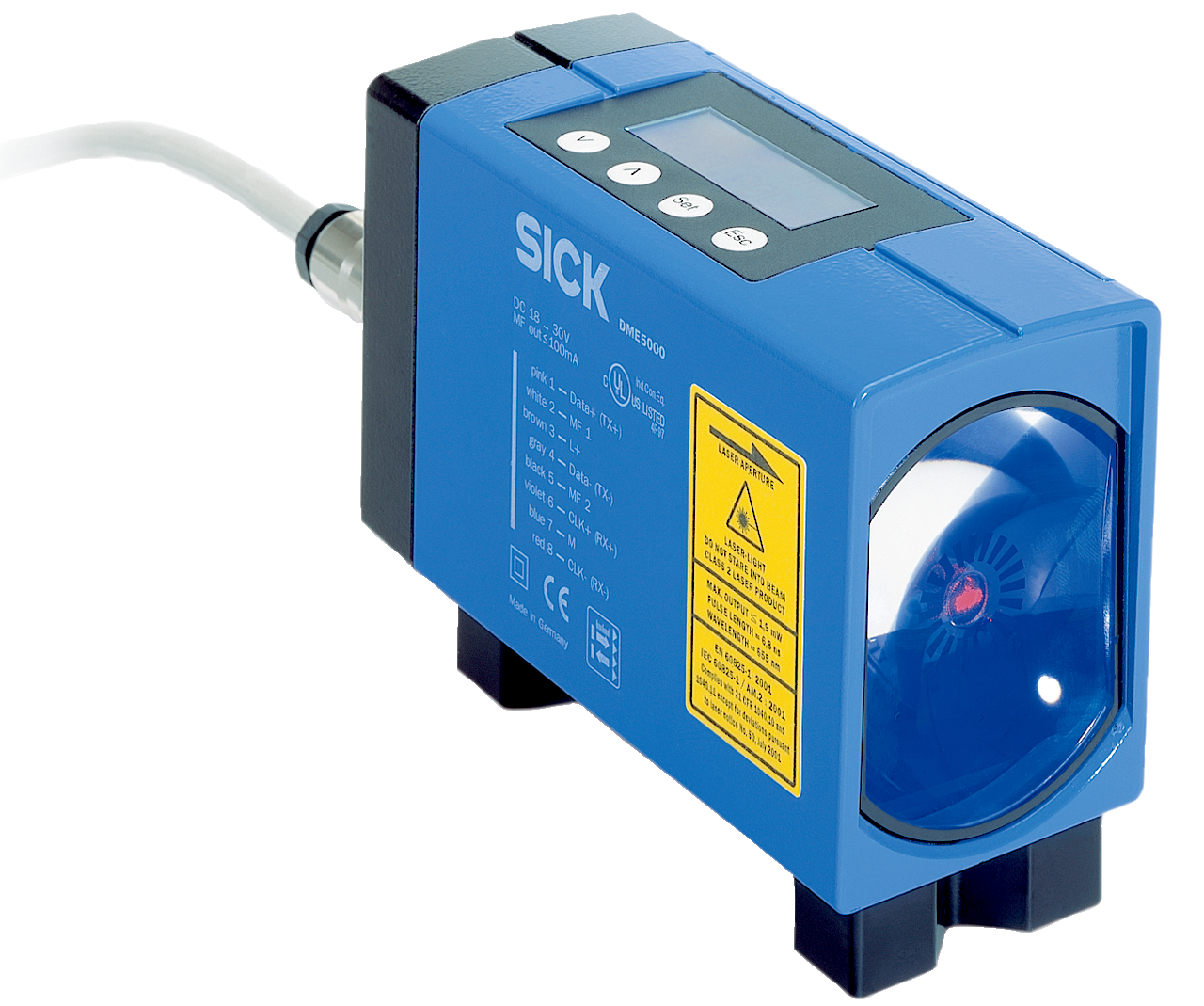

Laser distance sensors | DME5000 | DME5000-211S04 | Note: With special frequency F1 for parallel mounting | Communication interface: SSI | Measuring range: 0.15 m ... 150 m, on “diamond grade” reflective tape | Output time: 1 ms | Repeatability: 1 mm | Accuracy: ± 3 mm | Current consumption: At 24 V DC < 250 mA | Connection type: Male connector, M16, 8-pin
Measuring range
0.15 m ... 150 m, on “diamond grade” reflective tape1)
Target
Reflector
Resolution
50 µm ... 5,000 µm
Repeatability
1 mm1)2)
Measurement accuracy
± 3 mm
Response time
6 ms
Output time
1 ms
Light source
Laser, red3)
Type of light
Visible red light
Typ. light spot size (distance)
130 mm (at 70 m)
Normative reference
IEC 60825-1:2014, EN 60825-1:2014
Laser class
24)
Note
With special frequency F1 for parallel mounting
Max. movement speed
10 m/s
SSI
✔
Number
2
Type
Push-pull: PNP/NPN
Maximum output current IA
≤ 100 mA1)2)
Multifunctional input (MF)
1 x MF3)4)
Supply voltage UB
DC 18 V ... 30 V, limit values
Current consumption
At 24 V DC < 250 mA
Ripple
< 5 Vpp1)
Initialization time
1.5 s2)
Display
Display
Enclosure rating
IP65
Protection class
II3)
Dimensions (W x H x D)
61 mm x 101 mm x 176 mm
Housing material
Metal (zinc diecast)
Window material
Glass
Weight
Approx. 1,650 g
Ambient temperature, operation
–10 °C ... +55 °C–10 °C ... +75 °C, operation with cooling case
Ambient temperature, storage
–25 °C ... +75 °C
Effect of air pressure
0.3 ppm/hPa
Effect of air temperature
1 ppm/K
Temperature drift
Typ. 0.1 mm/K
Typ. Ambient light immunity
≤ 40,000 lx
Mechanical load
Shock: (EN 600 68-2-27 / –2-29)Sine: (EN 600 68-2-6)Noise: (EN 600 68-2-64)
Electromagnetic compatibility (EMC)
EN 61000-6-2, EN 55011
ECLASS 5.1.4
27270801
ECLASS 6.0
27270801
ECLASS 7.0
27270801
ECLASS 8.0
27270801
ECLASS 9.0
27270801
ECLASS 10.0
27270801
ECLASS 11.0
27270801
ECLASS 12.0
27270916
ECLASS 13.0
27270916
ECLASS 14.0
27270916
ECLASS 15.0
27270916
ETIM 6.0
EC001825
ETIM 7.0
EC001825
ETIM 8.0
EC001825
ETIM 9.0
EC001825
ETIM 10.0
EC001825
UNSPSC 091201.0
41111613
UNSPSC 100501.0
41111613
UNSPSC 111201.0
41111613
UNSPSC 120901.0
41111613
UNSPSC 131201.0
41111613
UNSPSC 140801.0
41111613
UNSPSC 151101.0
41111613
UNSPSC 160901.0
41111613
UNSPSC 171001.0
41111613
UNSPSC 180801.0
41111613
UNSPSC 190501.0
41111613
UNSPSC 200601.0
41111613
UNSPSC 210901.0
41111613
UNSPSC 220601.0
41111613
UNSPSC 230701.0
41111613
UNSPSC 240301.0
41111613
UNSPSC 250901.0
41111613
UNSPSC 260801.0
41111613
