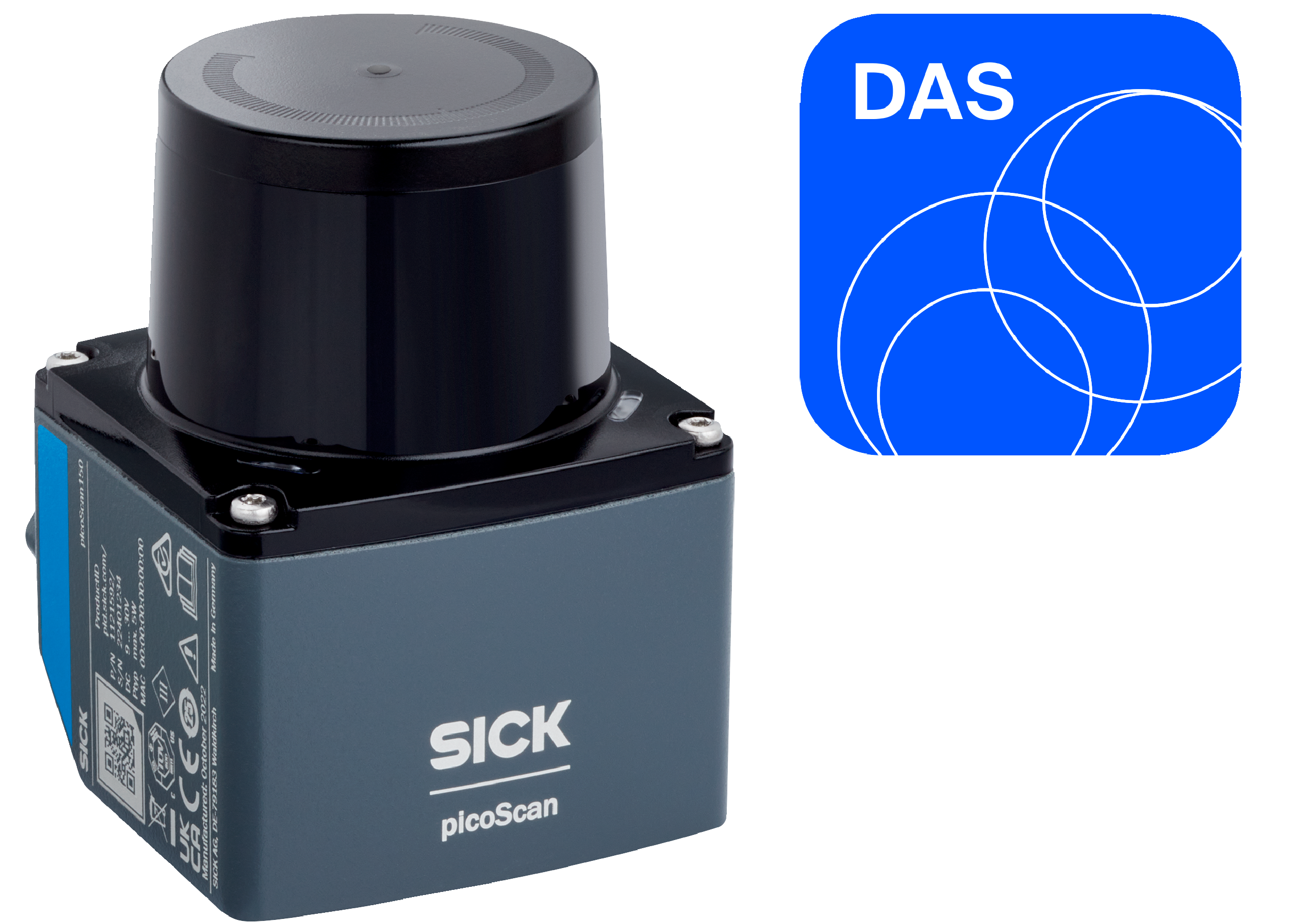

Object detection systems | Drive Assist System | DAS picoScan100 | Vehicle: Industrial trucks | Functions: Output in polar coordinates | Items supplied: picoScan150 2D LiDAR sensor with preinstalled Drive Assist System app
Areas of application
Indoor and outdoor areas (50 m)
Scanning frequency
20 Hz / 40 Hz (configurable)
Aperture angle
276°
Angular resolution
0.10° @ 20 Hz0.25° @ 40 Hz (configurable)
Max. range with 10 % reflectivity
25 m
Vehicles
Industrial trucks
Weight
220 g, without connecting cables
Supply voltage
(9 V DC ... 28 V DC)
Power consumption
4.5 W
Enclosure rating
IP65, IP67
Laser class
1 (EN 60825-1:2014, IEC 60825-1:2014)
Working range
0.05 m ... 60 m
Functions
Output in polar coordinates
Monitored area
Vehicle rear, vehicle front or side
Number of field sets
63, configurable
Response time
1 Scan, typ. 50 ms @ 20 Hz, typ. 25 ms @ 40 Hz
Detectable object shape
Almost any
GPS
–
WebInterface
Yes (parameterization)
Ethernet
✔ , TCP/IP
CAN
CANopen message structure
Ambient operating temperature
–33 °C ... +50 °C
Ambient temperature, storage
–40 °C ... +70 °C
Ambient light immunity
100,000 lx
Sine resonance scan
10 Hz ... 1,000 Hz, 1 g1)
Sine test
10 Hz ... 500 Hz, 10 g, 10 frequency cycles1)
Noise test
10 Hz ... 500 Hz, 13.5 g RMS, 5 h2)
Shock resistance
100 g, 6 ms, ± 3 single shocks/axis3)40 g, 6 ms, ± 4,000 continuous shocks/axis3)50 g, 6 ms, ± 5,000 continuous shocks/axis3)Short restriction in measurement data availability possible.
Items supplied
picoScan150 2D LiDAR sensor with preinstalled Drive Assist System app
ECLASS 5.1.4
27280801
ECLASS 6.0
27280890
ECLASS 7.0
27280890
ECLASS 8.0
27280890
ECLASS 9.0
27280890
ECLASS 10.0
27280890
ECLASS 11.0
27280890
ECLASS 12.0
27280890
ECLASS 13.0
27280890
ECLASS 14.0
27280890
ECLASS 15.0
27280890
ETIM 9.0
EC004807
ETIM 10.0
EC004807
UNSPSC 091201.0
43211701
UNSPSC 100501.0
43211701
UNSPSC 111201.0
43211701
UNSPSC 120901.0
43211701
UNSPSC 131201.0
43211701
UNSPSC 140801.0
43211701
UNSPSC 151101.0
43211701
UNSPSC 160901.0
43211701
UNSPSC 171001.0
43211701
UNSPSC 180801.0
43211701
UNSPSC 190501.0
43211701
UNSPSC 200601.0
43211701
UNSPSC 210901.0
43211701
UNSPSC 220601.0
43211701
UNSPSC 230701.0
43211701
UNSPSC 240301.0
43211701
UNSPSC 250901.0
43211701
UNSPSC 260801.0
43211701
