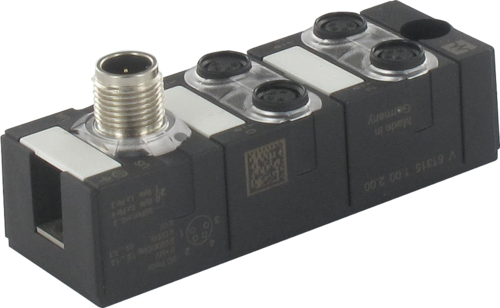

Expansion module DI8 NPN (E) - 8× M8 Metal parts: Stainless steel Connection cables are in the online shop under "Connection Technology". Housing fully...
Weight
0,175 kg
Country of origin
CZ
Model designation
CUBE67 DI8 E 8XM8 NPN VA
Total current US max.
4 A
Total current UA max.
4 A
Current consumption max.
30 mA
Sensor current US per input max.
0,2 A
Input filter time
1 ms
Type input
NPN, for 3-wire sensors or mechanical switches
Short circuit diagnosis
Yes
Overload diagnosis
Yes
Diagnostic
No voltage, Under voltage
Diagnostic via BUS
per module and channel
Diagnostic via LED
per module and channel
LED display
Ethernet connection/data traffic
