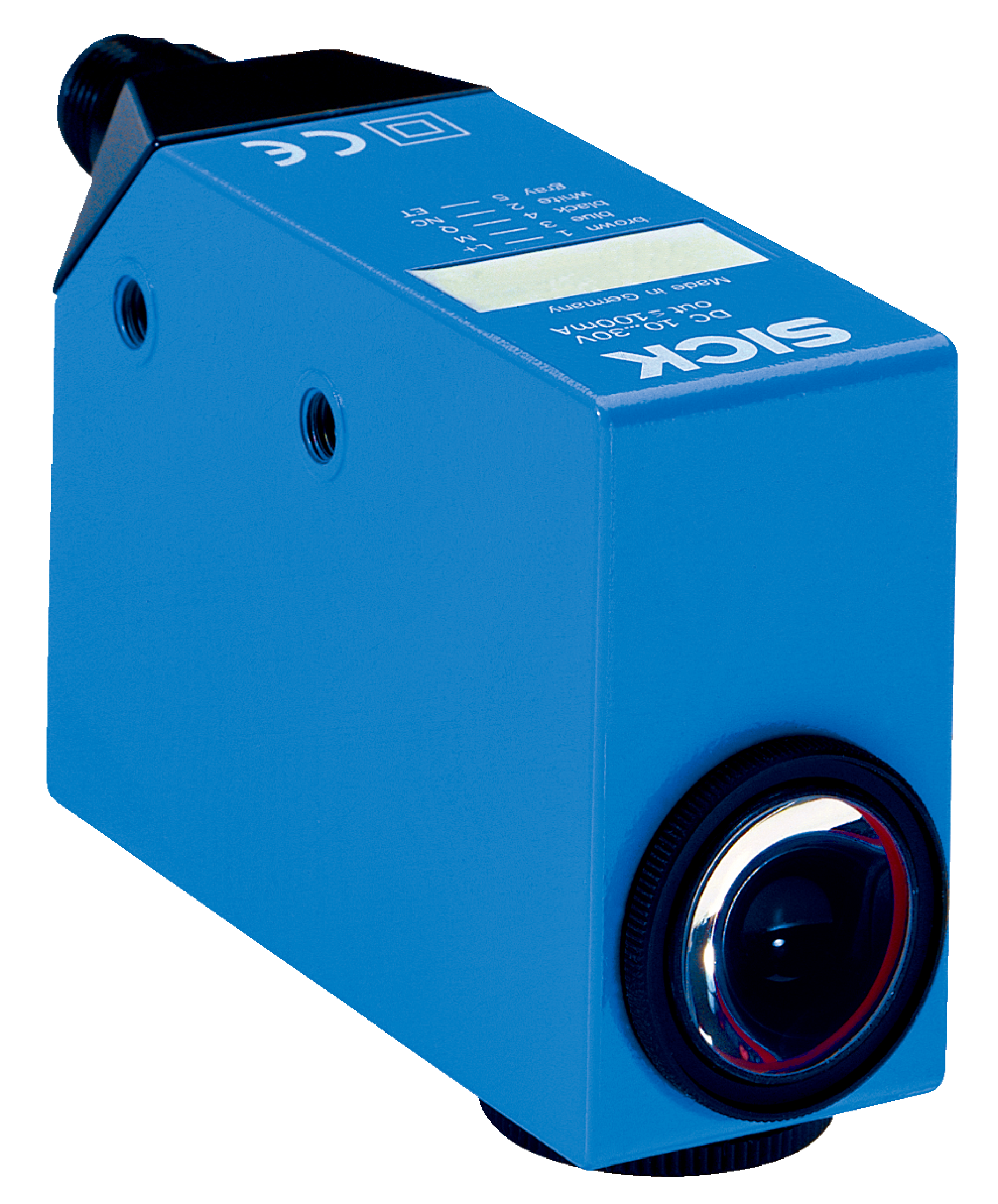

Color sensors | CS8 | CS84-P3612 | Light source: LED | Housing design: Middle | Communication interface: - | Sensing distance: 60 mm | Switching output: PNP | Light spot size: 13 mm x 13 mm | Connection type Detail: Male connector M12, 8-pin | Output (channel): 4 colors | Adjustment: Teach-in button
Housing design
Middle
Dimensions (W x H x D)
30.4 mm x 80 mm x 53 mm
Light source
LED, RGB1)
Light spot size
13 mm x 13 mm
Wave length
640 nm, 525 nm, 470 nm
Sensing distance
≤ 60 mm2)
Sensing distance tolerance
± 9 mm
Adjustment
Teach-in button
Teach-in mode
Static 1-point teach-in
Supply voltage
10 V DC ... 30 V DC1)
Ripple
< 5 Vpp2)
Current consumption
< 120 mA3)
Switching frequency
0.5 kHz4)1 kHz3.5 kHzAdjustable
Switching output
PNP
Switching output (voltage)
PNP: HIGH = UV≤ 2 V / LOW approx. 0 V
Output (channel)
4 colors
Output current Imax.
100 mA5)
Input, teach-in (ET)
PNPTeach: U = 10 V ... < UVRun: U < 2 V
Input, blanking input (AT)
PNPBlanked: U > 10 V ... < UvFree-running: U < 2 V6)
Retention time (ET)
25 ms, non-volatile memory
Time delay
Deactivation delay 20 ms, shiftable
Protection class
II7)
Circuit protection
UVconnections, reverse polarity protectedOutput Q short-circuit protectedInterference pulse suppression
Housing material
Zinc diecast
Вес
400 g
Ambient operating temperature
–10 °C ... +55 °C
Ambient temperature, storage
–20 °C ... +75 °C
Shock load
According to IEC 60068
Enclosure rating
IP67
UL File No.
NRKH.E181493 & NRKH7.E181493
