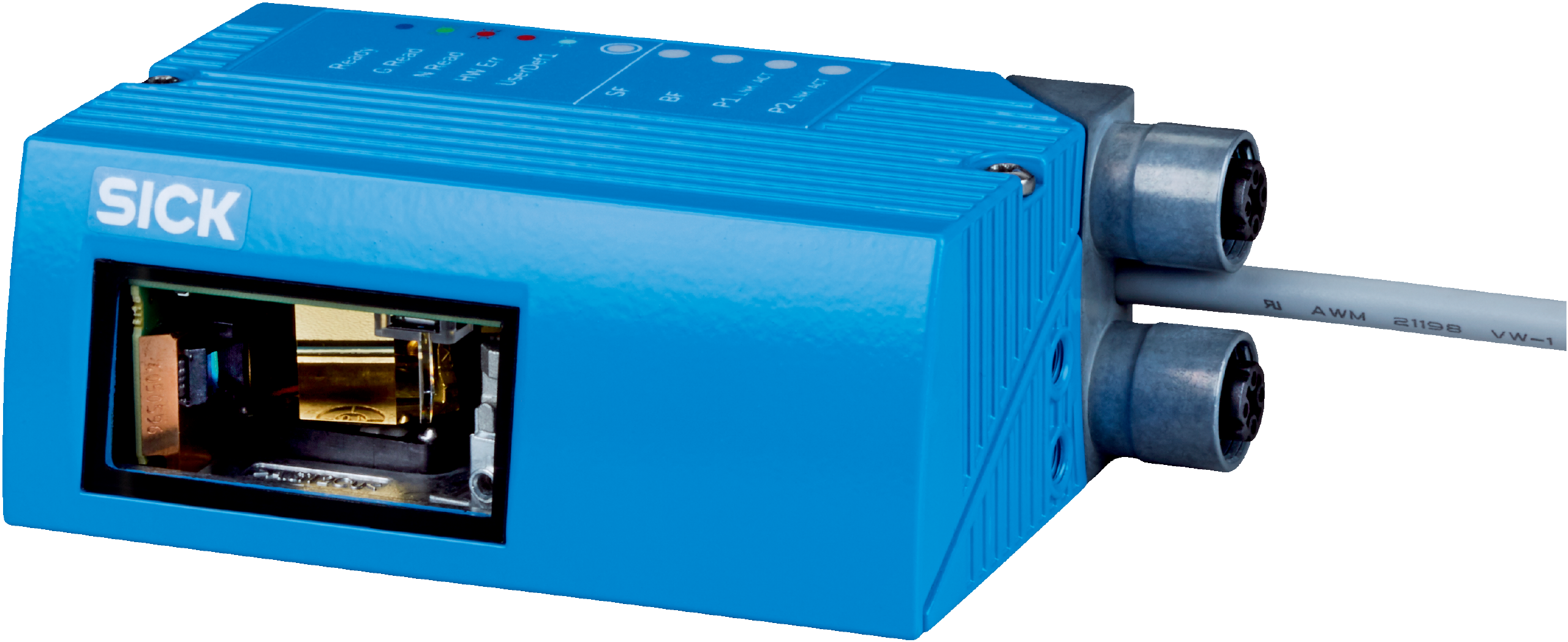

Fixed mount barcode scanners | CLV61x | CLV618-D1520 | Optical focus: Fixed focus | Communication interface: PROFINET, USB | Type: Rotary angle variant dual port (4-pin) | Max. reading distance: 705 mm | Code resolution: 0.35 mm ... 1 mm | Code printing process: Label (printed codes) | Sensor type: Raster scanner | Window material: Glass | Cold storage applications: no | Enclosure rating: IP65
Version
Long Range
Reading field
Front
Sensor type
Raster scanner
Optical focus
Fixed focus
Light source
Light spot, laser, Visible, Red, 655 nm
Laser class
2, complies with 21 CFR 1040.10 except for the conformance according to “Laser Notice No. 56” from May 8, 2019 (EN 60825-1:2014+A11:2021, IEC 60825-1:2014)
Aperture angle
≤ 50°
Reading distance
58 mm ... 705 mm1)
Scanning frequency
400 Hz ... 1,000 Hz
Code resolution
0.35 mm ... 1 mm
Raster height, number of lines, at distance
15 mm, 8, 200 mm
Connection type
1 x “POWER” connection, 5-pin M12 plug, A-coded1 x “PROFINET P1” connection, 4-pin M12 female connector, D-coded1 x “PROFINET P2” connection, 4-pin M12 socket, D-coded1 x Micro USB female connector, type B
Supply voltage
10 V DC ... 30 V DC
Power consumption
5 W
Housing material
Aluminum die cast
Housing color
Light blue (RAL 5012)
Window material
Glass
Enclosure rating
IP65 (DIN 40 050)
Protection class
III (VDE 0106/IEC 1010-1)
Вес
290.5 g
Dimensions (L x W x H)
61 mm x 96 mm x 38 mm
MTBF
100,000 h
MTTF
40,000 h (Laser diode)1)
Readable code structures
1D codes
Bar code types
All current code types, Code 39, Code 128, Code 93, Codabar, UPC / GTIN / EAN, Interleaved 2 of 5, Pharmacode
Code printing process
Label (printed codes)
Print ratio
2:1 ... 3:1
No. of codes per scan
1 ... 10 (Standard decoder)1 ... 6 (SMART620)
No. of codes per reading interval
1 ... 50 (auto-discriminating)
No. of characters per reading interval
1,500
No. of multiple readings
1 ... 99
PROFINET
✔
Data transmission rate
2-port Ethernet in accordance with IEEE 802.3 (baud rate 100 MBit/s, full-duplex transmission, 2-port switch, auto-negotiation, auto-crossover). Maximum data length is limited by the mode of communication (fragmentation protocol) to 4,000 bytes.

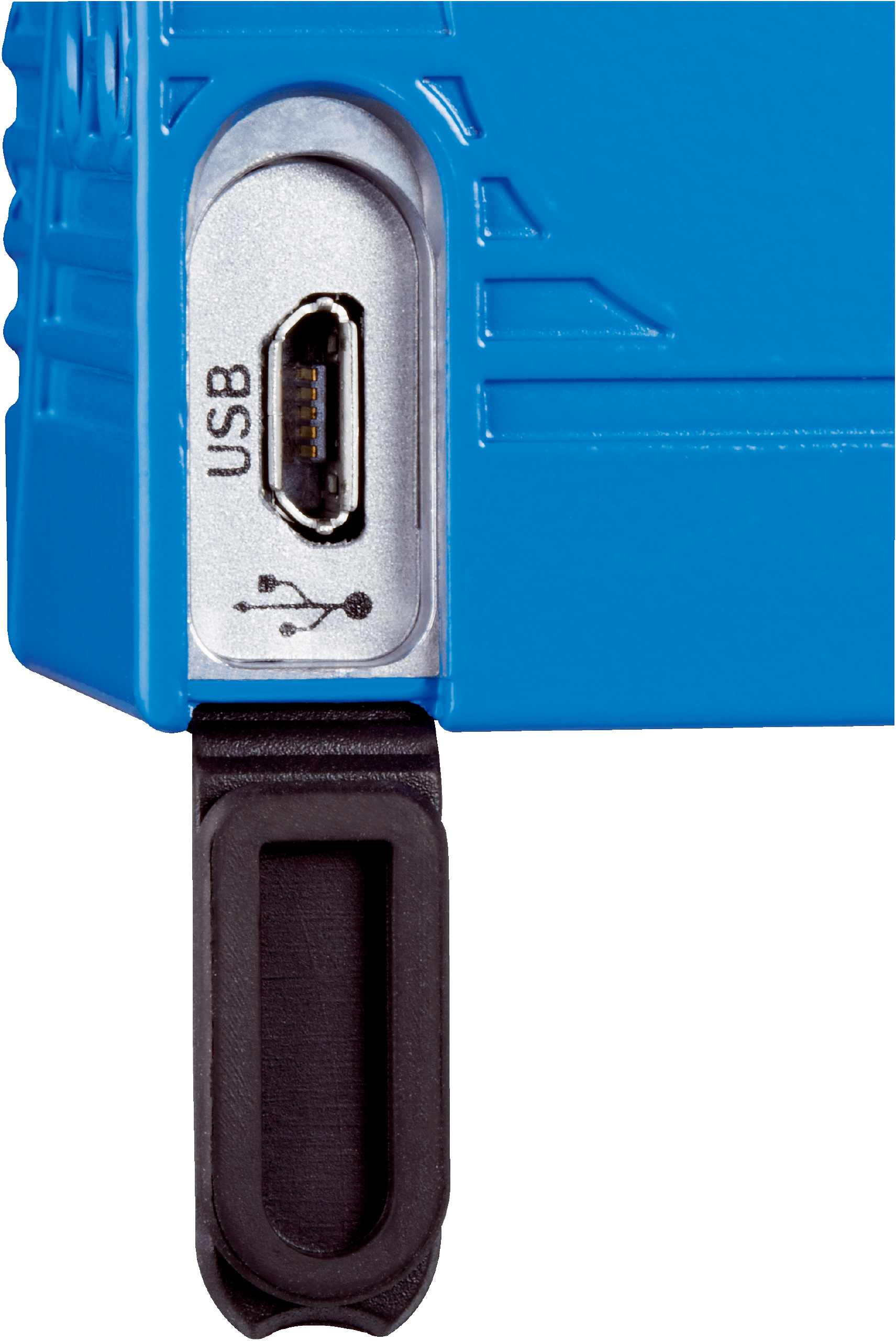

USB
✔
Function
Service interface
Digital inputs
2 (1 x “Sensor 1”, 1 x via PROFINET Ctrl bits)
Digital outputs
4 (via PROFINET Ctrl bits)
Reading pulse
Non-powered, auto pulse, Fieldbus input, command, Digital input
Optical indicators
5 LEDs
Configuration software
SOPAS ET
Electromagnetic compatibility (EMC)
EN 61000-6-4 (2007-01) + A1 (2011) / EN 61000-6-2:2005-08
Vibration resistance
EN 60068-2-6:2008-02
Shock resistance
EN 60068-2-27:2009-05
Ambient operating temperature
0 °C ... +40 °C
Storage temperature
–20 °C ... +70 °C
Relative humidity
90 %, Non-condensing
Ambient light immunity
2,000 lx, on barcode
Bar code print contrast (PCS)
≥ 60 %
EU declaration of conformity
✔
UK declaration of conformity
✔
ACMA declaration of conformity
✔
China RoHS
✔
cULus certificate
✔
Profinet certificate
✔
Laser safety (IEC 60825-1) declaration of manufacturer
✔
Information according to Art. 3 of Data Act (Regulation EU 2023/2854)
✔
4Dpro
✔
ECLASS 5.0
27280102
ECLASS 5.1.4
27280102
ECLASS 6.0
27280102
ECLASS 6.2
27280102
ECLASS 7.0
27280102
ECLASS 8.0
27280102
ECLASS 8.1
27280102
ECLASS 9.0
27280102
ECLASS 10.0
27280102
ECLASS 11.0
27280102
ECLASS 12.0
27280102
ETIM 5.0
EC002550
ETIM 6.0
EC002550
ETIM 7.0
EC002550
ETIM 8.0
EC002550
UNSPSC 16.0901
43211701
