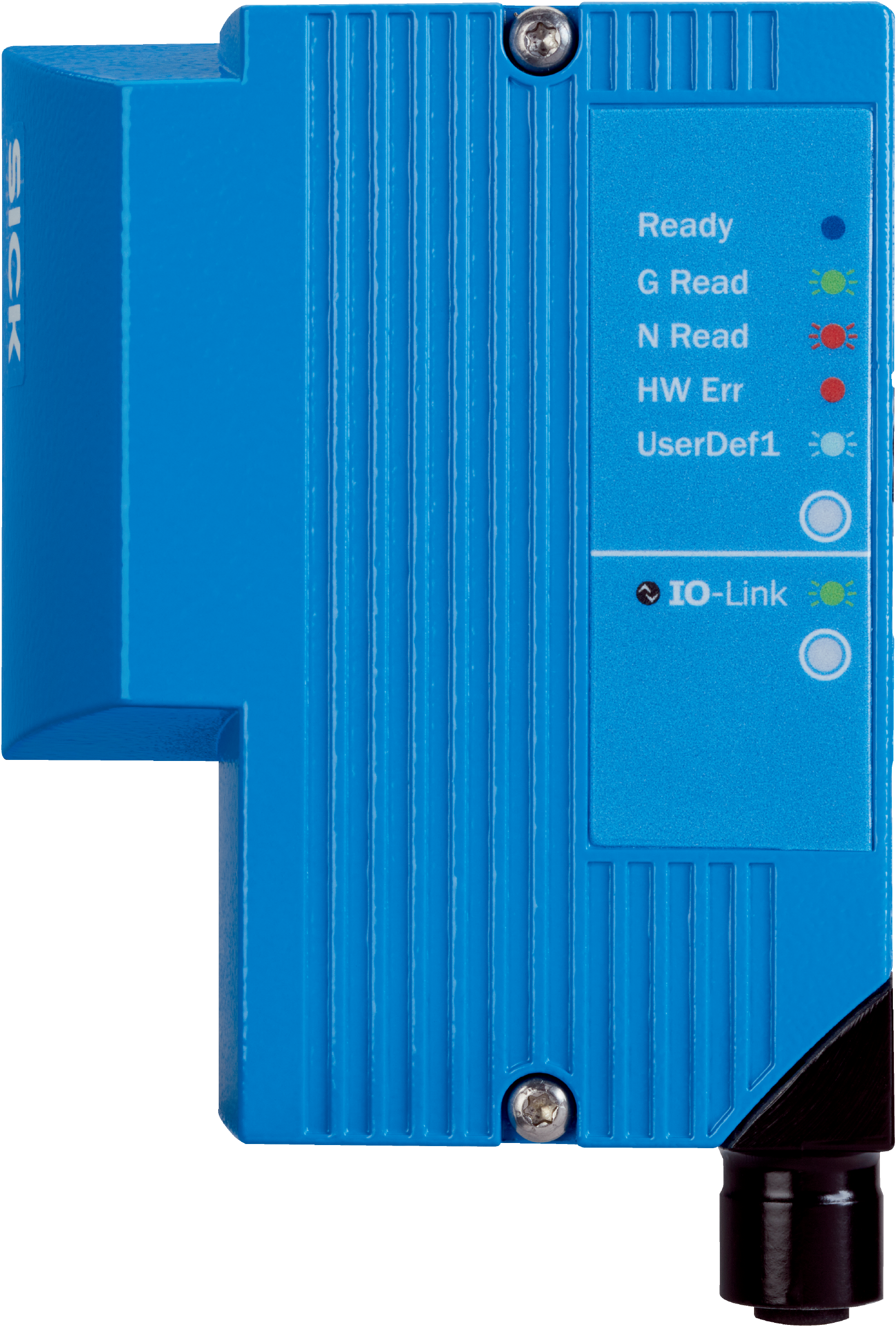

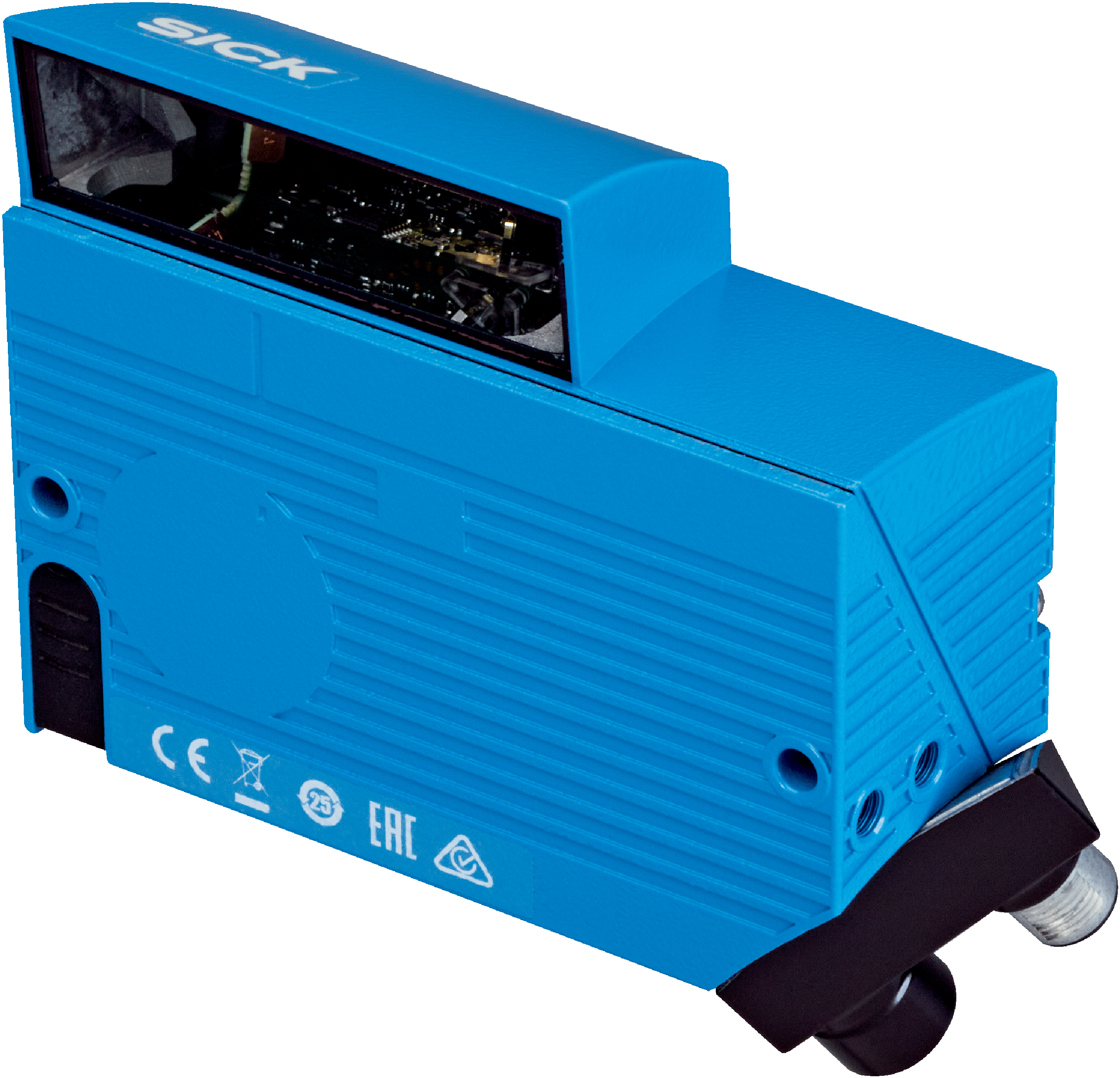

Fixed mount barcode scanners | CLV61x | CLV615-I2150 | Optical focus: Fixed focus | Communication interface: IO-Link, USB | Type: Rotary angle variant single port (5-pin) | Max. reading distance: 330 mm | Code resolution: 0.35 mm ... 0.5 mm | Code printing process: Label (printed codes) | Sensor type: Line scanner | Window material: Glass | Cold storage applications: no | Enclosure rating: IP65
Version
Long Range
Reading field
Side (105°)
Sensor type
Line scanner
Optical focus
Fixed focus
Light source
Light spot, laser, Visible, Red, 655 nm
Laser class
2, complies with 21 CFR 1040.10 except for the conformance according to “Laser Notice No. 56” from May 8, 2019 (EN 60825-1:2014+A11:2021, IEC 60825-1:2014)
Aperture angle
≤ 50°
Reading distance
25 mm ... 330 mm1)
Scanning frequency
400 Hz ... 1,000 Hz
Code resolution
0.35 mm ... 0.5 mm

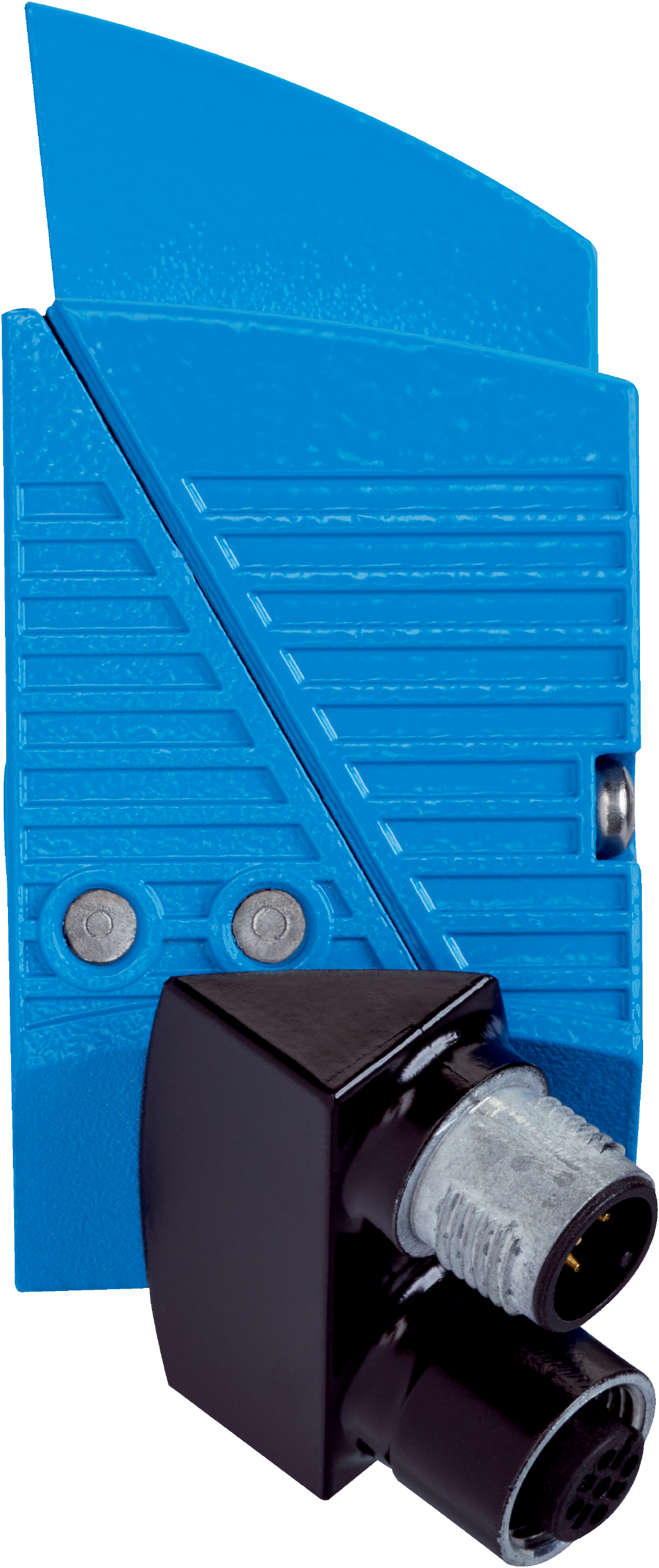

Connection type
1 x IO-Link and POWER” connection, 5-pin M12 male connector, A-coded1 x “Sensor 1” connection, 5-pin M12 female connector, A-coded1 x Micro USB female connector, type B
Supply voltage
18 V DC ... 30 V DC
Power consumption
3.2 W
Housing material
Aluminum die cast
Housing color
Light blue (RAL 5012)
Window material
Glass
Enclosure rating
IP65 (EN 60529:1991 + A1:2002 + A2:2013 + A3:2016)
Protection class
III (EN 60950-1/EN 62368-1)
Weight
260 g
Dimensions (L x W x H)
80 mm x 96 mm x 38 mm
MTBF
100,000 h
MTTF
40,000 h (Laser diode)1)
Readable code structures
1D codes
Bar code types
All current code types, Code 39, Code 128, Code 93, Codabar, UPC / GTIN / EAN, Interleaved 2 of 5
Code printing process
Label (printed codes)
Print ratio
2:1 ... 3:1
No. of codes per scan
1
No. of codes per reading interval
1
No. of characters per reading interval
31
No. of multiple readings
1 ... 99
IO-Link
✔ , V1.1
Data transmission rate
COM3 (230,4 kBaud)
USB
✔
Function
Service interface
Digital inputs
2 (1 x “Sensor 1”, 1 x via IO-Link Ctrl bits)
Digital outputs
1 (Via IO-Link process data output (ctrl. bits))
Reading pulse
IO-Link (default), Free (auto cycle), Digital input for local read cycle sensor
Optical indicators
2 LEDs
Configuration software
SOPAS ET
Electromagnetic compatibility (EMC)
EN 61000-6-4: 2019 / EN 61000-6-2: 2019
Vibration resistance
EN 60068-2-6:2008-02
Shock resistance
EN 60068-2-27:2009-05
Ambient operating temperature
0 °C ... +40 °C
Storage temperature
–20 °C ... +70 °C
Relative humidity
90 %, Non-condensing
Ambient light immunity
2,000 lx, on barcode
Bar code print contrast (PCS)
≥ 60 %
Items supplied
Single scanner
EU declaration of conformity
✔
UK declaration of conformity
✔
ACMA declaration of conformity
✔
China RoHS
✔
cULus certificate
✔
IO-Link certificate
✔
Laser safety (IEC 60825-1) declaration of manufacturer
✔
Information according to Art. 3 of Data Act (Regulation EU 2023/2854)
✔
ECLASS 5.0
27280102
ECLASS 5.1.4
27280102
ECLASS 6.0
27280102
ECLASS 6.2
27280102
ECLASS 7.0
27280102
ECLASS 8.0
27280102
ECLASS 8.1
27280102
ECLASS 9.0
27280102
ECLASS 10.0
27280102
ECLASS 11.0
27280102
ECLASS 12.0
27280102
ETIM 5.0
EC002550
ETIM 6.0
EC002550
ETIM 7.0
EC002550
ETIM 8.0
EC002550
UNSPSC 16.0901
43211701
