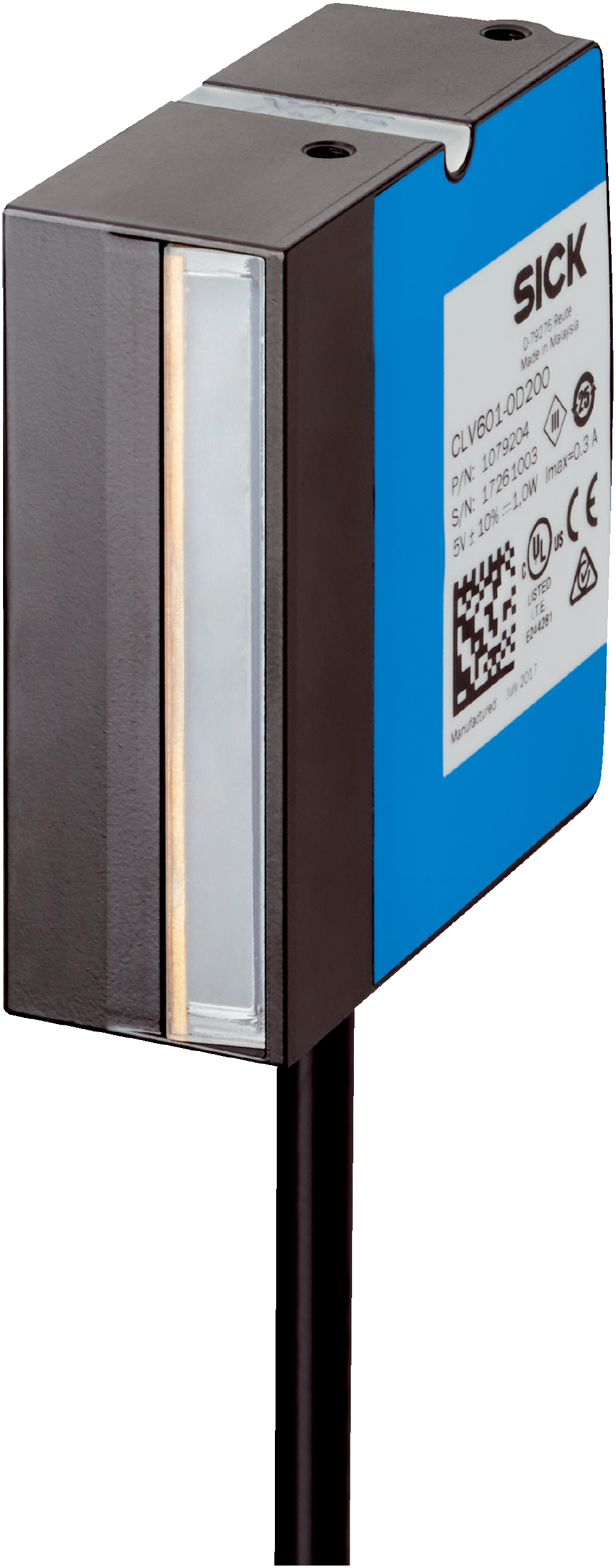

Fixed mount barcode scanners | CLV60x | CLV602-0D200 | Optical focus: Fixed focus | Communication interface: Serial | Type: Cable connection variant | Max. reading distance: 105 mm | Code resolution: 0.2 mm ... 0.5 mm | Code printing process: Label (printed codes) | Sensor type: Line scanner | Window material: Plastic | Cold storage applications: no | Enclosure rating: IP40
Reading field
Front
Sensor type
Line scanner
Optical focus
Fixed focus (50 mm)
Sensor
CMOS line sensor
Sensor resolution
2,048 px
LED class
Risk group 0 (IEC 62471:2006-07, EN 62471:2008-09)
Light source
Light spot, LED, Visible, Red, 626 nm
Aperture angle
≤ 62°
Reading distance
20 mm ... 105 mm1)
Scanning frequency
750 Hz
Tilt α
± 5° (with code resolution ≥ 0.2 mm)± 10° (with code resolution ≥ 0.25 mm)± 15° (with code resolution ≥ 0.35 mm)± 25° (with code resolution ≥ 0.5 mm)
Pitch β
± 6° (with code resolution ≥ 0.2 mm)± 15° (with code resolution ≥ 0.5 mm)
Skew γ
± 20° (with code resolution ≥ 0.2 mm)± 30° (with code resolution ≥ 0.5 mm)
Code resolution
0.2 mm ... 0.5 mm
Connection type
1 x 9-pin D-sub male connector (2 m)
Supply voltage
5 V DC, ± 10 %
Power consumption
Typ. 1 W
Housing material
Zinc diecast
Housing color
Light blue (RAL 5012), black (RAL 9005)
Window material
Plastic
Enclosure rating
IP40 (DIN 40 050)
Protection class
III (VDE 0106/IEC 1010-1)
Weight
230 g, with connecting cable
Dimensions (L x W x H)
55 mm x 52 mm x 20 mm
MTBF
100,000 h
Readable code structures
1D codes
Bar code types
All current code types, Code 39, Code 128, Code 93, Codabar, UPC / GTIN / EAN, Interleaved 2 of 5
Code printing process
Label (printed codes)
Print ratio
2:1 ... 3:1
No. of codes per scan
1 ... 1
No. of codes per reading interval
1 ... 15 (auto-discriminating)
No. of characters per reading interval
450
Number of characters per code
≤ 30
No. of multiple readings
1 ... 100
Serial
✔
Function
Data interface (read result output), Service interface
Data transmission rate
2,400 Baud ... 250 kBaud, AUX: 57.6 kBaud
Digital inputs
1 (“Input 1”, Vin = max. 30 V)
Digital outputs
2 (“Output 1”, “Output 2”, Iout = max. 50 mA)
Reading pulse
Start: Digital input, free, command, auto pulse, stop: Digital input, free, command, timer, Good Read
Optical indicators
1 RGB LED (multifunctional)
Acoustic indicators
Beeper/buzzer (can be switched off, can be allocated as a result indication function)
Configuration software
SOPAS ET
Electromagnetic compatibility (EMC)
EN 61000-6-3/A1:2011-03 / EN 61000-6-2:2005-08
Vibration resistance
EN 60068-2-6:2008-02
Shock resistance
EN 60068-2-27:2009-05
Ambient operating temperature
0 °C ... +50 °C
Storage temperature
–20 °C ... +70 °C
Relative humidity
90 %, Non-condensing
Ambient light immunity
5,000 lx, on barcode
Bar code print contrast (PCS)
≥ 60 %
Items supplied
Single scanner, Safety Notes
EU declaration of conformity
✔
UK declaration of conformity
✔
ACMA declaration of conformity
✔
China RoHS
✔
cULus certificate
✔
KC Mark certificate
✔
BIS registration
✔
Information according to Art. 3 of Data Act (Regulation EU 2023/2854)
✔
ECLASS 5.0
27280102
ECLASS 5.1.4
27280102
ECLASS 6.0
27280102
ECLASS 6.2
27280102
ECLASS 7.0
27280102
ECLASS 8.0
27280102
ECLASS 8.1
27280102
ECLASS 9.0
27280102
ECLASS 10.0
27280102
ECLASS 11.0
27280102
ECLASS 12.0
27280102
ETIM 5.0
EC002550
ETIM 6.0
EC002550
ETIM 7.0
EC002550
ETIM 8.0
EC002550
UNSPSC 16.0901
43211701
