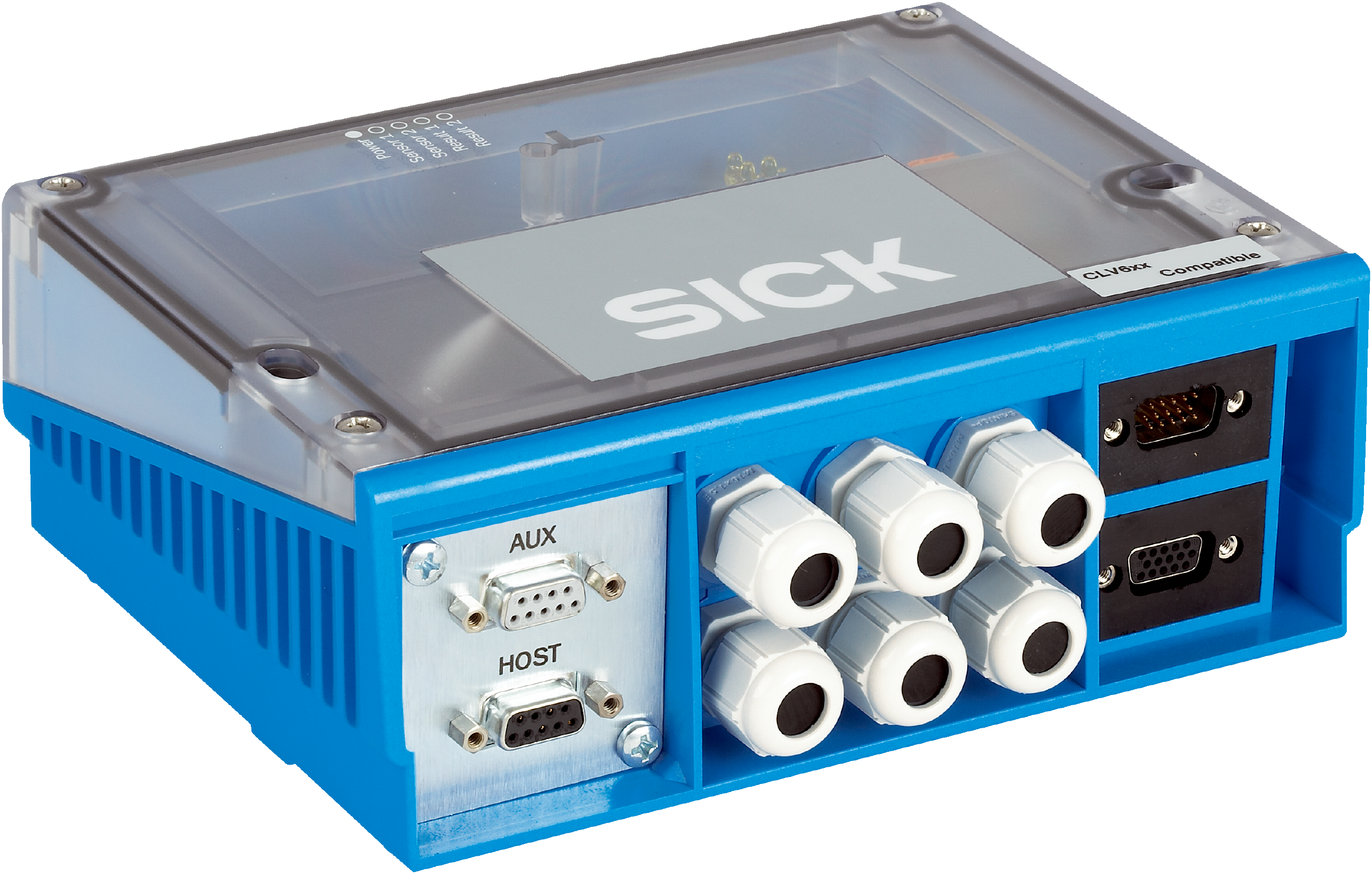

Junction boxes | CDM | CDM490-0103 | Brief description: Kit: modular connection module for one sensor, Host and AUX interface available on face plate, power supply CMP490, US power cord | Communication interface: SerialCAN | Communication Interface detail: RS-232 | Supported products: CLV69xLMS400
Brief description
Kit: modular connection module for one sensor, Host and AUX interface available on face plate, power supply CMP490, US power cord
Supported products
CLV69xLMS400
Cloning module support (CMC)
Yes
Supports display module (CMD)
No
Supports power supply module (CMP)
Yes
Supports fieldbus gateway (CMF)
No
Power consumption
Power consumption of the sensor + 0.5 W
Housing
Polycarbonate
Enclosure rating
IP651)
Protection class
III
Weight
870 g
Dimensions (L x W x H)
192 mm x 167 mm x 70 mm
Scanner connection
15-pin D-Sub HD female connector, 15-pin D-Sub HD male connector
Service plug
9-pin D-Sub plug (internal)
Serial
✔ , RS-232, RS-422, RS-485
Remark
Depending on sensor connected
Digital inputs
Depending on sensor connected
Digital outputs
Depending on sensor connected
Optical indicators
11 LED
Configuration software
SOPAS ET
Ambient operating temperature
–35 °C ... +40 °C
Storage temperature
–20 °C ... +70 °C
Permissible relative humidity
< 90 %, Non-condensing
EU declaration of conformity
✔
UK declaration of conformity
✔
ACMA declaration of conformity
✔
China RoHS
✔
4Dpro
✔
ECLASS 5.1.4
27250608
ECLASS 6.0
27242608
ECLASS 7.0
27242608
ECLASS 8.0
27242608
ECLASS 9.0
27242608
ECLASS 10.0
27242608
ECLASS 11.0
27242608
ECLASS 12.0
27242608
ECLASS 13.0
27242608
ECLASS 14.0
27242608
ECLASS 15.0
27242608
ETIM 6.0
EC001604
ETIM 7.0
EC001604
ETIM 8.0
EC001604
ETIM 9.0
EC001604
ETIM 10.0
EC001604
UNSPSC 091201.0
32151705
UNSPSC 100501.0
32151705
UNSPSC 111201.0
32151705
UNSPSC 120901.0
32151705
UNSPSC 131201.0
32151705
UNSPSC 140801.0
32151705
UNSPSC 151101.0
32151705
UNSPSC 160901.0
32151705
UNSPSC 171001.0
32151705
UNSPSC 180801.0
32151705
UNSPSC 190501.0
32151705
UNSPSC 200601.0
32151705
UNSPSC 210901.0
32151705
UNSPSC 220601.0
32151705
UNSPSC 230701.0
32151705
UNSPSC 240301.0
32151705
UNSPSC 250901.0
32151705
UNSPSC 260801.0
32151705
