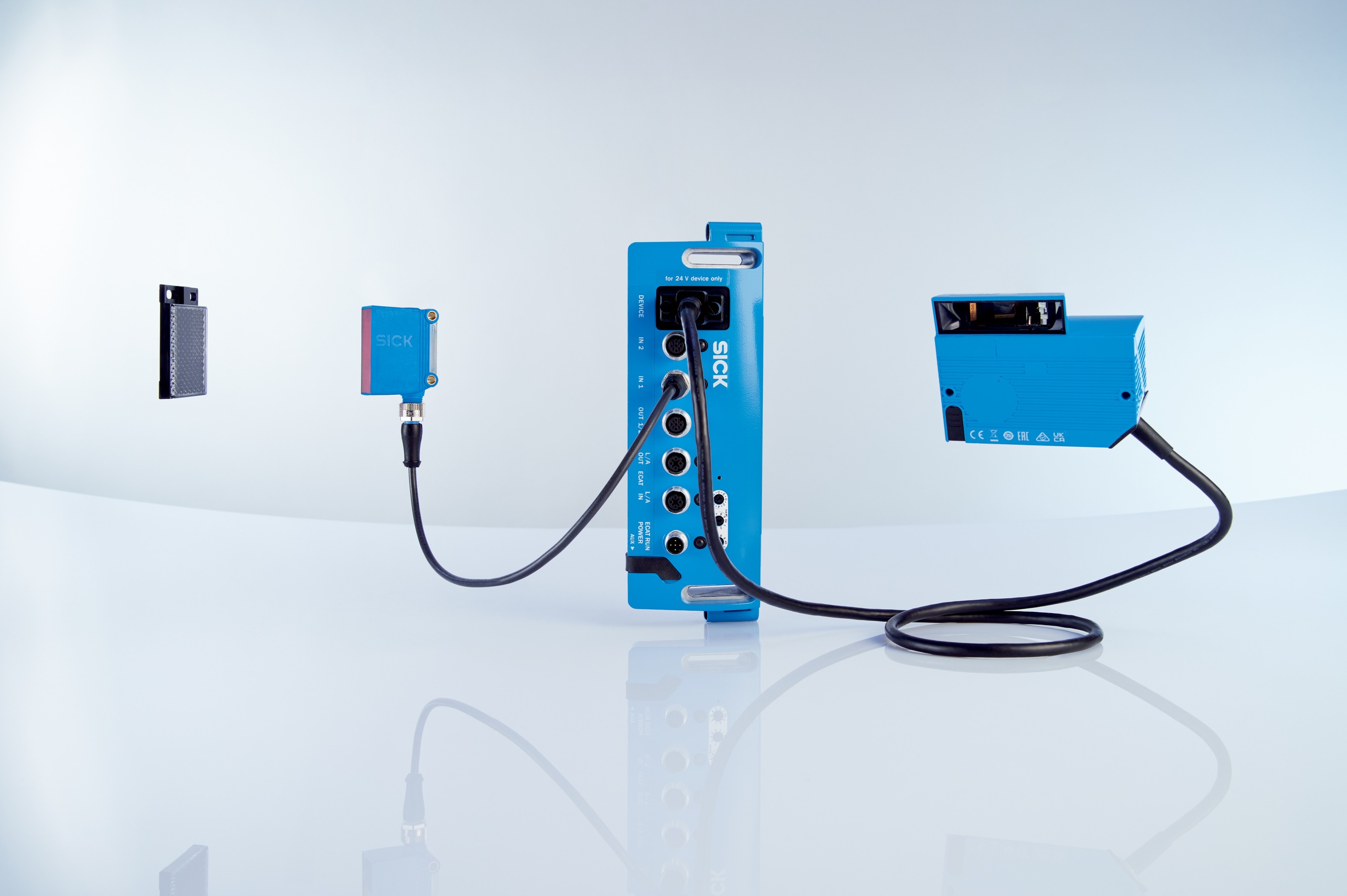

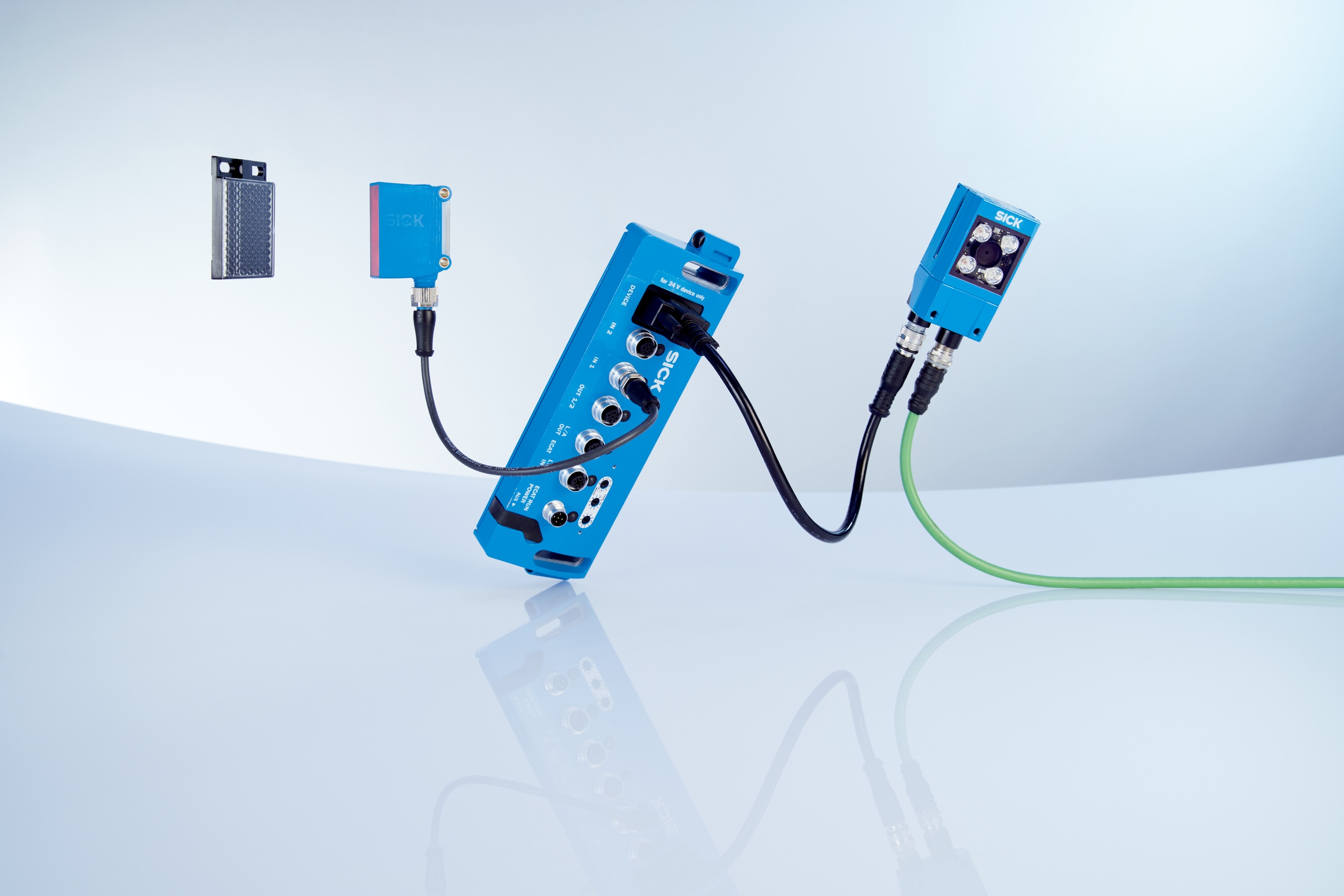

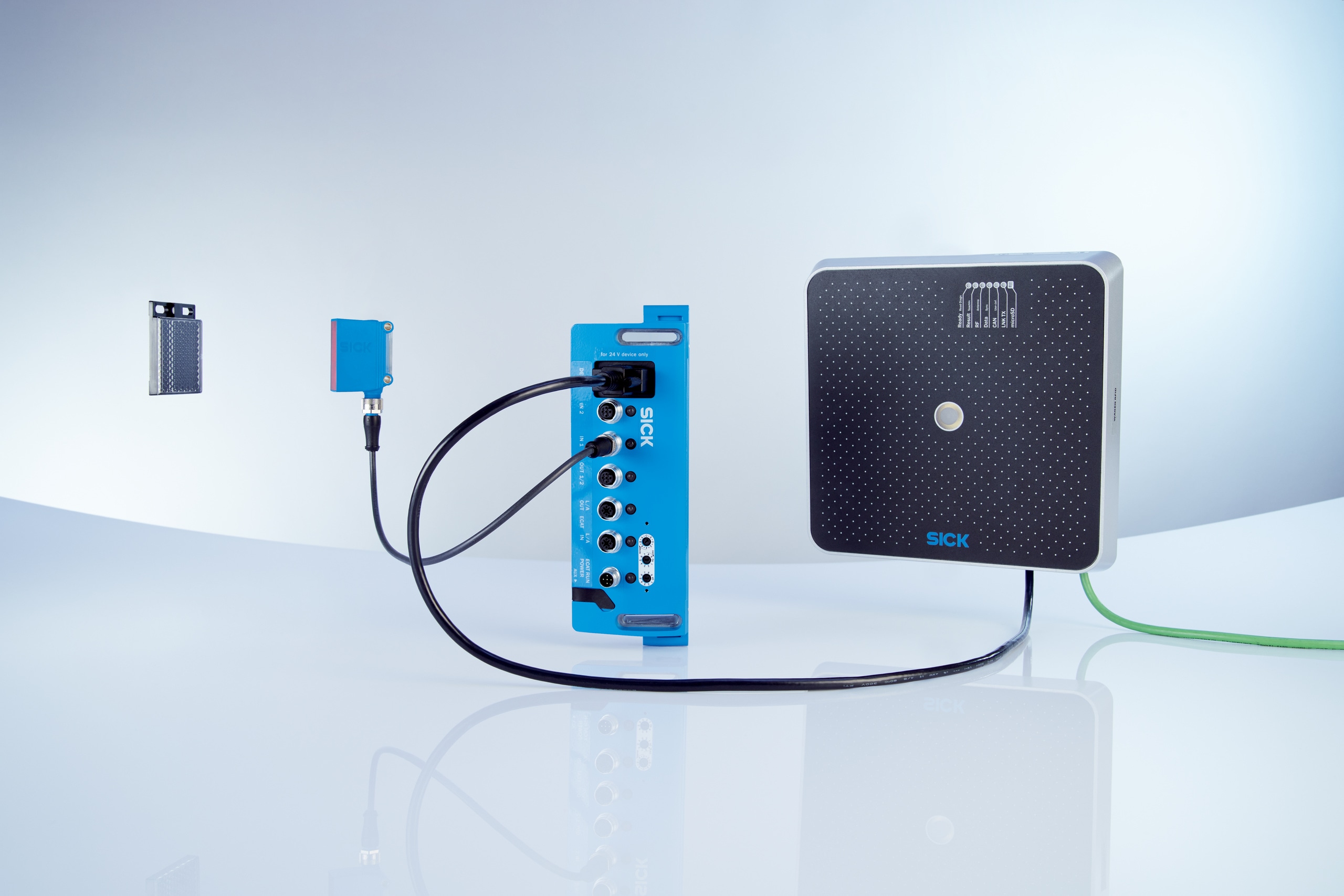

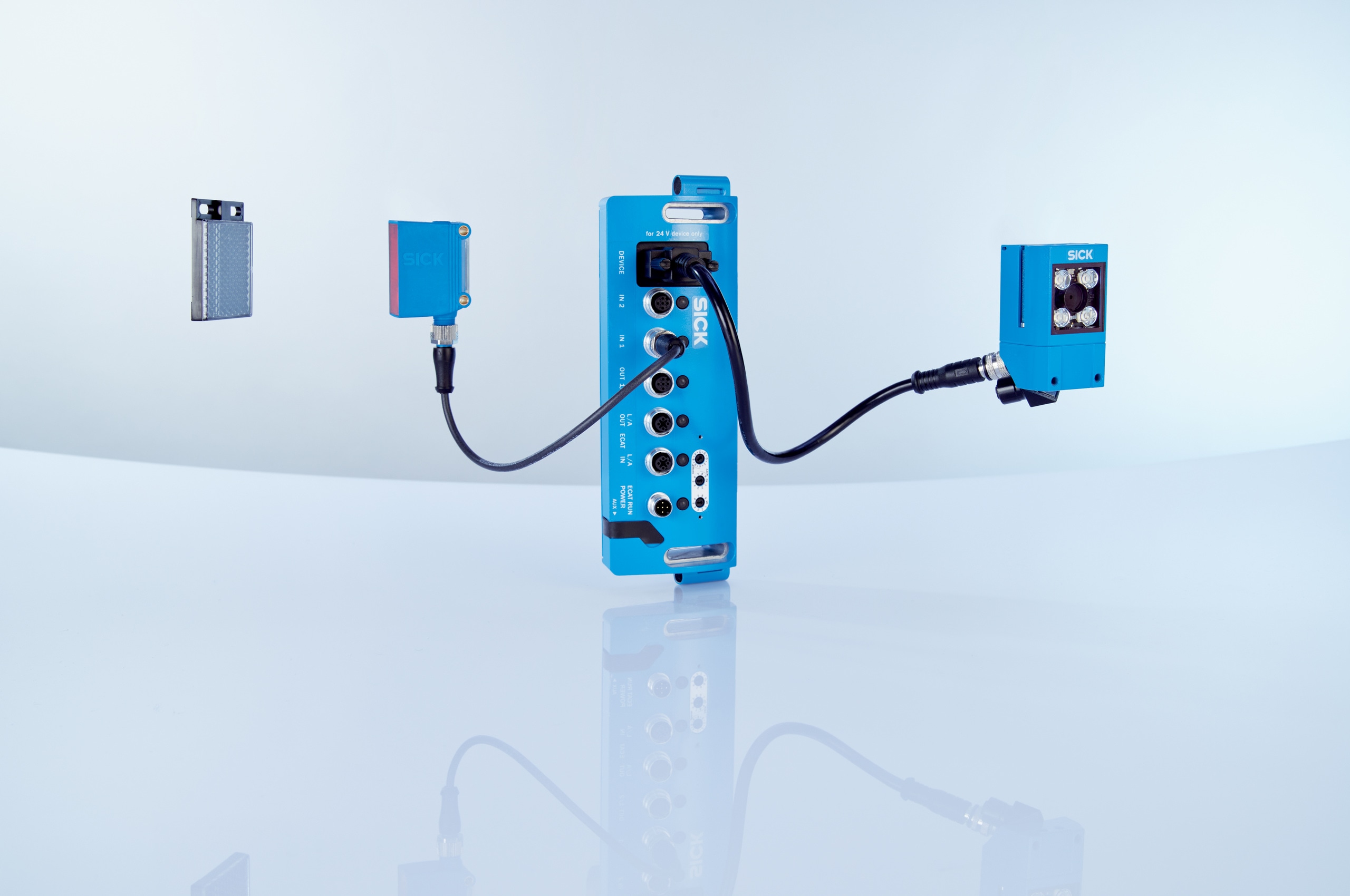

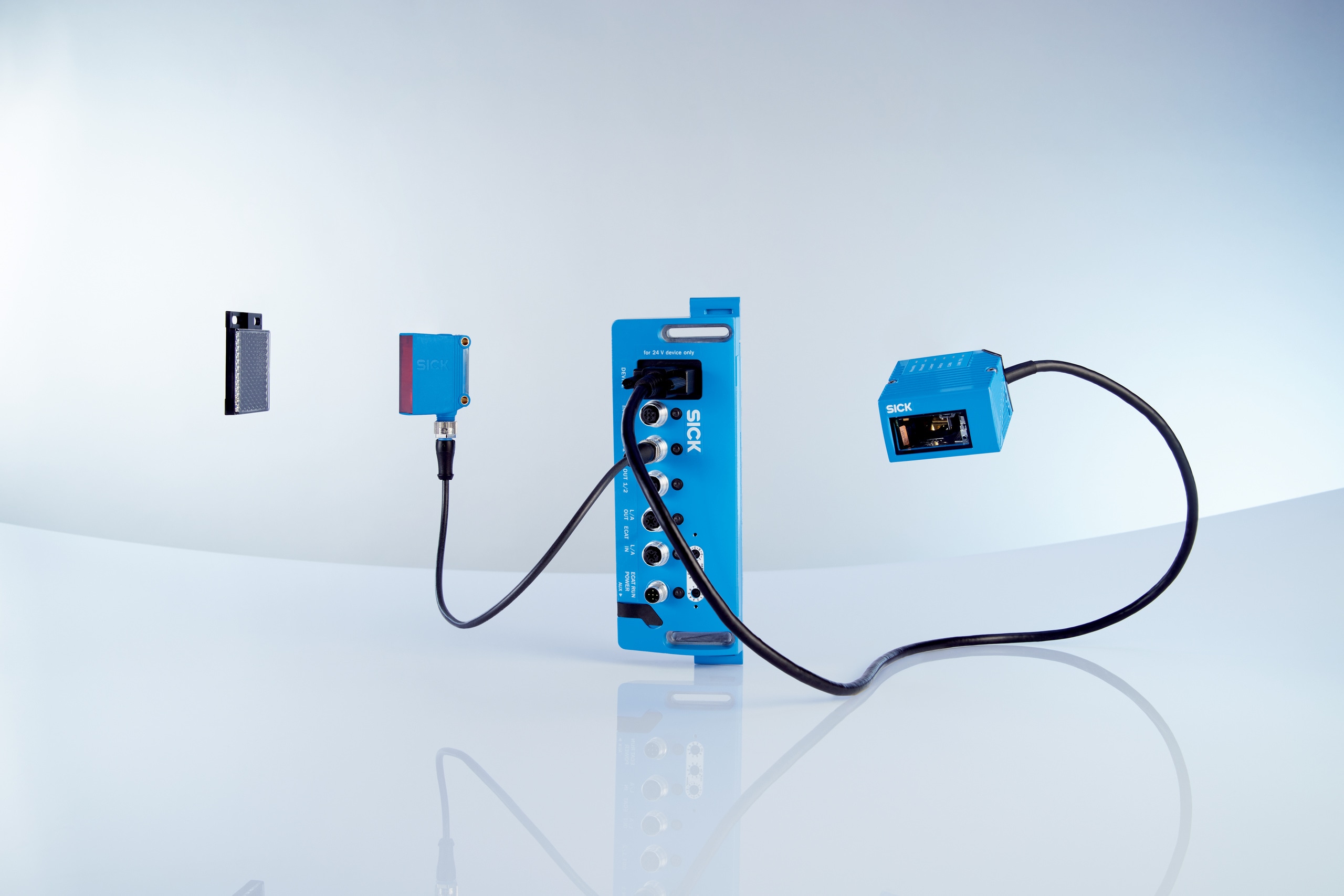

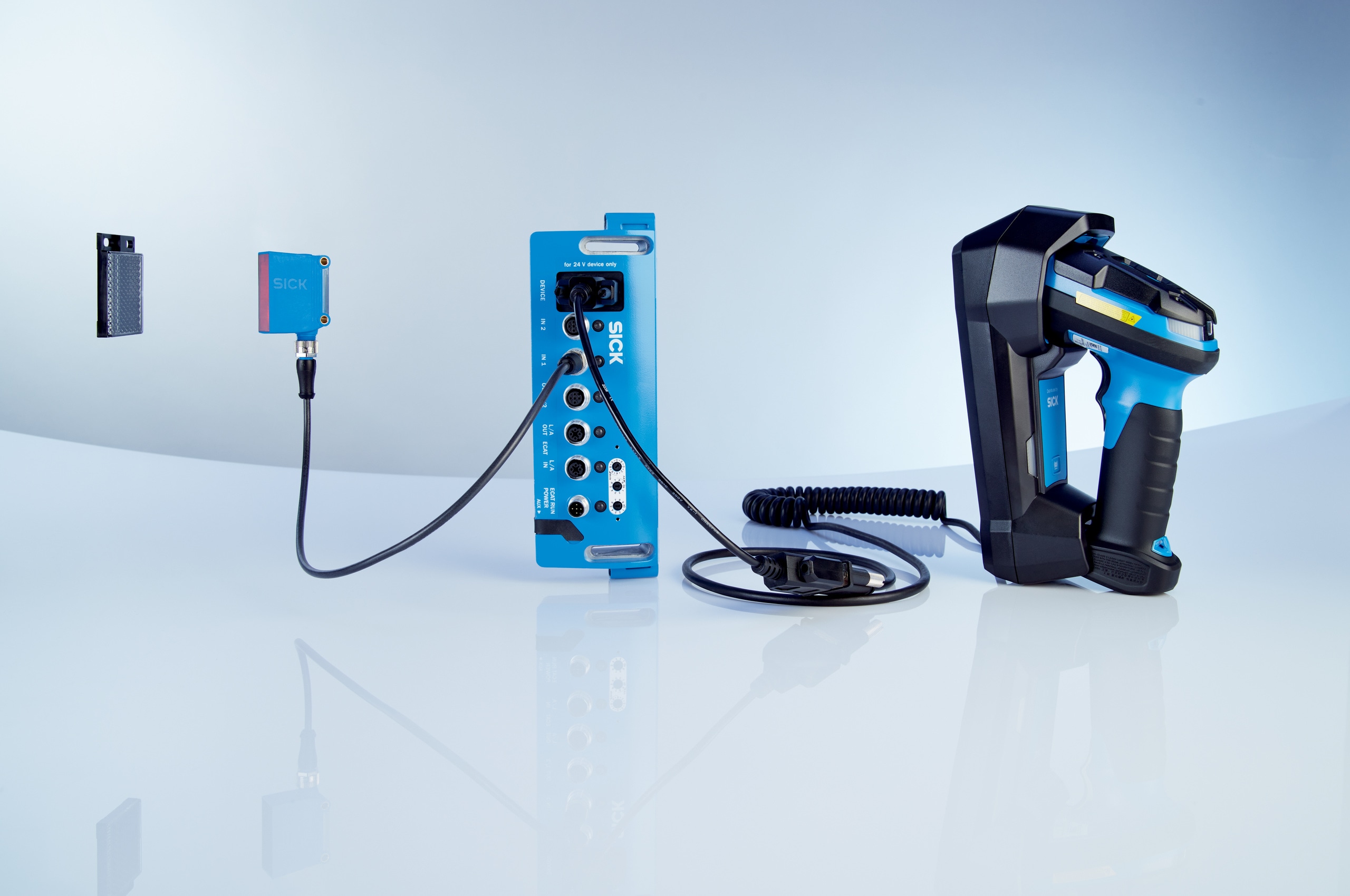

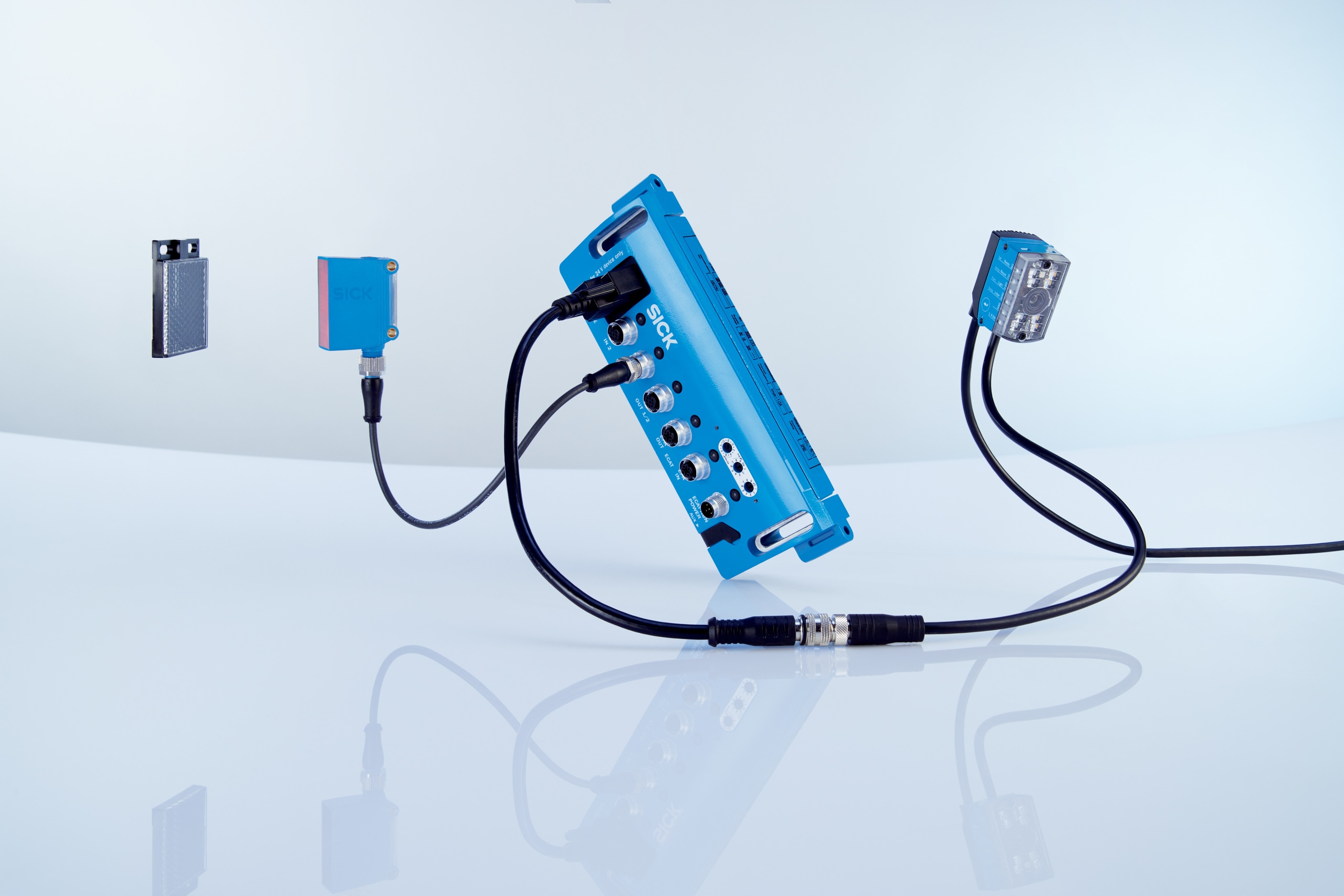

Network devices | CDF | CDF600-0300 | Communication interface: Serial, CAN, EtherCAT® | Communication Interface detail: RS-232 | Operating voltage: 18 V DC 30 V DC | Supported products: CLV61x - CLV65x, Mobile handheld scanners, RFH6xx, RFU62x, Lector62x
Supported products
CLV61x - CLV65xMobile handheld scannersRFH6xxRFU62xLector62x
Cloning module support (CMC)
Integrated
Supports display module (CMD)
No
Supports power supply module (CMP)
No
Supports fieldbus gateway (CMF)
No
Supply voltage
(18 V DC ... 30 V DC)
Power consumption
7 W, if no sensor is connected and digital inputs and outputs are not connected
Housing
Aluminum die cast
Enclosure rating
IP651)
Protection class
III
Weight
590 g
Dimensions (L x W x H)
47 mm x 225 mm x 76.5 mm2)
Scanner connection
RS-232
Serial
✔ , RS-232, RS-422, RS-485
Remark
Depending on sensor connected
Digital inputs
2
Digital outputs
2
Optical indicators
7 LEDs (OUT 1/2 doubly occupied)
Configuration software
SOPAS ET
Electromagnetic compatibility (EMC)
EN 61000-6-4 (2007-01) / EN 61000-6-2:2005-08
Vibration resistance
EN 60068-2-6 (1995)
Shock resistance
EN 60068-2-27 (1993)
Ambient operating temperature
–35 °C ... +50 °C
Storage temperature
–35 °C ... +70 °C
Permissible relative humidity
90 %, Non-condensing
EU declaration of conformity
✔
UK declaration of conformity
✔
ACMA declaration of conformity
✔
China RoHS
✔
cULus certificate
✔
Ethercat certificate
✔
ECLASS 5.1.4
27250608
ECLASS 6.0
27242608
ECLASS 7.0
27242608
ECLASS 8.0
27242608
ECLASS 9.0
27242608
ECLASS 10.0
27242608
ECLASS 11.0
27242608
ECLASS 12.0
27242608
ECLASS 13.0
27242608
ECLASS 14.0
27242608
ECLASS 15.0
27242608
ETIM 6.0
EC001604
ETIM 7.0
EC001604
ETIM 8.0
EC001604
ETIM 9.0
EC001604
ETIM 10.0
EC001604
UNSPSC 091201.0
32151705
UNSPSC 100501.0
32151705
UNSPSC 111201.0
32151705
UNSPSC 120901.0
32151705
UNSPSC 131201.0
32151705
UNSPSC 140801.0
32151705
UNSPSC 151101.0
32151705
UNSPSC 160901.0
32151705
UNSPSC 171001.0
32151705
UNSPSC 180801.0
32151705
UNSPSC 190501.0
32151705
UNSPSC 200601.0
32151705
UNSPSC 210901.0
32151705
UNSPSC 220601.0
32151705
UNSPSC 230701.0
32151705
UNSPSC 240301.0
32151705
UNSPSC 250901.0
32151705
UNSPSC 260801.0
32151705
