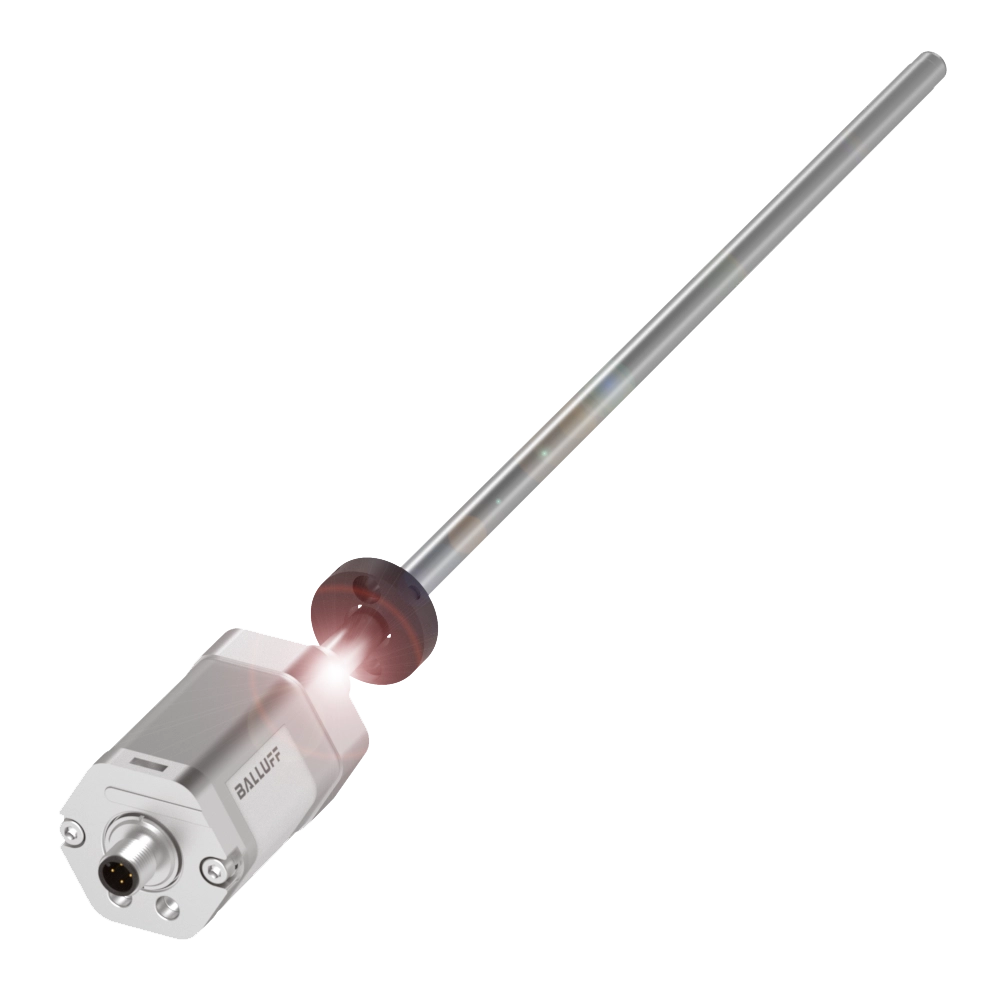

BTL356A (BTL6-U101-M4100-B-S4) - Magnetostrictive linear position sensors in rod design - List price Deutschland: 1.884,90 EUR - Style: Rod series, Mounting part: Threaded flange M18x1.5, Housing material: Aluminium, Anodized, Magnets, number max.: 2, Connection: Connector, M12x1, 4-pin, Interface: IO-Link 1.1, Measuring range: 4100 mm, Sampling frequency max.: 250 Hz, Non-linearity max.: ±50 µm, Repeat accuracy: ≤ 30 µm, Operating voltage Ub: 18...30 VDC, Ambient temperature: -40...85 °C, IP rating: IP67, Approval/Conformity: CE, cULus, WEEE, UKCA
Style
Rod series
Mounting part
Threaded flange M18x1.5
Housing material
Aluminium, Anodized
Magnets, number max.
2
Connection
Connector, M12x1, 4-pin
Interface
IO-Link 1.1
Measuring range
4100 mm
Sampling frequency max.
250 Hz
Non-linearity max.
±50 µm
Repeat accuracy
≤ 30 µm
Operating voltage Ub
18...30 VDC
Ambient temperature
-40...85 °C
IP rating
IP67
Approval/Conformity
CEcULusWEEEUKCA
Manufacturer
Balluff GmbH
Declaration of Compliance
EU-Konformitätserklärung / EU Declaration of Conformity | (All languages)
Manual
BTL6-U1_ _-.-ABYZ-S4 | (English, French, German, Italian, Spanish)
Short guide
BTL6-U1_ _-.-ABYZ-S4 | (English, French, German, Italian, Spanish, Chinese)
Tariff Code
90318020
