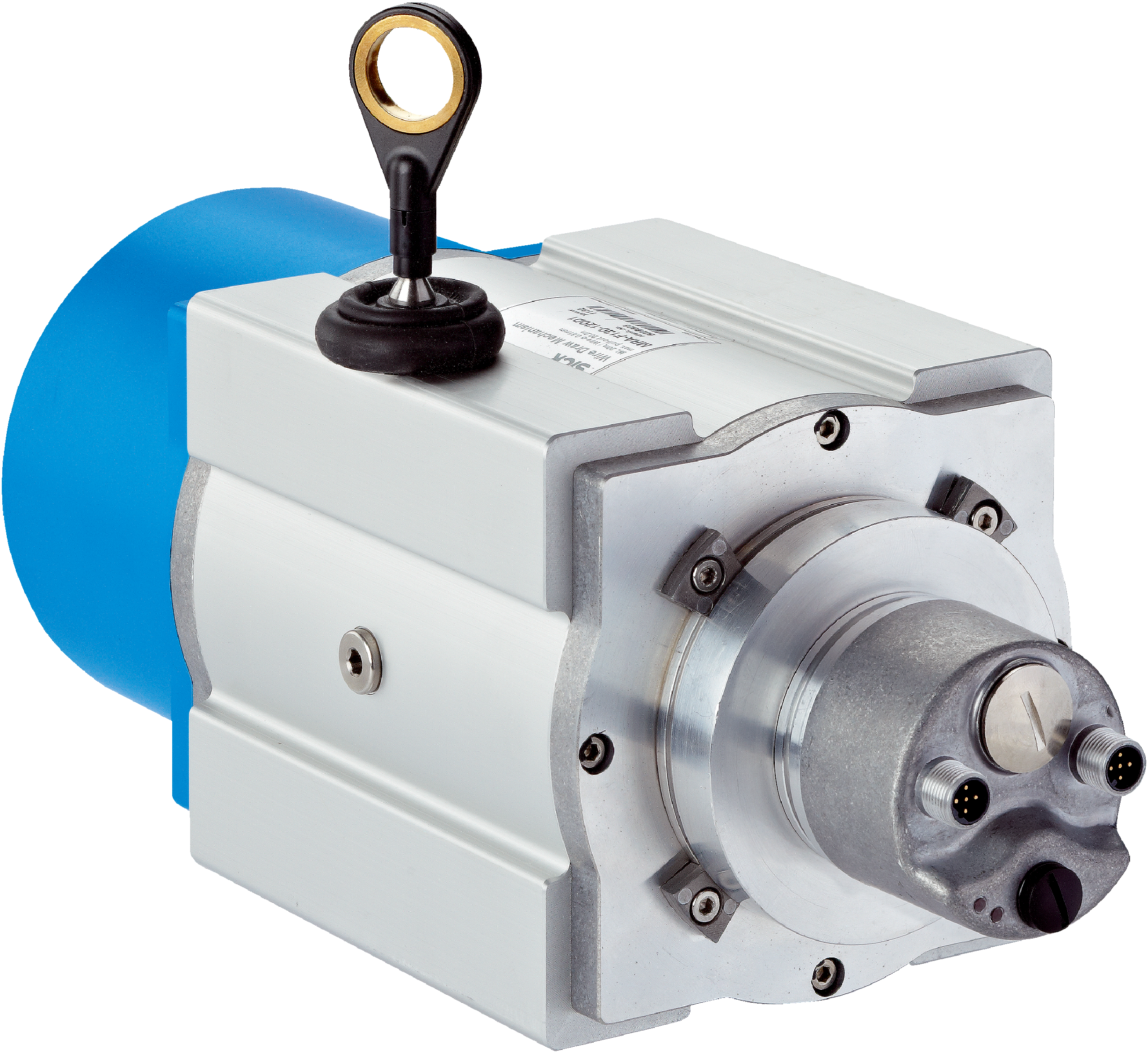

Wire draw encoders | HighLine | BTF08-A1MM0341 | Measuring range: 0 m ... 3 m | Communication interface: SSI | Supply voltage: 4.5 V DC ... 32 V DC | Connection type: Cable, 8-wire, universal, 5 m | Mounted encoder: AHM36 SSI, AHM36A-S3PM013X12, 1097369 | Mounted mechanic: MRA-F080-103D2, 6030125 | Programmable/configurable: yes
MTTFD(mean time to dangerous failure)
230 years (EN ISO 13849-1)1)
Measurement range
0 m ... 3 m
Encoder
Absolute encoders
Resolution (wire draw + encoder)
0.04 mm1)2)
Repeatability
≤ 1 mm3)
Linearity
≤ ± 2 mm3)
Hysteresis
≤ 2 mm3)
Communication interface
SSI
Programmable/configurable
✔
Connection type
Cable, 8-wire, universal, 5 m
Supply voltage
4.5 V DC ... 32 V DC
Power consumption
≤ 1.5 W (without load)
Weight
1.62 kg
Measuring wire material
Highly flexible stranded steel 1,4401 stainless steel V4A
Measuring wire diameter
1.35 mm
Weight (measuring wire)
7.1 g/m
Housing material, wire draw mechanism
Aluminum (anodized), aluminum die cast (nickel-plated)
Spring return force
6 N ... 14 N1)
Length of wire pulled out per revolution
200 mm
Life of wire draw mechanism
Typ. 1,000,000 cycles2)3)
Actual wire draw length
3.2 m
Wire acceleration
40 m/s²
Operating speed
8 m/s
Mounted encoder
AHM36 SSI, AHM36A-S3PM013X12, 1097369
Mounted mechanic
MRA-F080-103D2, 6030125
EMC
According to EN 61000-6-2 and EN 61000-6-3
Enclosure rating
IP64, mounted mechanicIP66, Encoder (IEC 60529)IP67, Encoder (IEC 60529)
Operating temperature range
–30 °C ... +70 °C
EU declaration of conformity
✔
UK declaration of conformity
✔
ACMA declaration of conformity
✔
Moroccan declaration of conformity
✔
China RoHS
✔
ECLASS 5.0
27270590
ECLASS 5.1.4
27270590
ECLASS 6.0
27270590
ECLASS 6.2
27270590
ECLASS 7.0
27270590
ECLASS 8.0
27270590
ECLASS 8.1
27270590
ECLASS 9.0
27270590
ECLASS 10.0
27270613
ECLASS 11.0
27270503
ECLASS 12.0
27270503
ETIM 5.0
EC001486
ETIM 6.0
EC001486
ETIM 7.0
EC001486
ETIM 8.0
EC001486
UNSPSC 16.0901
41112113
