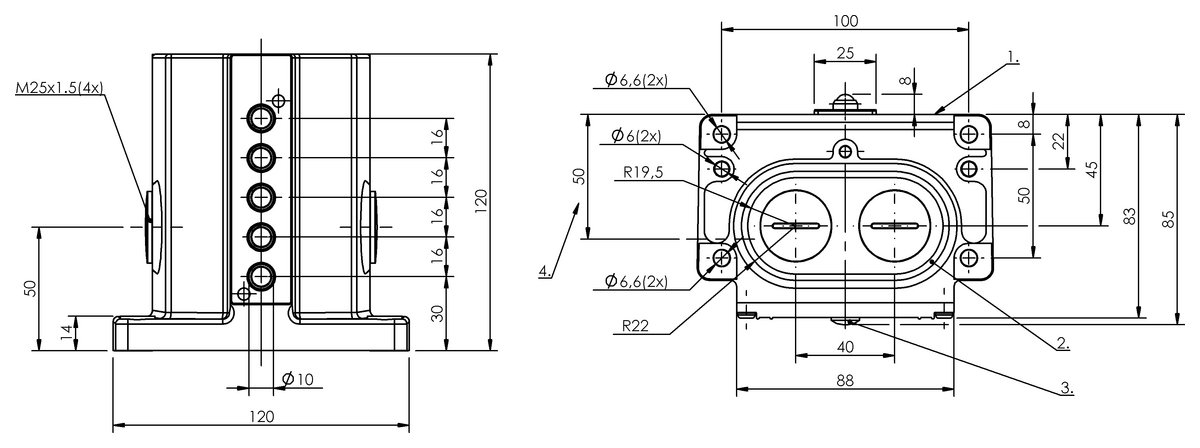

BNS0446 (BNS 819-D05-K16-100-10-FD) - Mechanical multiple position limit switches - Dimension: 120 x 120 x 85 mm, Housing material: Aluminium, Anodized, Number of switching positions: 5x Ball, Version: Snap contact, Operating principle: 1-5. Switch position: Mechanical, Continuous current: 1-5. Switch position: 6 A, Rated operating voltage Ue: 1-5. Switch position: 250 V AC, Installation: Vertical, Approach direction: longitudinal, parallel to attachment surface, Approach speed: 1-5. Switch position: 10 m/min, Switch position spacing: 16 mm, Connection type: 1-5. Switch position: Screw terminal, Ambient temperature: -5...85 °C, IP rating: IP67, Approval/Conformity: CCC, CE, CSA, WEEE
Manuals, CAD models, certificates and other materials are available on the manufacturer's website:
Open product page on manufacturer's website
