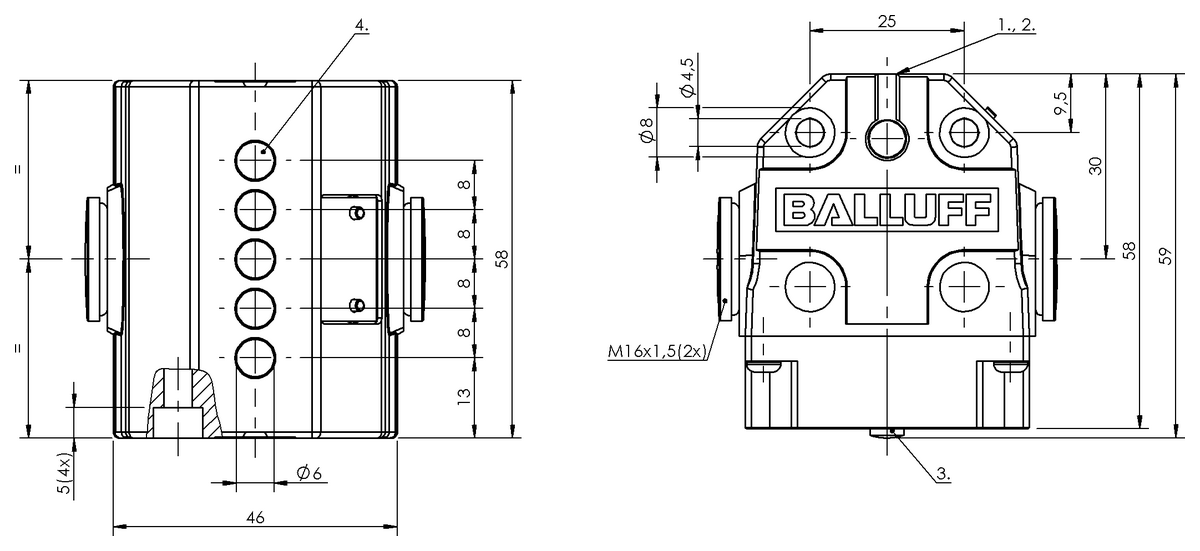

BNS03J2 (BNS 816-B05-TOB-08-650-11) - Inductive multiple position limit switches - List price Deutschland: 779,76 EUR - Dimension: 40 x 58 x 60 mm, Housing material: Aluminium, Anodized, Version: Inductive, Operating principle: 1-5. Switch position: Inductive, Range: 1.1 mm, Switching frequency: 1-5. Switch position: 500 Hz, Continuous current: 1-5. Switch position: 0.13 A, Rated operating voltage Ue: 1-5. Switch position: 24 V DC, Installation: Vertical, Switch position spacing: 8 mm, Connection type: 1-5. Switch position: Screw terminal, Ambient temperature: -25...70 °C, IP rating: IP67, Approval/Conformity: CE, UKCA, WEEE
Housing material
Aluminium, Anodized
Version
Inductive
Operating principle
1-5. Switch position: Inductive
Range
1.1 mm
Switching frequency
1-5. Switch position: 500 Hz
Continuous current
1-5. Switch position: 0.13 A
Rated operating voltage Ue
1-5. Switch position: 24 V DC
Installation
Vertical
Switch position spacing
8 mm
Connection type
1-5. Switch position: Screw terminal
Ambient temperature
-25...70 °C
IP rating
IP67
Approval/Conformity
CEUKCAWEEE
Manufacturer
Balluff GmbH
Declaration of Compliance
EU-Konformitätserklärung / EU Declaration of Conformity | (All languages)
Tariff Code
85371098
Substances of concern
Download
Disposal instructions
Download
