BNS 813-B03-D08-46-41-01

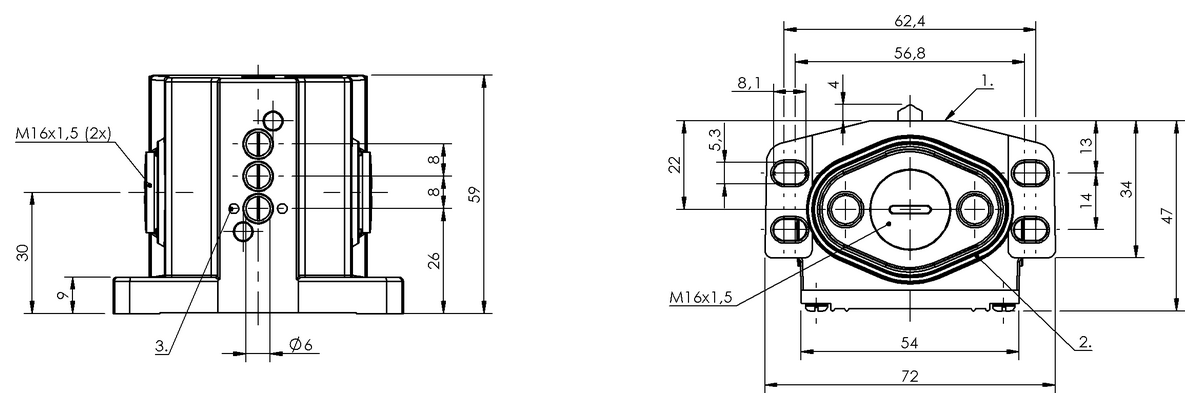

BNS03PZ (BNS 813-B03-D08-46-41-01) - Mechanical multiple position limit switches with positive opening - Dimension: 72 x 59 x 47 mm, Housing material: Aluminium, Anodized, Number of switching positions: 3x Chisel, Version: with forced opening, Operating principle: 1-3. Switch position: Mechanical, Continuous current: 1-3. Switch position: 5 A, Rated operating voltage Ue: 1-3. Switch position: 250 V AC, Installation: Vertical, Approach direction: longitudinal, parallel to attachment surface, Approach speed: 1-3. Switch position: 20 m/min, Switch position spacing: 8 mm, Connection type: 1-3. Switch position: Screw terminal, Ambient temperature: -5...85 °C, IP rating: IP67, Approval/Conformity: CE, CCC, WEEE
