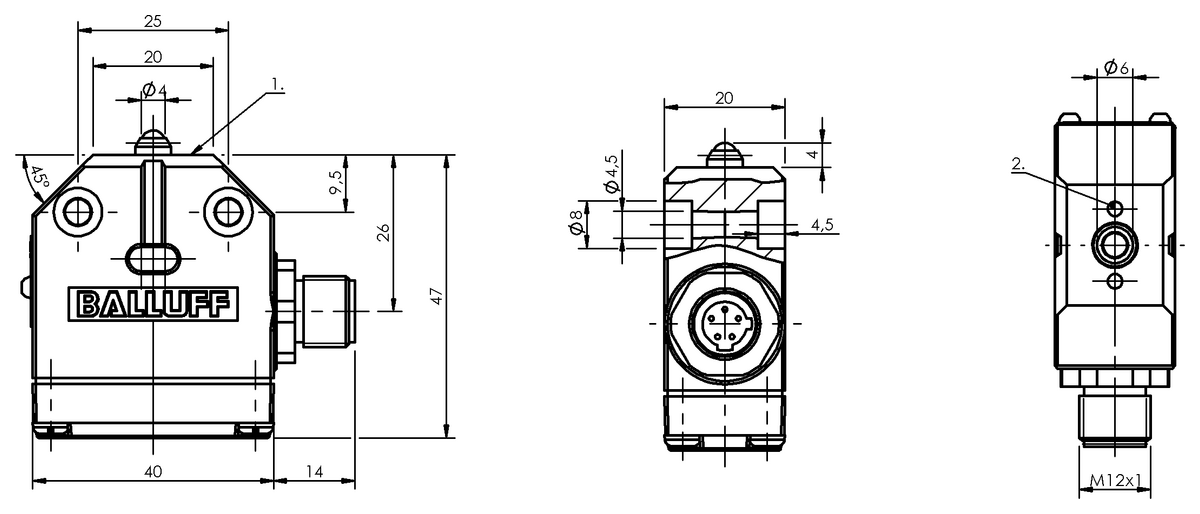

BNS03T2 (BNS 813-99-K-48-S80) - Mechanical single position limit switches with positive opening - Dimension: 40 x 20 x 47 mm, Housing material: Aluminium, Anodized, Number of switching positions: 1x Ball, Version: with forced opening, Operating principle: 1. Switch position: Mechanical, Continuous current: 1. Switch position: 4 A, Rated operating voltage Ue: 1. Switch position: 250 V AC, Approach direction: Vertical to mounting surface, Approach speed: 1. Switch position: 9 m/min, Connection type: 1. Switch position: Connector, Ambient temperature: -5...85 °C, IP rating: IP67, Approval/Conformity: CE, CCC, WEEE
Housing material
Aluminium, Anodized
Number of switching positions
1x Ball
Version
with forced opening
Operating principle
1. Switch position: Mechanical
Continuous current
1. Switch position: 4 A
Rated operating voltage Ue
1. Switch position: 250 V AC
Approach direction
Vertical to mounting surface
Approach speed
1. Switch position: 9 m/min
Connection type
1. Switch position: Connector
Ambient temperature
-5...85 °C
IP rating
IP67
Approval/Conformity
CECCCWEEE
Manufacturer
Balluff GmbH
Declaration of Compliance
EU-Konformitätserklärung / EU Declaration of Conformity (CE) | (All languages)
Tariff Code
85365080
Disposal instructions
Download
Manuals, CAD models, certificates and other materials are available on the manufacturer's website:
Open product page on manufacturer's website
