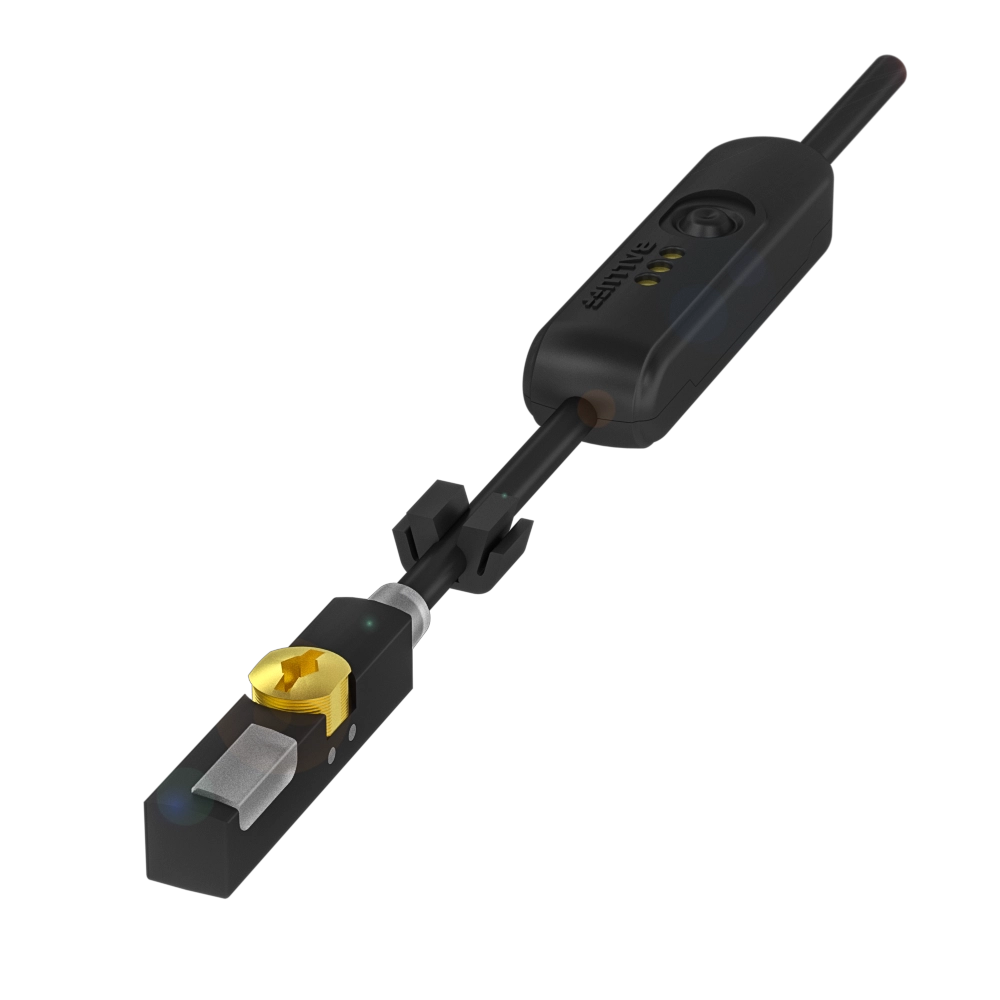

BMF00PW (BMF 235K-HMPS-C-3-P0-02) - Cylinder sensors for multiple slot shapes - List price Deutschland: 26,16 EUR - Slot type: T-slot, Dimension: 23.5 x 5 x 5.5 mm, Principle of operation: Magnetic field sensor, Cable: TPU, 2 m, Application: Pneumatic cylinder with T-slot. For dimensions, see sketch in product view., Mounting part: can be installed in T-slot from above, Housing material: PA 12, Switching output: PNP normally open (NO), Switching frequency: 3000 Hz, Operating voltage Ub: 10...30 VDC, Ambient temperature: -25...85 °C, IP rating: IP67, Approval/Conformity: cULus, CE, UKCA, WEEE
Slot type
T-slot
Principle of operation
Magnetic field sensor
Cable
TPU, 2 m
Application
Pneumatic cylinder with T-slot. For dimensions, see sketch in product view.
Mounting part
can be installed in T-slot from above
Housing material
PA 12
Switching output
PNP normally open (NO)
Switching frequency
3000 Hz
Operating voltage Ub
10...30 VDC
Ambient temperature
-25...85 °C
IP rating
IP67
Approval/Conformity
cULusCEUKCAWEEE
Manufacturer
Balluff GmbH
Declaration of Compliance
EU-Konformitätserklärung / EU Declaration of Conformity | (All languages)
Tariff Code
85365019
Substances of concern
Download
Disposal instructions
Download
Manuals, CAD models, certificates and other materials are available on the manufacturer's website:
Open product page on manufacturer's website
