Balluff
BES M08EI-PSY15B-S49G-D01
Remplacements recommandés:
Prix hors TVA
Demander un devis

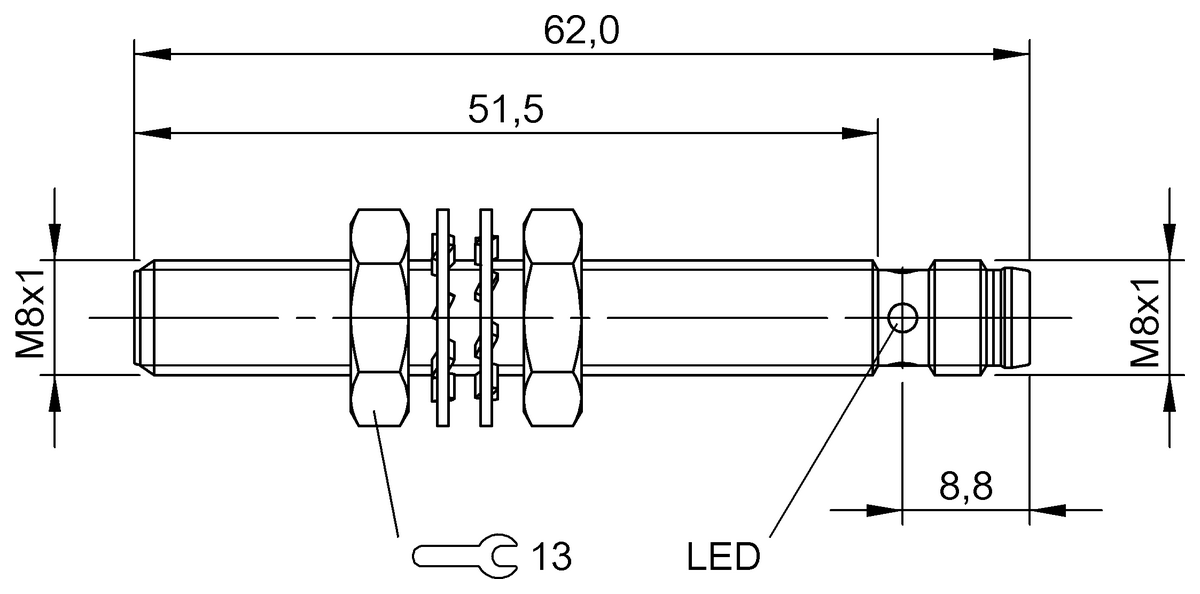

BES03EN (BES M08EI-PSY15B-S49G-D01) - Inductive proximity switches and proximity sensors - Dimension: Ø 8 x 62 mm, Style Housing: M8x1, Installation: for flush mounting, Range: 1.5 mm, Switching output: PNP normally open (NO), Switching frequency: 300 Hz, Housing material: Stainless steel, Material sensing surface: PBT, Connection: Connector, M8x1-Male, 3-pin, Operating voltage Ub: 18...30 VDC, Ambient temperature: -25...70 °C, IP rating: IP67, Approval/Conformity: CE, cULus, EAC
Style Housing
M8x1
Installation
for flush mounting
Range
1.5 mm
Switching output
PNP normally open (NO)
Switching frequency
300 Hz
Housing material
Stainless steel
Material sensing surface
PBT
Connection
Connector, M8x1-Male, 3-pin
Operating voltage Ub
18...30 VDC
Ambient temperature
-25...70 °C
IP rating
IP67
Approval/Conformity
CEcULusEAC
Manufacturer
Balluff GmbH
Declaration of Compliance
EU-Konformitätserklärung / EU Declaration of Conformity (CE) | (All languages)
Manual
BES MIT DSC | (German)
Tariff Code
85365019
