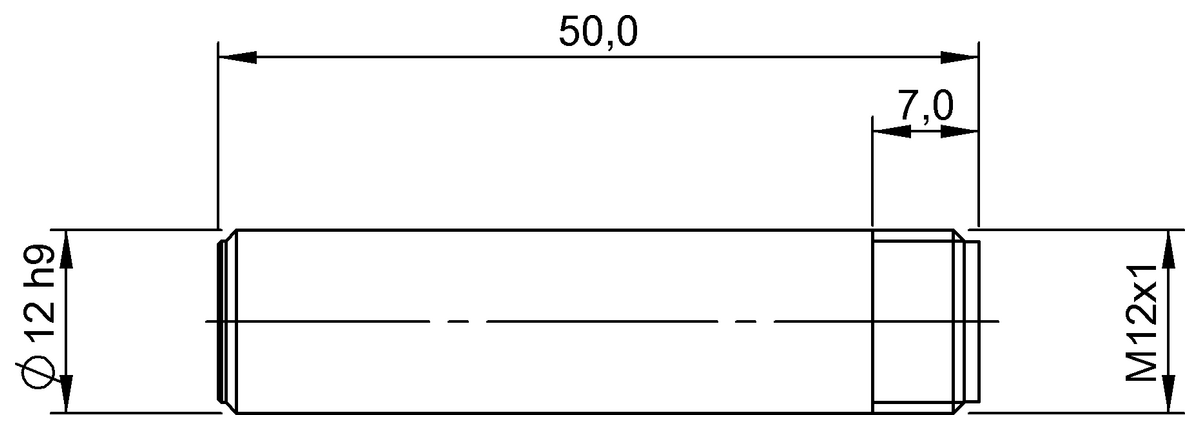

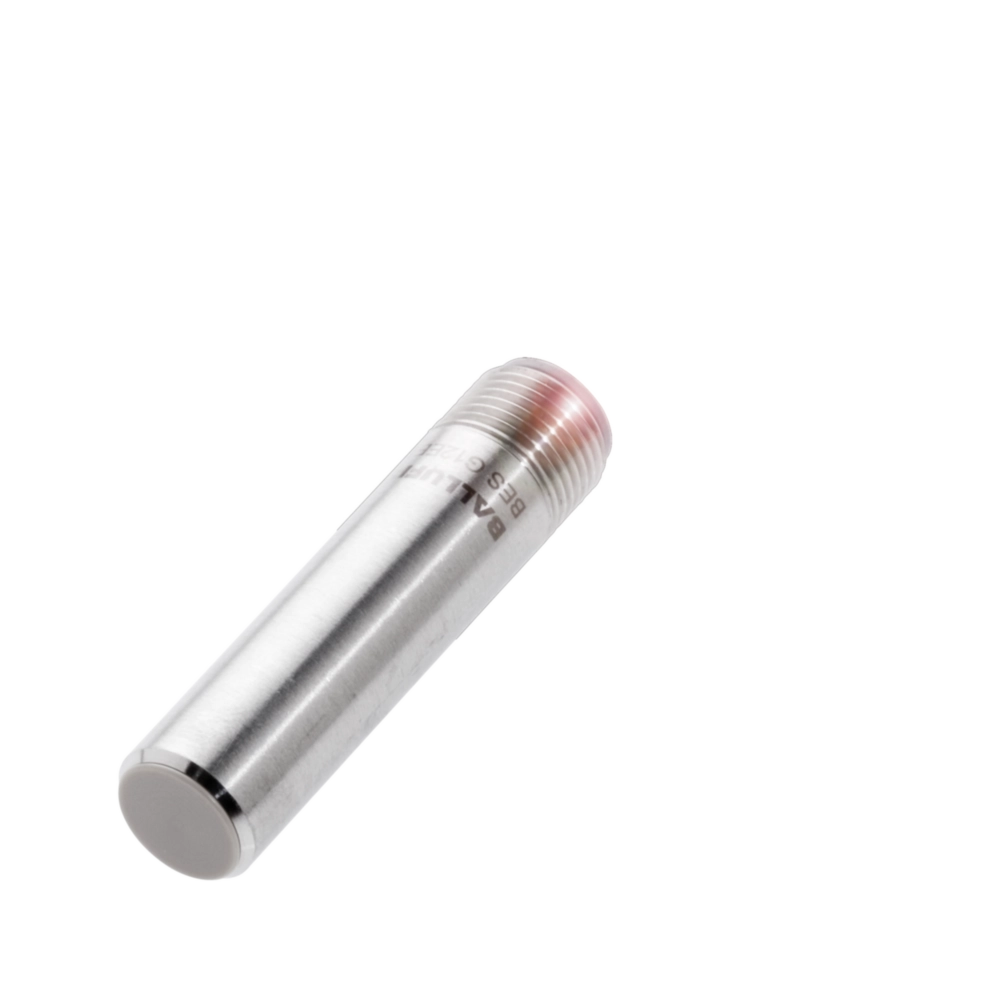

BES0430 (BES G12EE1-PSY20B-S04G-L02) - Inductive proximity switches and proximity sensors - Special characteristics: Washdown, Dimension: Ø 12 x 50 mm, Style Housing: D12.0, Installation: for flush mounting, Range: 2 mm, Switching output: PNP normally open (NO), Switching frequency: 800 Hz, Housing material: 1.4571 stainless steel, Material sensing surface: PEEK, Connection: Connector, M12x1-Male, 4-pin, Operating voltage Ub: 10...30 VDC, Ambient temperature: -40...105 °C, IP rating: IP68, according to BWN Pr. 27, Approval/Conformity: CE, cULus, Ecolab, FDA, EAC, WEEE
Special characteristics
Washdown
Style Housing
D12.0
Installation
for flush mounting
Range
2 mm
Switching output
PNP normally open (NO)
Switching frequency
800 Hz
Housing material
1.4571 stainless steel
Material sensing surface
PEEK
Connection
Connector, M12x1-Male, 4-pin
Operating voltage Ub
10...30 VDC
Ambient temperature
-40...105 °C
IP rating
IP68, according to BWN Pr. 27
Approval/Conformity
CEcULusEcolabFDAEACWEEE
Manufacturer
Balluff GmbH
Declaration of Compliance
EU-Konformitätserklärung / EU Declaration of Conformity | (All languages)
Tariff Code
85365019
Disposal instructions
Download
Manuals, CAD models, certificates and other materials are available on the manufacturer's website:
Open product page on manufacturer's website
