Balluff
BES 515-207-S21-E
Рекомендуемая замена:
Цена без НДС
Запросить цену

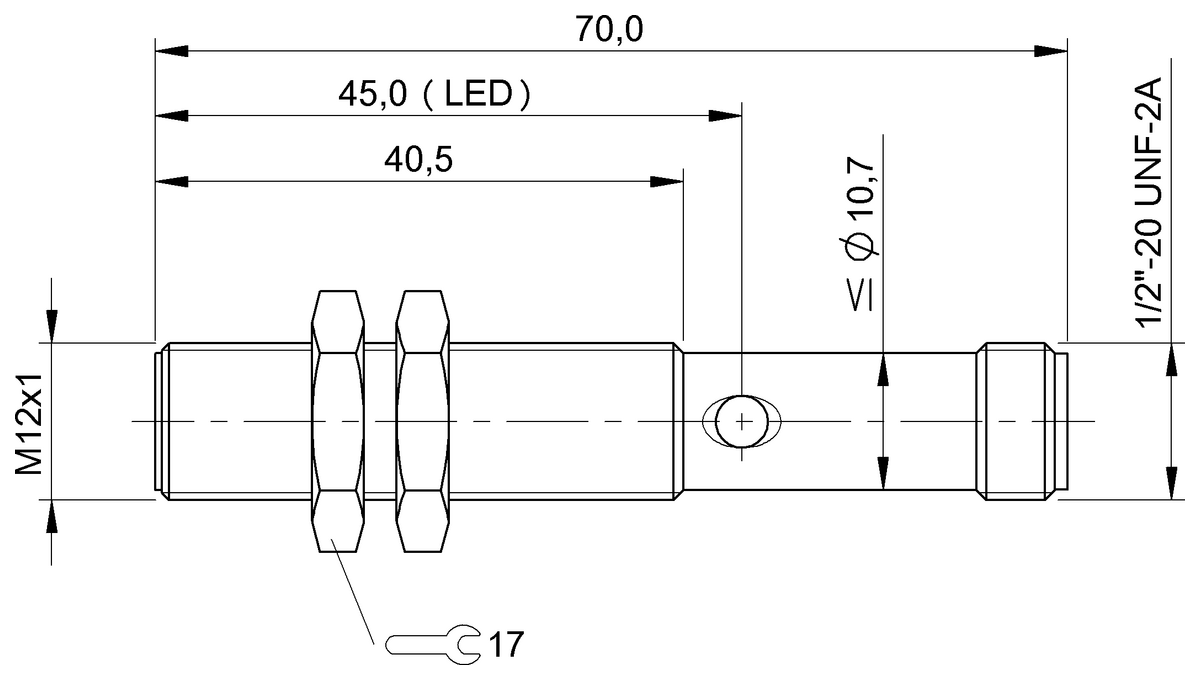

BES02E3 (BES 515-207-S21-E) - Inductive proximity switches and proximity sensors - Dimension: Ø 12 x 70 mm, Style Housing: M12x1, Installation: for flush mounting, Range: 2 mm, Switching output: normally open (NO), Switching frequency: 1000 Hz, Housing material: Stainless steel, Material sensing surface: PA 12, Connection: Connector, 1/2"-20 UNF-2A-Male, Operating voltage Ub: 20...250 VDC/20...250 VAC, Ambient temperature: -25...70 °C, IP rating: IP67, Approval/Conformity: CE, cULus, EAC, WEEE
Style Housing
M12x1
Installation
for flush mounting
Range
2 mm
Switching output
normally open (NO)
Switching frequency
1000 Hz
Housing material
Stainless steel
Material sensing surface
PA 12
Connection
Connector, 1/2"-20 UNF-2A-Male
Operating voltage Ub
20...250 VDC/20...250 VAC
Ambient temperature
-25...70 °C
IP rating
IP67
Approval/Conformity
CEcULusEACWEEE
Manufacturer
Balluff GmbH
Declaration of Compliance
EU-Konformitätserklärung / EU Declaration of Conformity | (All languages)
Tariff Code
85365019
Disposal instructions
Download
Инструкции, CAD-модели, сертификаты и другие материалы — на сайте производителя:
Открыть страницу товара на сайте производителя
