Mounting systems | Brackets | BEF-WNL01MPA | Description: Bracket for low mounting | Material: Stainless steel, brass | Details: Stainless steel V2A (bracket/mounting screw), Brass (fixing screw) | Usable for: MPA-107 mm ... 251 mm (sensor measuring range), 2 (recommended number of brackets), MPA-287 mm ... 431 mm (measuring range sensor), 3 (recommended number mounting brakets), MPA-467 mm ... 647 mm (measuring range sensor), 4 (recommended number mounting brakets), MPA-683 mm ... 791 mm (measuring range sensor), 5 (recommended number mounting brakets), MPA-827 mm ... 1007 mm (measuring range sensor), 6 (recommended number mounting brakets)
Accessory group
Mounting systems
Accessory family
Brackets
Description

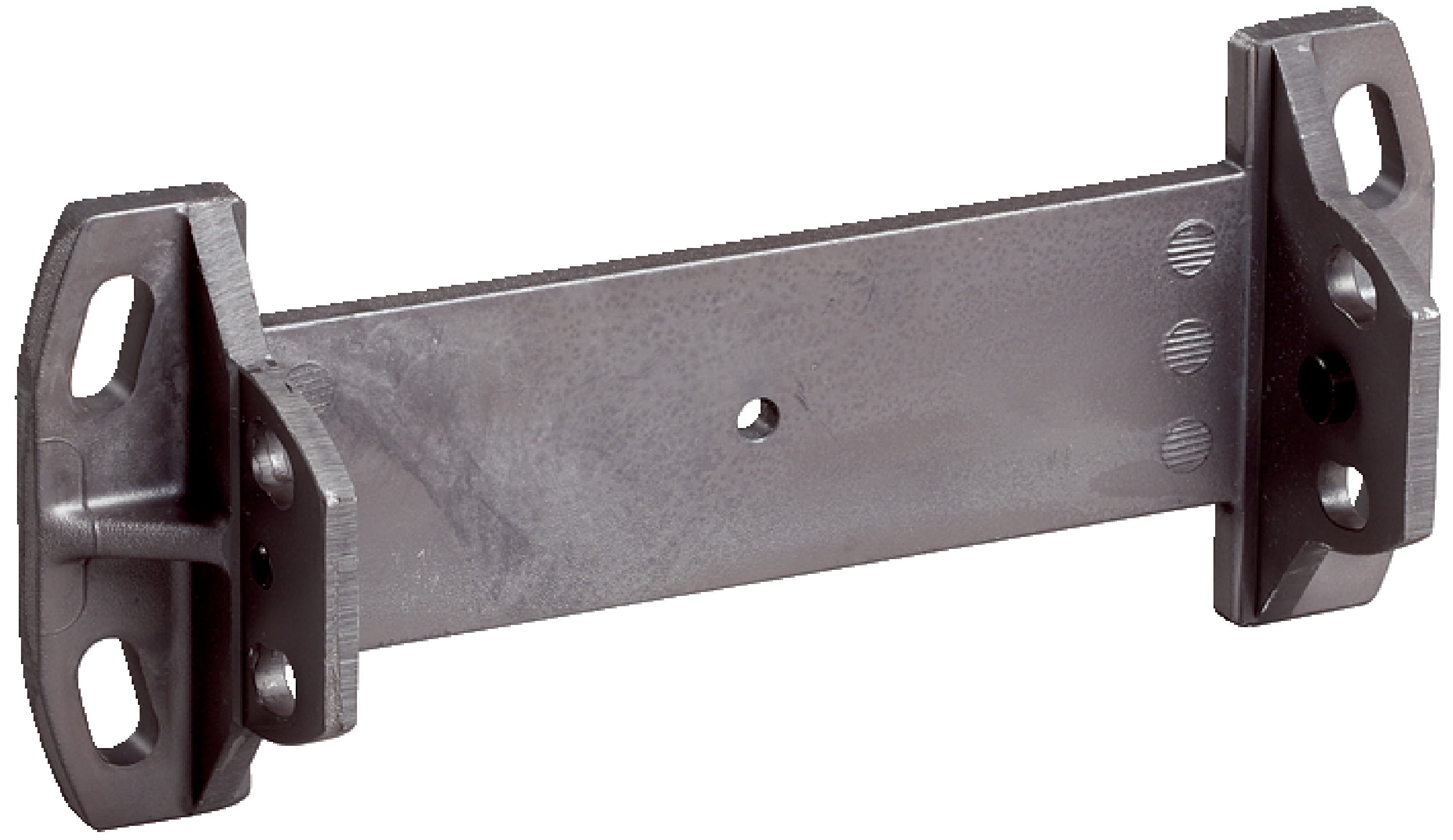

Bracket for low mounting
Material
Stainless steel V2A (bracket/mounting screw), Brass (fixing screw)
Usable for
MPA-107 mm ... 251 mm (sensor measuring range), 2 (recommended number of brackets)MPA-287 mm ... 431 mm (measuring range sensor), 3 (recommended number mounting brakets)MPA-467 mm ... 647 mm (measuring range sensor), 4 (recommended number mounting brakets)MPA-683 mm ... 791 mm (measuring range sensor), 5 (recommended number mounting brakets)MPA-827 mm ... 1007 mm (measuring range sensor), 6 (recommended number mounting brakets)
Mounting system type
Mounting bracket
ECLASS 5.0
27279202
ECLASS 5.1.4
27279202
ECLASS 6.0
27279202
ECLASS 6.2
27279202
ECLASS 7.0
27279202
ECLASS 8.0
27279202
ECLASS 8.1
27279202
ECLASS 9.0
27273701
ECLASS 10.0
27273701
ECLASS 11.0
27273701
ECLASS 12.0
27273701
ETIM 5.0
EC002615
ETIM 6.0
EC002615
ETIM 7.0
EC002615
ETIM 8.0
EC002615
UNSPSC 16.0901
32131023
