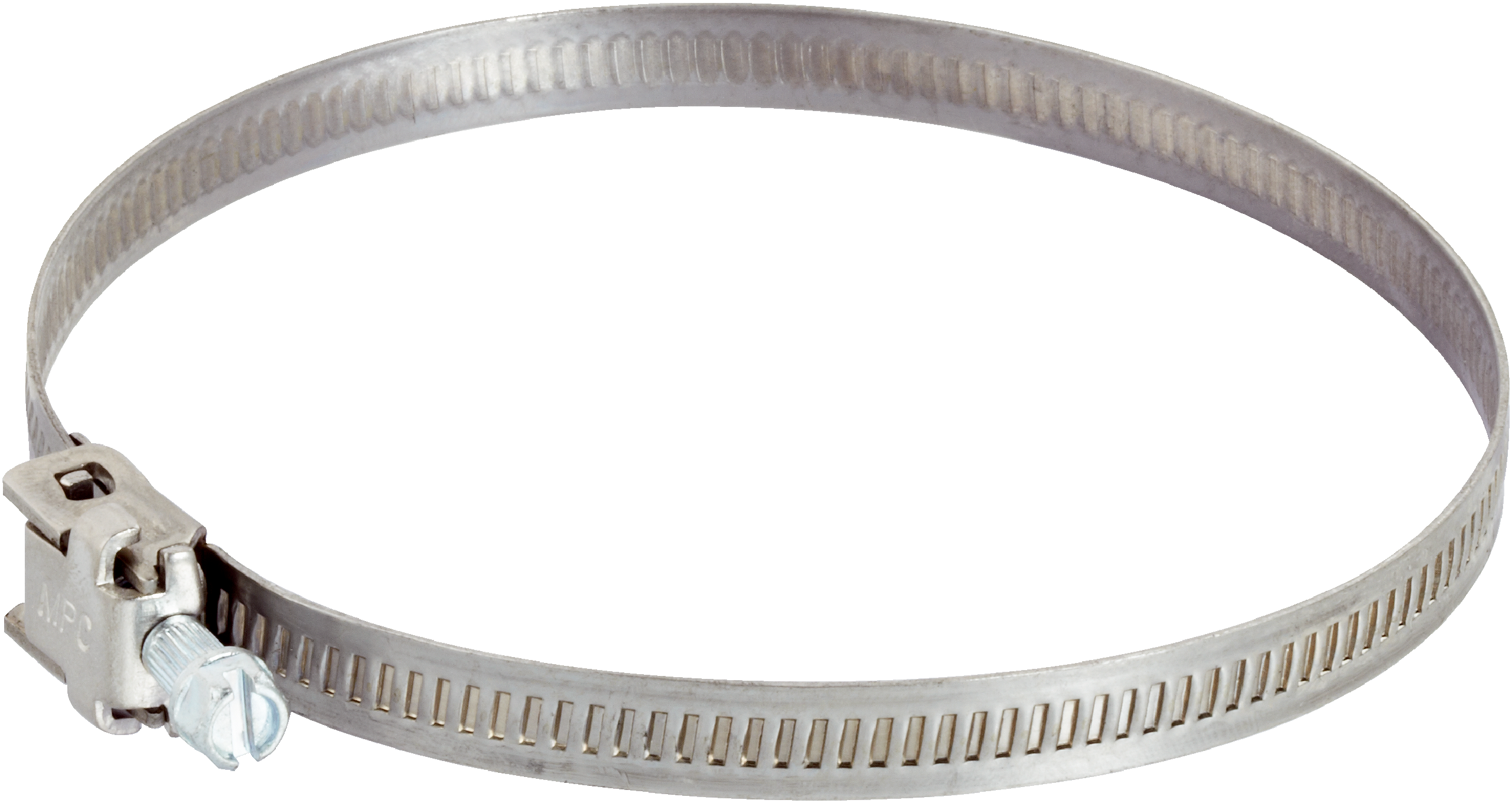

Mounting systems | Brackets | BEF-KHZR135MPA | Description: For round body cylinders with diameter up to 135 mm | Material: Stainless steel | Details: Stainless steel V2A | Usable for: MPA-107 mm ... 359 mm (measuring range sensor), 2 (recommended number brakets), MPA-395 mm ... 647 mm (measuring range sensor), 3 (recommended number brakets), MPA-683 mm ... 935 mm (measuring range sensor), 4 (recommended number brakets), MPA-971 mm ... 1,007 mm (measuring range sensor), 5 (recommended number brakets)
Accessory group
Mounting systems
Accessory family
Brackets
Description
For round body cylinders with diameter up to 135 mmMounting clip for round cylinder, clamping range 9.2 mm ... 10 mm, for piston rod diameter 8 mm
Material
Stainless steel V2A
Usable for
MPA-107 mm ... 359 mm (measuring range sensor), 2 (recommended number brakets)MPA-395 mm ... 647 mm (measuring range sensor), 3 (recommended number brakets)MPA-683 mm ... 935 mm (measuring range sensor), 4 (recommended number brakets)MPA-971 mm ... 1,007 mm (measuring range sensor), 5 (recommended number brakets)
Mounting system type
Strap
ECLASS 5.0
27279202
ECLASS 5.1.4
27279202
ECLASS 6.0
27279202
ECLASS 6.2
27279202
ECLASS 7.0
27279202
ECLASS 8.0
27279202
ECLASS 8.1
27279202
ECLASS 9.0
27273701
ECLASS 10.0
27273701
ECLASS 11.0
27273701
ECLASS 12.0
27273701
ETIM 5.0
EC002024
ETIM 6.0
EC002024
ETIM 7.0
EC002024
ETIM 8.0
EC002024
UNSPSC 16.0901
32131023
