BCC M474-0000-2D-000-53X4T2-000
Balluff

BCC M474-0000-2D-000-53X4T2-000

SKU: BCC0J3M Discontinued. Replacement available
Recommended replacement:
Price excluding VAT
Request a quote

Request a quote

    BCC0J3M (BCC M474-0000-2D-000-53X4T2-000) - Field attachables - Connection: M12x1-Male, straight, 4-pin, D-coded, Connection cross-section: 0.14...0.34 mm², Type of wire mounting: IDC, Cable diameter D: 5...8 mm, Operating voltage Ub: 250 VDC / 250 VAC, Rated current (40 °C): 4.0 A, IP rating: IP67, Ambient temperature: -25...85 °C

    Connection
    M12x1-Male, straight, 4-pin, D-coded
    Connection cross-section
    0.14...0.34 mm²
    Type of wire mounting
    IDC
    Cable diameter D
    5...8 mm
    Operating voltage Ub
    250 VDC / 250 VAC
    Rated current (40 °C)
    4.0 A
    IP rating
    IP67
    Ambient temperature
    -25...85 °C
    Manufacturer
    Balluff GmbH
    Taric code
    85366990

    Manuals, CAD models, certificates and other materials are available on the manufacturer's website:

    Open product page on manufacturer's website

    Related Products

    BCC M333-0000-10-000-34X325-000
    BCC M333-0000-10-000-34X325-000
    BCC06YW

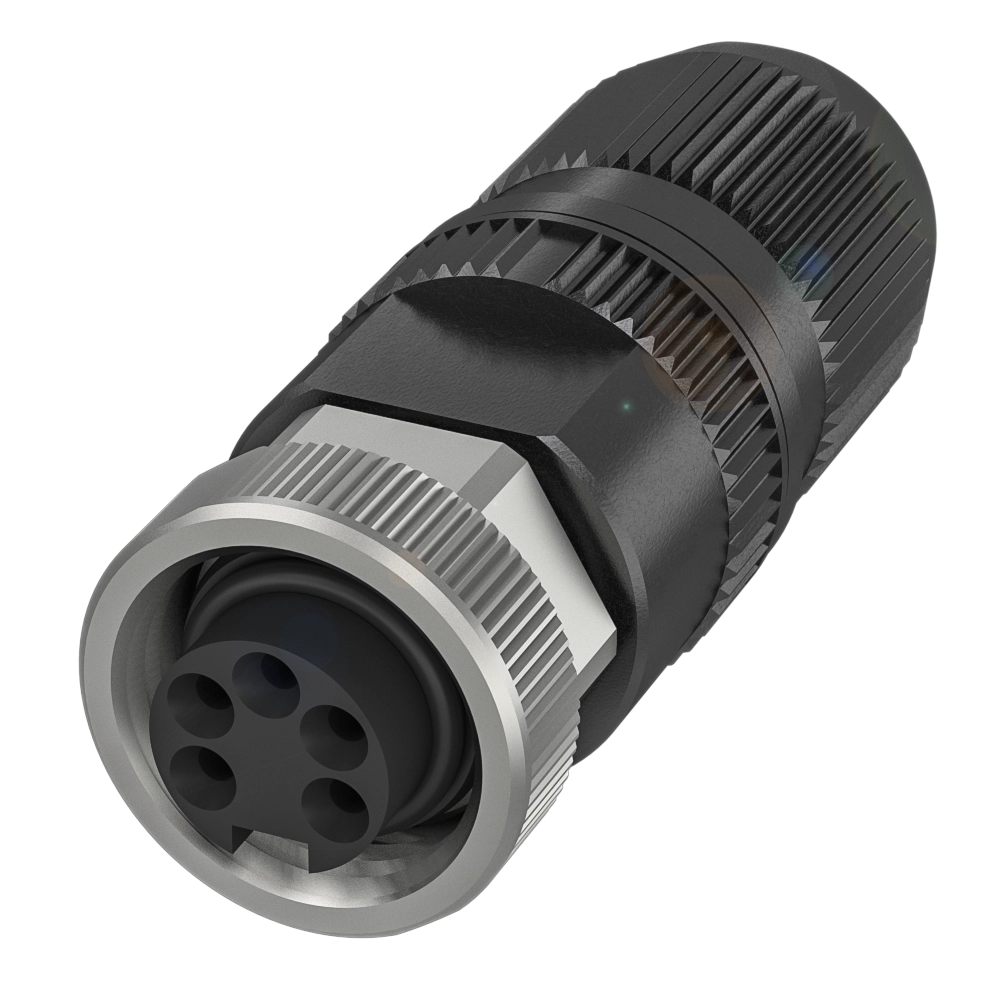

    BCC A335-0000-10-000-G3X5A5-000
