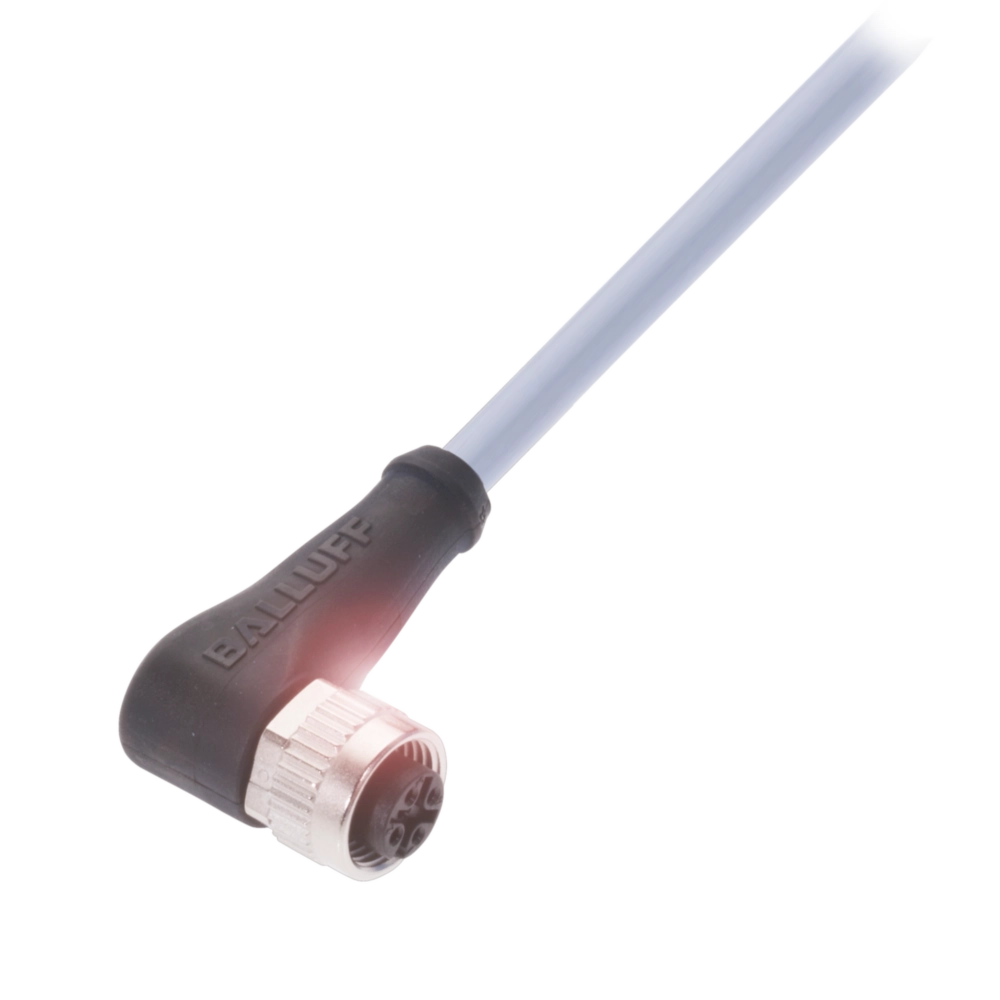

BCC06RC (BCC M425-0000-1A-001-VX8334-011-C001) - Single-ended cordsets - List price Deutschland: 9,72 EUR - Connection: M12x1-Female, angled, 5-pin, A-coded, Cable: PVC gray, 1.1 m, drag chain compatible, Number of conductors: 3, Conductor cross-section: 0.34 mm², Cable temperature, fixed routing: -40...105 °C, Cable temperature, flexible routing: -5...105 °C, Operating voltage Ub: 250 VDC / 250 VAC, Rated current (40 °C): 4.0 A, IP rating: IP67, IP68, IP69K, Approval/Conformity: cULus, WEEE
Connection
M12x1-Female, angled, 5-pin, A-coded
Cable
PVC gray, 1.1 m, drag chain compatible
Number of conductors
3
Conductor cross-section
0.34 mm²
Cable temperature, fixed routing
-40...105 °C
Cable temperature, flexible routing
-5...105 °C
Operating voltage Ub
250 VDC / 250 VAC
Rated current (40 °C)
4.0 A
IP rating
IP67, IP68, IP69K
Approval/Conformity
cULusWEEE
Manufacturer
Balluff GmbH
Taric code
85444290
