Balluff
BCC M415-0000-1A-003-PX0434-025-C015
Рекомендуемые замены:
Цена без НДС
Запросить цену
BCC0C12 (BCC M415-0000-1A-003-PX0434-025-C015) - Single-ended cordsets - List price Deutschland: 11,97 EUR - Connection: M12x1-Female, straight, 5-pin, A-coded, Switching output: Complementary, Cable: PUR black, 2.5 m, drag chain compatible, Number of conductors: 4, Conductor cross-section: 0.34 mm², Cable temperature, fixed routing: -50...90 °C, Cable temperature, flexible routing: -25...90 °C, Operating voltage Ub: 250 VDC / 250 VAC, Rated current (40 °C): 4.0 A, IP rating: IP67, IP68, IP69K, Approval/Conformity: CE, cULus, WEEE
Connection

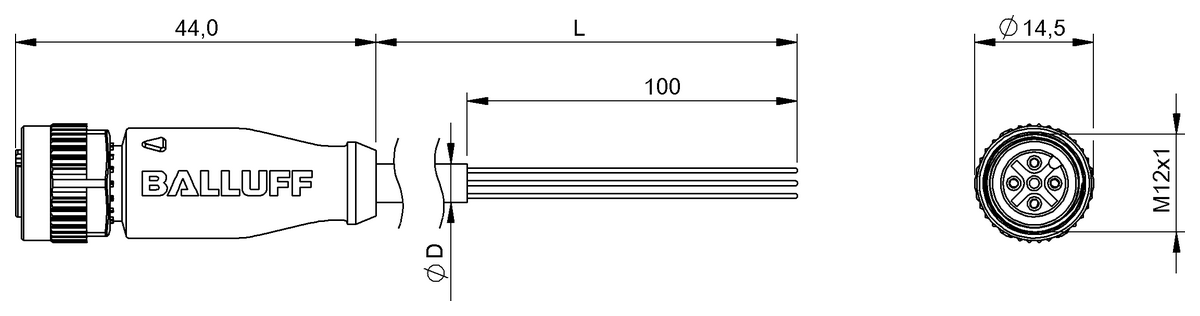

M12x1-Female, straight, 5-pin, A-coded
Switching output
Complementary
Cable
PUR black, 2.5 m, drag chain compatible
Number of conductors
4
Conductor cross-section
0.34 mm²
Cable temperature, fixed routing
-50...90 °C
Cable temperature, flexible routing
-25...90 °C
Operating voltage Ub
250 VDC / 250 VAC
Rated current (40 °C)
4.0 A
IP rating
IP67, IP68, IP69K
Approval/Conformity
CEcULusWEEE
Manufacturer
Balluff GmbH
Declaration of Compliance
EU-Konformitätserklärung / EU Declaration of Conformity (CE) | (All languages)
Taric code
85444290
Disposal instructions
Download
