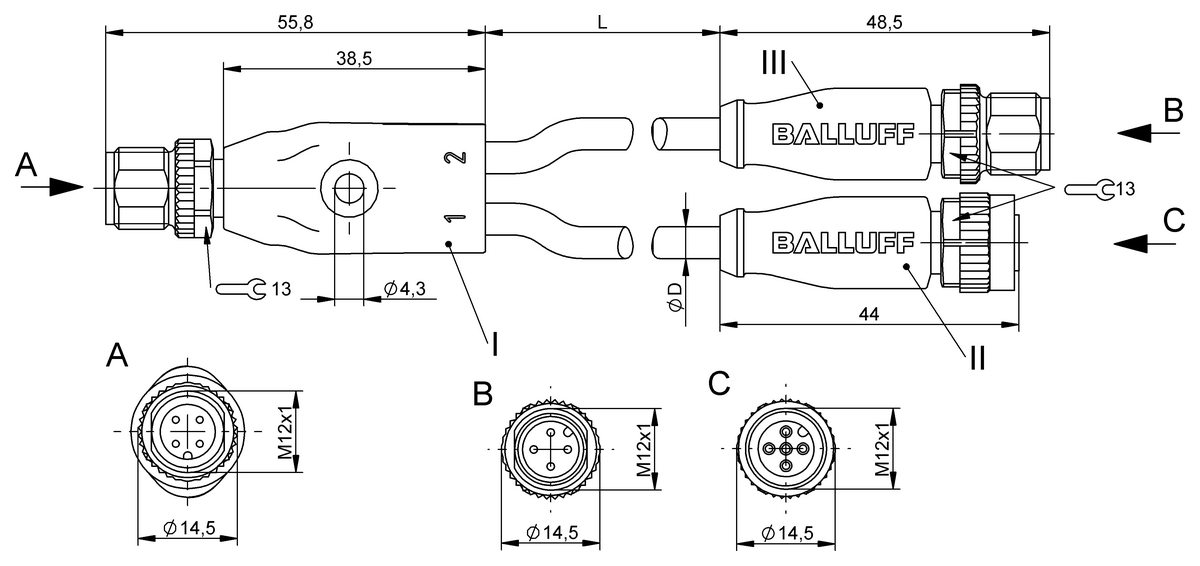

BCC0CFJ (BCC M414-M415-M414-U2037-003) - Y-splitters - Connection 1: M12x1-Male, straight, 4-pin, A-coded, Connection 2: M12x1-Female, straight, 5-pin, A-coded, Connection 3: M12x1-Male, straight, 4-pin, A-coded, Operating voltage Ub: 30 VDC / 30 VAC, Cable: TPE Yellow, 0.3 m, Rated current (40 °C): 2.0 A, Cable temperature, fixed routing: -50...105 °C, Cable temperature, flexible routing: -25...105 °C, IP rating: IP67, IP68, IP69K/IP67, IP68, IP69K, Approval/Conformity: CE, EAC, WEEE
Connection 1
M12x1-Male, straight, 4-pin, A-coded
Connection 2
M12x1-Female, straight, 5-pin, A-coded
Connection 3
M12x1-Male, straight, 4-pin, A-coded
Operating voltage Ub
30 VDC / 30 VAC
Cable
TPE Yellow, 0.3 m
Rated current (40 °C)
2.0 A
Cable temperature, fixed routing
-50...105 °C
Cable temperature, flexible routing
-25...105 °C
IP rating
IP67, IP68, IP69K/IP67, IP68, IP69K
Approval/Conformity
CEEACWEEE
Manufacturer
Balluff GmbH
Declaration of Compliance
EU-Konformitätserklärung / EU Declaration of Conformity (CE) | (All languages)
Taric code
85444290
Disposal instructions
Download
Manuals, CAD models, certificates and other materials are available on the manufacturer's website:
Open product page on manufacturer's website
