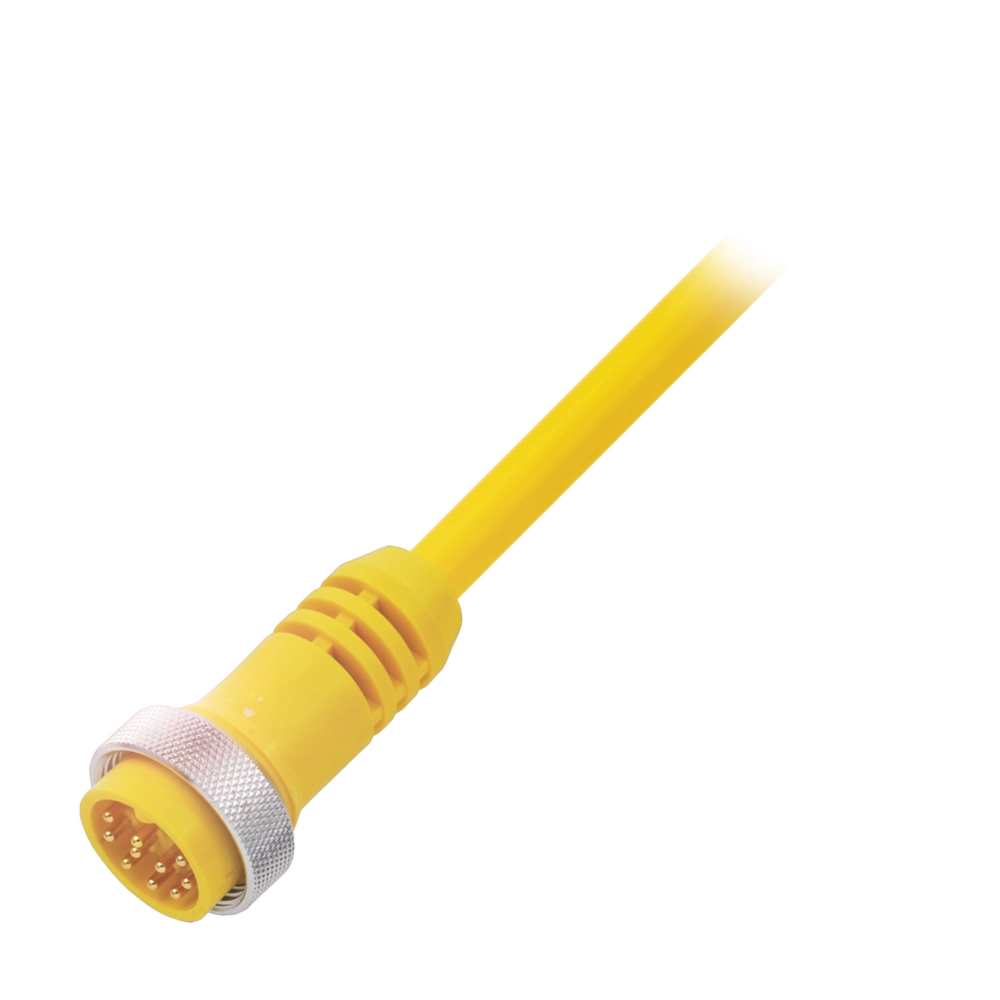

BCC0A4M (BCC A519-0000-C0-088-VX49W8-050) - Single-ended cordsets - Connection: 1 1/8"-Male, straight, 9-pin, Cable: PVC Yellow, 5.00 m, Number of conductors: 9, Conductor cross-section: 18 AWG, Cable temperature, fixed routing: -40...105 °C, Operating voltage Ub: 300 VDC / 300 VAC, Rated current (40 °C): 4.0 A, IP rating: IP67, Approval/Conformity: cULus, EAC, WEEE
Connection

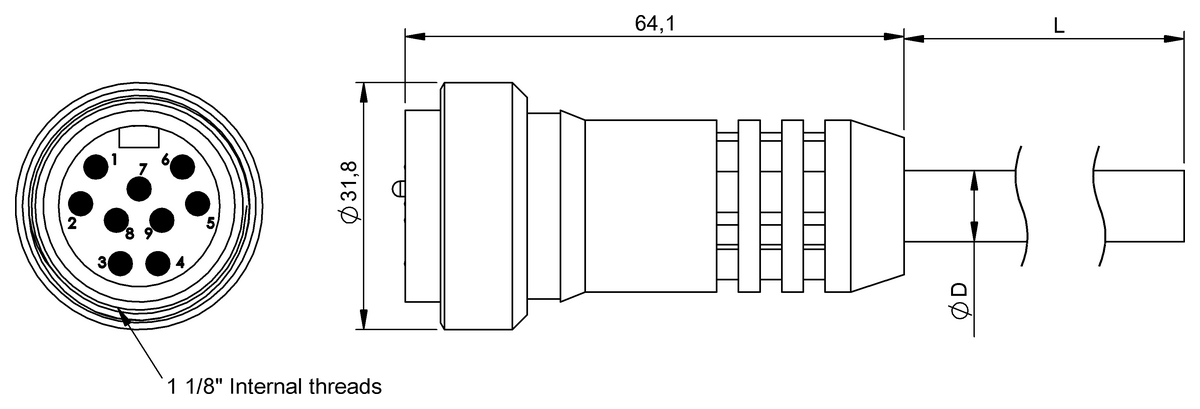

1 1/8"-Male, straight, 9-pin
Cable
PVC Yellow, 5.00 m
Number of conductors
9
Conductor cross-section
18 AWG
Cable temperature, fixed routing
-40...105 °C
Operating voltage Ub
300 VDC / 300 VAC
Rated current (40 °C)
4.0 A
IP rating
IP67
Approval/Conformity
cULusEACWEEE
Manufacturer
Balluff GmbH
Taric code
85444290
Disposal instructions
Download
