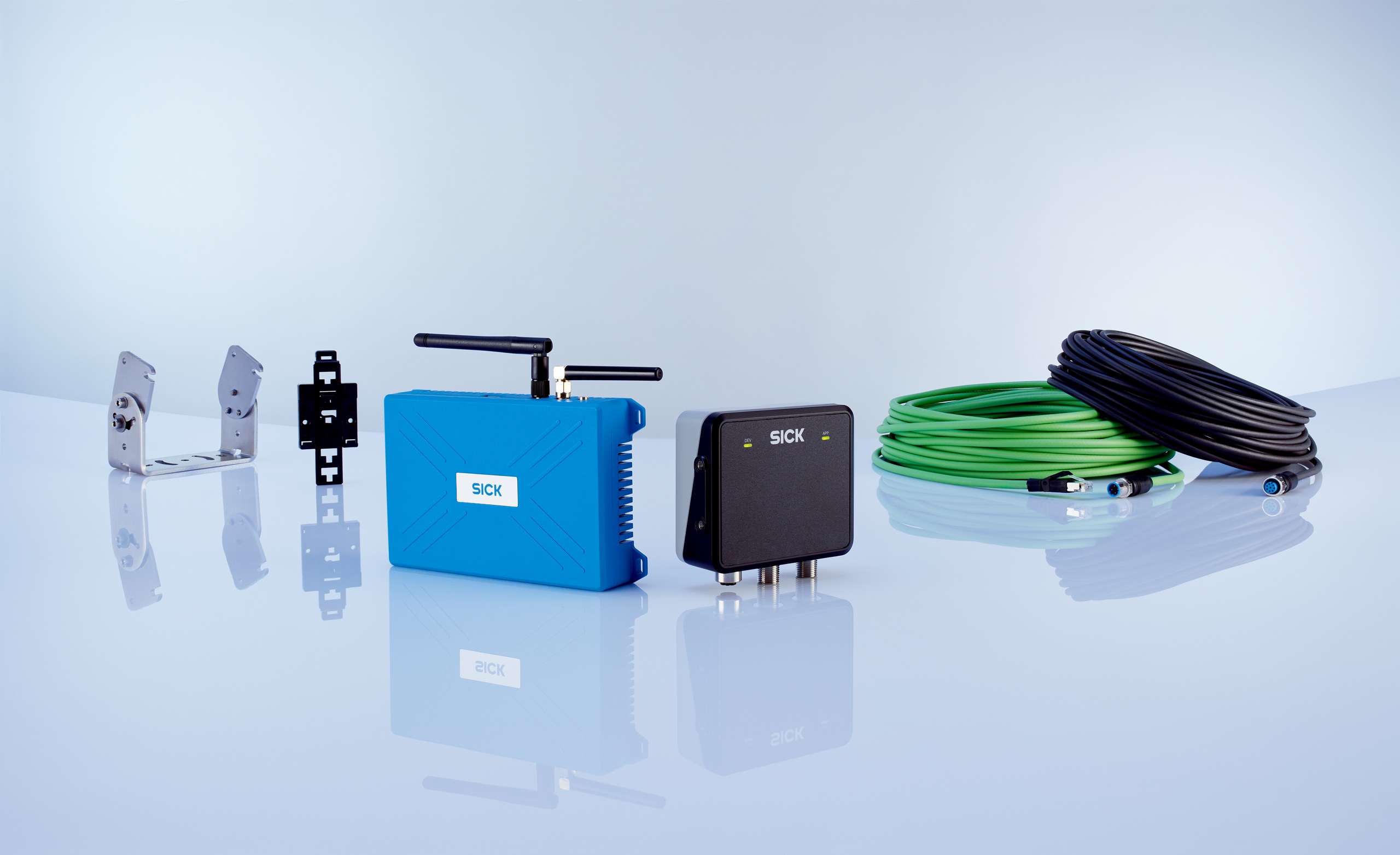

Object detection systems | AOS Radar | AOS2001-JC WWD | Version: Japan | Items supplied: RMS2000 radar sensor, Telematic Data Collector, TEMS-based “Wrong Way Driver” software on the Telematic Data Collector, Mounting bracket, Connecting cables, Mounting rail bracket, System documentation and interface description, Quick Start guide including download link for the operating instructions
Sensor
RMS2000
Aperture angle
± 4°, vertical± 60°, Horizontal (can be adapted)
Scanning range
5 m ... 150 m
Version
Japan
Housing dimensions (W x D x H)
34 mm x 97 mm x 96 mm (RMS2000)162 mm x 32 mm x 101 mm (TDC-E)
Supply voltage
24 V (9 V ... 32 V)
Installation position
Above or next to the lane (0.4 m ... 5 m)
Enclosure rating
IP671)IP20 (according to DIN EN 60529)2)
Driving speed
10 km/h ... 200 km/h
Detection accuracy
Very precise (100% is excluded)
False positives
Location-dependent
I/O
6 analog inputs (configurable, current and voltage), 6 digital inputs/outputs (configurable), 2 additional digital inputs, 2 additional digital outputs1)
Electrical connection
RJ45
Data transmission rate
≤ 65 Mbit/s, single band 2.4 GHz
Protocol
IEEE 802.11 b/g/n
Output data
TimeLane assignmentTrajectoryDriving directionSpeedValidity statusWrong way driver alarm via I/Os, TCP/IP, mobile communications or MQTT
Items supplied
RMS2000 radar sensorTelematic Data CollectorTEMS-based “Wrong Way Driver” software on the Telematic Data CollectorMounting bracketConnecting cablesMounting rail bracketSystem documentation and interface descriptionQuick Start guide including download link for the operating instructions
ECLASS 5.0
27280801
ECLASS 5.1.4
27280801
ECLASS 6.0
27280890
ECLASS 6.2
27280890
ECLASS 7.0
27280890
ECLASS 8.0
27280890
ECLASS 8.1
27280890
ECLASS 9.0
27280890
ECLASS 10.0
27280890
ECLASS 11.0
27280890
ECLASS 12.0
27280890
