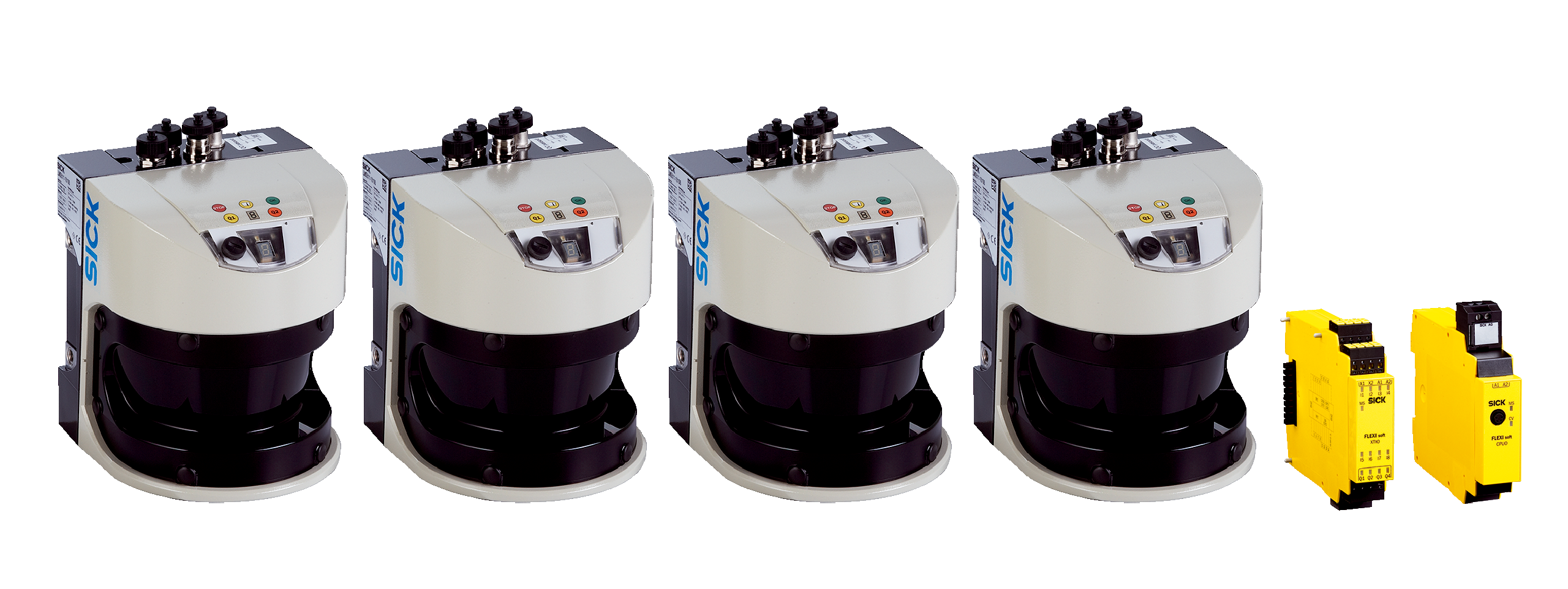

Object detection systems | AOS LiDAR | AOS103 | Control configuration: Area monitoring and collision avoidance | Items supplied: LMS111-10100S01 (3 x), Flexi Soft main module FX3-CPU000000, Flexi Soft system plug FX3-MPL000001, Flexi Soft I/O module FX3-XTIO84002 (2 x), USB configuration cable, USB stick with configuration files, Connection box LMS1xx (3x), Mounting kit for LMS1xx (3x), Ethernet connection cable
Sensor
LMS111-10100S01
Number of sensors
3
Aperture angle
270°
Max. range with 10 % reflectivity
18 m
Version
Standard
Housing dimensions (W x D x H)
105 mm x 102 mm x 162 mm (sensor)67.5 mm x 96.5 mm x 120.6 mm (control with three modules, 22.5 mm each)
Weight
1.1 kg, Per LMS, without connection box
Supply voltage
24 V DC1)
Power consumption
8 W, Per LMS111 (+ heating 35 W, per LMS)6.9 W, Flexi Soft with 2 x I/O module (without load)
Fixing
Mounting kit (sensor), Mounting rail (control)
Enclosure rating
IP65/ IP672)IP203)
Number of laserscanners
3
Response time
240 ms
Configuration interface
Ethernet (sensor), USB (control)
Output data
Alarm via control signalWarning field intrusion, stop field intrusionSystem test errorContamination warning
Ambient operating temperature
–30 °C ... +50 °C, Sensor–25 °C ... +55 °C, Control
Ambient temperature, storage
–30 °C ... +70 °C1)–25 °C ... +70 °C2)
Ambient light immunity
40,000 lx
Standard
IEC 60068-2-6:2007-12
Shock resistance
IEC 60068-2-27:2008-03
Items supplied
LMS111-10100S01 (3 x)Flexi Soft main module FX3-CPU000000Flexi Soft system plug FX3-MPL000001Flexi Soft I/O module FX3-XTIO84002 (2 x)USB configuration cableUSB stick with configuration filesConnection box LMS1xx (3x)Mounting kit for LMS1xx (3x)Ethernet connection cable
Note on use
The AOS LiDAR object detection system is not a safety device for human protection and it therefore does not comply with any safety standards. For safety applications,please contact SICK AG.
EU declaration of conformity
✔
UK declaration of conformity
✔
China RoHS
✔
ECLASS 5.1.4
27280190
ECLASS 6.0
27280190
ECLASS 7.0
27280190
ECLASS 8.0
27280190
ECLASS 9.0
27280190
ECLASS 10.0
27280190
ECLASS 11.0
27280190
ECLASS 12.0
27280190
ECLASS 13.0
27280190
ECLASS 14.0
27280190
ECLASS 15.0
27280190
ETIM 6.0
EC002550
ETIM 7.0
EC002550
ETIM 8.0
EC002550
ETIM 9.0
EC002550
ETIM 10.0
EC002550
UNSPSC 091201.0
43211701
UNSPSC 100501.0
43211701
UNSPSC 111201.0
43211701
UNSPSC 120901.0
43211701
UNSPSC 131201.0
43211701
UNSPSC 140801.0
43211701
UNSPSC 151101.0
43211701
UNSPSC 160901.0
43211701
UNSPSC 171001.0
43211701
UNSPSC 180801.0
43211701
UNSPSC 190501.0
43211701
UNSPSC 200601.0
43211701
UNSPSC 210901.0
43211701
UNSPSC 220601.0
43211701
UNSPSC 230701.0
43211701
UNSPSC 240301.0
43211701
UNSPSC 250901.0
43211701
UNSPSC 260801.0
43211701
