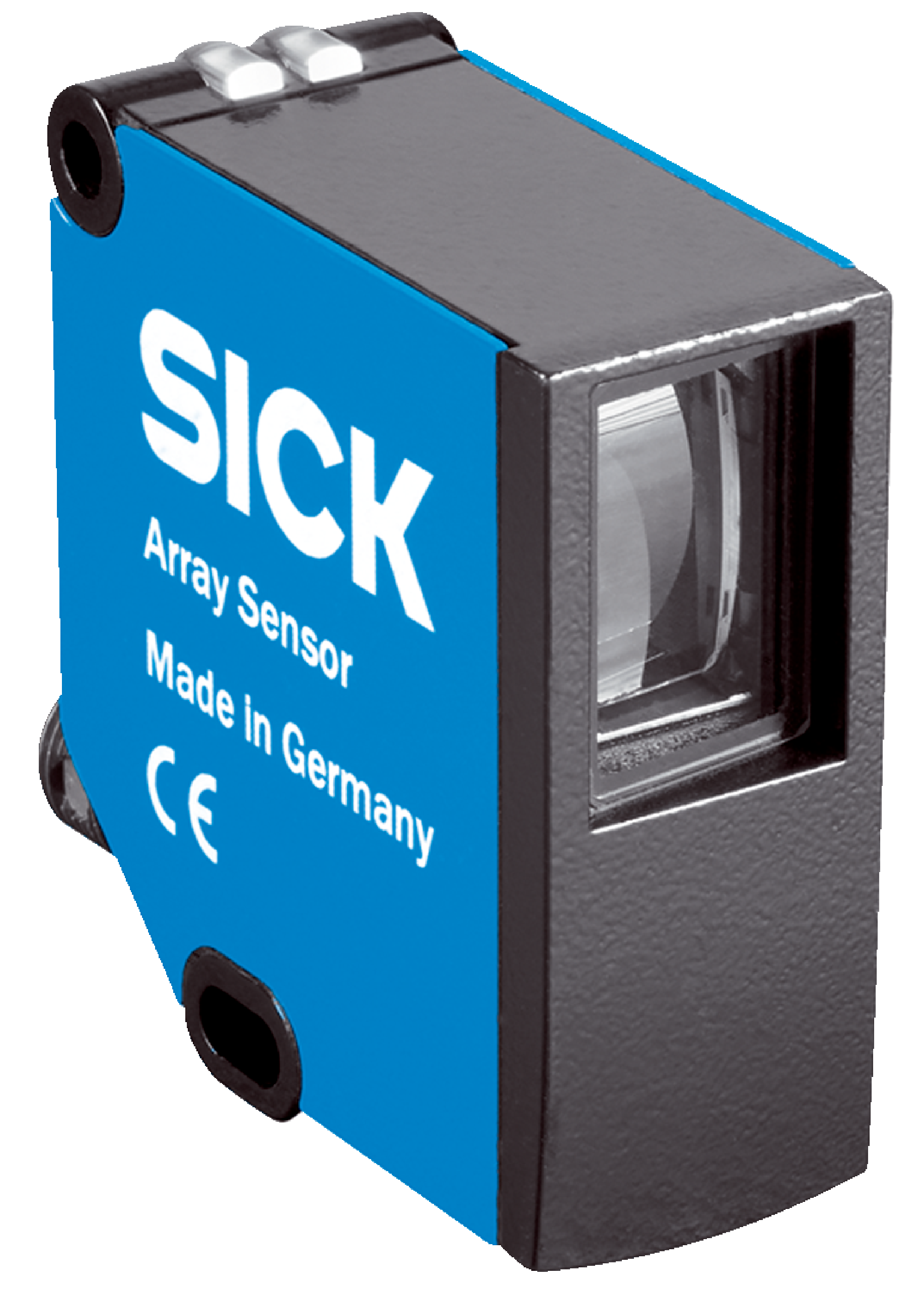

Array sensors | Ax20 | AL20E-PM114S10 | Functional principle: Edge detection, reflector | Light source: LED | Switching output: PNP | Connection type Detail: Male connector M12, 5-pin | Repeatability: 0.03 mm | Analog output: 4 mA ... 20 mA
Functional principle
Edge detection, reflector
Dimensions (W x H x D)
24.3 mm x 59.8 mm x 54.1 mm
Sensing distance
≤ 25 mm
Housing design
Rectangular
Working range
20 mm ... 30 mm
Measurement range
20 mm
Minimum detectable object (MDO)
0.8 mm
Light source
LED, White
Wave length
400 nm ... 700 nm
Light spot size
30 mm x 5 mm
Repeatability
0.03 mm1)
Linearity
± 2 %2)
Supply voltage
≤ 24 V DC1)
Ripple
≤ 5 V2)
Power consumption
< 3.1 W3)
Switching output
PNP
Switching output (voltage)
PNP: HIGH = UV≤ 2 V / LOW approx. 0 V
Analog output
4 mA ... 20 mA
Resolution of analog output
12 bit
Output rate of analog output
1 ms
Output current Imax.
< 100 mA
Initialization time
0.48 s4)
Connection type
Male connector M12, 5-pin
Protection class
III
Circuit protection
UVconnections, reverse polarity protectedOutput Q short-circuit protectedInterference pulse suppression
Enclosure rating
IP67
Вес
135 g
Housing material
Metal, metal
Ambient operating temperature
–10 °C ... +55 °C
Ambient temperature, storage
–25 °C ... +75 °C
Shock load
According to IEC 60068
UL File No.
NRKH.E181493 & NRKH7.E181493
ECLASS 5.0
27270906
ECLASS 5.1.4
27270906
ECLASS 6.0
27270906
ECLASS 6.2
27270906
ECLASS 7.0
27270906
ECLASS 8.0
27270906
ECLASS 8.1
27270906
ECLASS 9.0
27270906
ECLASS 10.0
27270906
ECLASS 11.0
27270906
ECLASS 12.0
27270906
ETIM 5.0
EC001820
ETIM 6.0
EC001820
ETIM 7.0
EC001820
ETIM 8.0
EC001820
UNSPSC 16.0901
39121528
